Wirewin CAB 800X1000X42U vrijstaande 42U serverkast, grijs

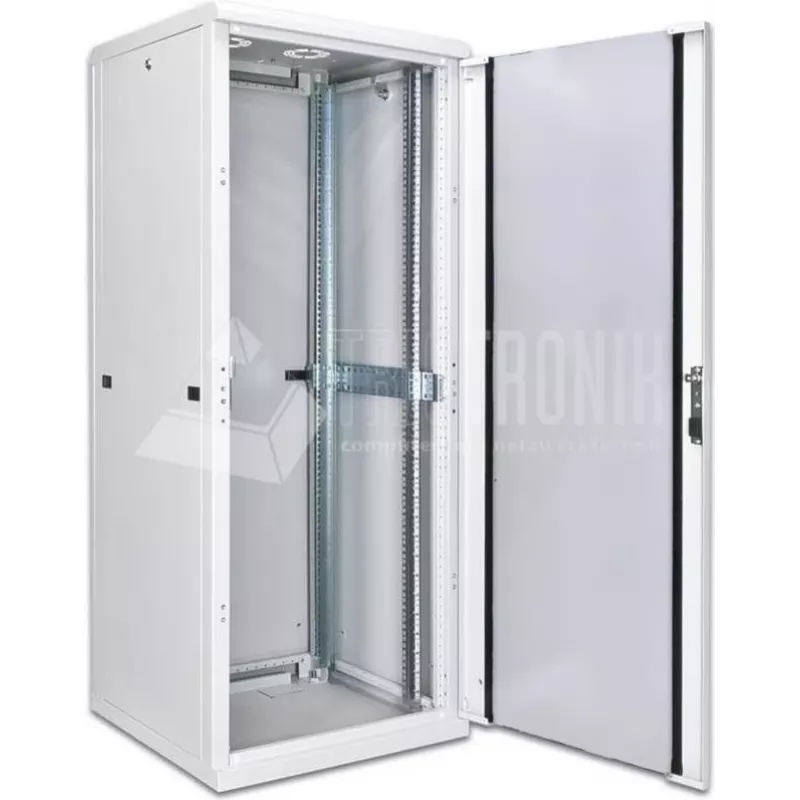

Freestanding 42U server cabinet with a 1000 kg static load capacity, built on a welded steel frame and finished in grey RAL 7035. The 800 mm width and 1000 mm depth provide ample space for 19-inch equipment, while lockable doors and side panels secure your hardware.

Advantages

The cabinet offers a robust, welded steel construction that supports up to 1000 kg, ensuring stability for heavy equipment. The front safety glass door allows visual monitoring without opening the cabinet, while the rear perforated steel door promotes passive airflow. Removable, lockable side panels facilitate easy access during installation and maintenance. Adjustable 19-inch mounting rails with a depth range of 150–850 mm accommodate various equipment depths. Cable entry points on the top and bottom simplify cable routing.

Suitable for

• Server rooms and data centers
• Network infrastructure installations
• Industrial environments requiring secure equipment housing

Key specifications

• Rack capacity: 42U
• External dimensions: 800 mm (W) x 1000 mm (D) x 2055 mm (H)
• Material: Steel
• Colour: Grey (RAL 7035)
• Static load capacity: 1000 kg
• Front door: Safety glass, lockable
• Rear door: Perforated steel, lockable
• Side panels: Removable, lockable
• Mounting rails: 19-inch, adjustable depth 150–850 mm
• Protection class: IP20

Recommendations

For optimal airflow, consider adding active fan units if the cabinet will house high-density equipment. Ensure the floor can support the cabinet's weight when fully loaded.
