Wirewin PKW-PIMF-KAT6A netwerkkabel wit 50 m Cat6a S/FTP (S-STP) PKW-PIMF-KAT6 50.0 WS

The Wirewin PKW-PIMF-KAT6A stands out with its PIMF construction: each of the four twisted pairs is individually foil-shielded, and the entire bundle is wrapped in an overall braid. This double-layer shielding suppresses alien crosstalk in high-density installations, making it a dependable backbone for 10 Gigabit Ethernet over the full 50-metre run.

Highlights

• Cat6a performance up to 500 MHz bandwidth
• S/FTP (S-STP) shielding with PIMF pair isolation
• Supports 10GBASE-T data rates up to 10 Gbps
• White jacket for easy identification in structured cabling
• PoE, PoE+, and UPoE compatible for powered devices

In daily use

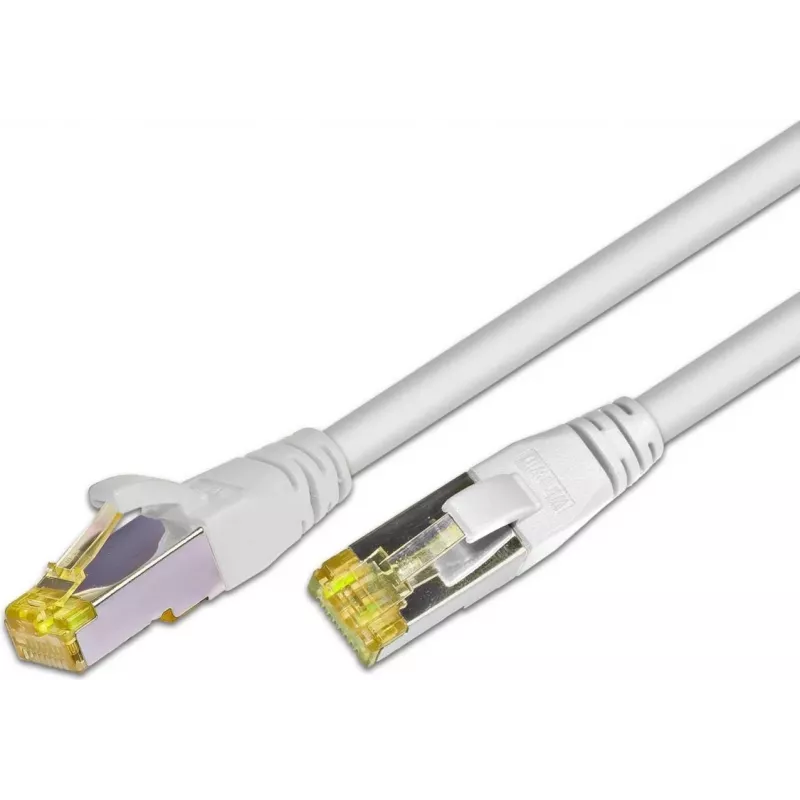

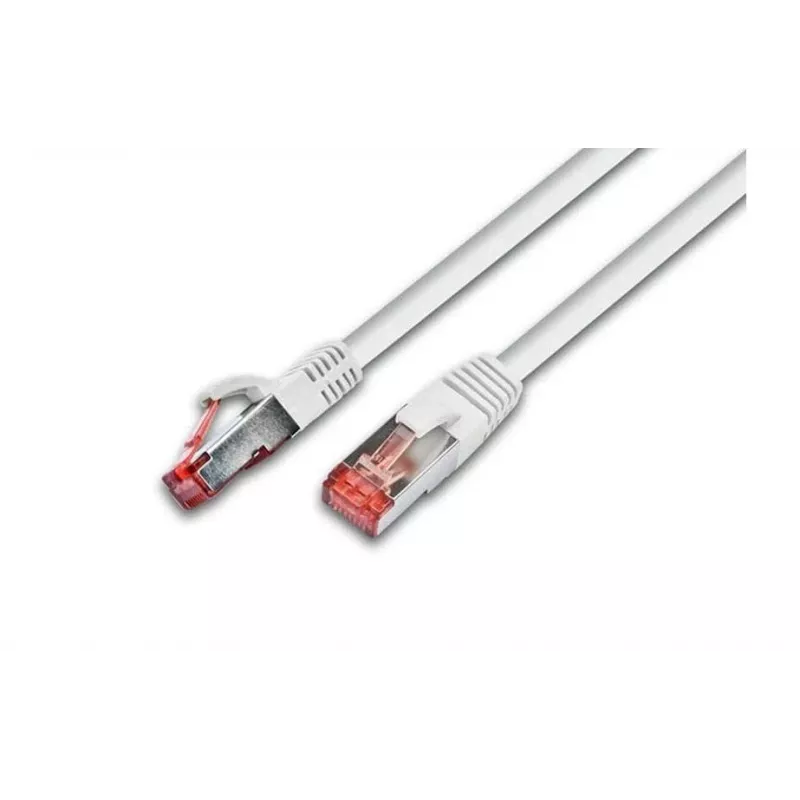

Terminated with RJ45 male connectors on both ends and wired to TIA/EIA-568B, this cable is ready for patch panels, switches, and wall outlets. The 50-metre length suits server rooms, data centres, and long horizontal runs where signal integrity matters. Its white colour keeps installations looking clean and organised.

Full specifications

• Cable length: 50 m
• Cable standard: Cat6a
• Cable shielding: S/FTP (S-STP)
• Data transfer rate: 10 Gbps
• Bandwidth: 500 MHz
• Connector type: RJ45 male to RJ45 male
• Wiring standard: TIA/EIA-568B
• Conductor material: Copper
• Number of conductors: 8 (4 twisted pairs)
• PoE support: PoE, PoE+, UPoE
• Colour: White

Final note

Compliant with ISO/IEC 11801, EN 50173, and TIA/EIA-568-C.2, this cable is built for reliable high-speed networking in demanding environments.
