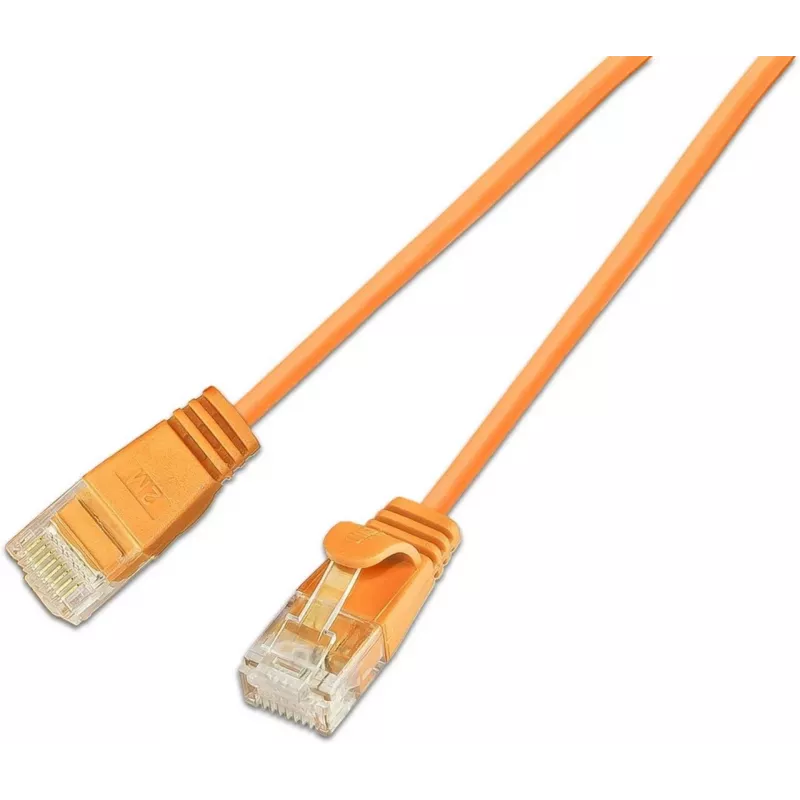

Wirewin SLIM CAT6A 10 Gigabit Light-patchkabel rond, U/UTP, Ø 3,6 mm, oranje (SLIM-L-UU-K6A 1.0 OR)

High-density network installations often suffer from cable bulk that blocks airflow and complicates patching. This slim Cat6A patch cable solves that problem with a 3.6 mm outer diameter, allowing more cables in the same space while maintaining 10 Gigabit performance.

Who is it for

Network administrators and data center technicians who need reliable, high-speed copper links in space-constrained racks and patch panels.

Main features

• 10 Gigabit Ethernet support over Cat6A with 500 MHz bandwidth
• Ultra-slim 3.6 mm round LSZH jacket for improved airflow and cable management
• U/UTP unshielded construction with stranded copper conductors (4x2 AWG 30/7)
• Gold-plated RJ45 connectors (50µ") for reliable connectivity
• Supports PoE, PoE+, and 4PPoE (IEEE 802.3af/at/bt)
• Halogen-free and flame-retardant jacket for safety

Specifications

• Cable length: 1.0 m
• Cable type: Patch cable, Cat6A
• Shielding: U/UTP
• Data transfer rate: 10 Gbps
• Bandwidth: 500 MHz
• Conductor: Copper, 4x2 AWG 30/7 stranded
• Jacket: LSZH, orange
• Connectors: RJ45 male to RJ45 male, gold-plated contacts
• Outer diameter: 3.6 mm
• Standards: TIA/EIA-568-C.2, ISO/IEC 11801, EN 50173

Tips

Use this cable for high-density patching in data centers and server rooms. The slim profile improves airflow and makes tracing and organizing easier.
