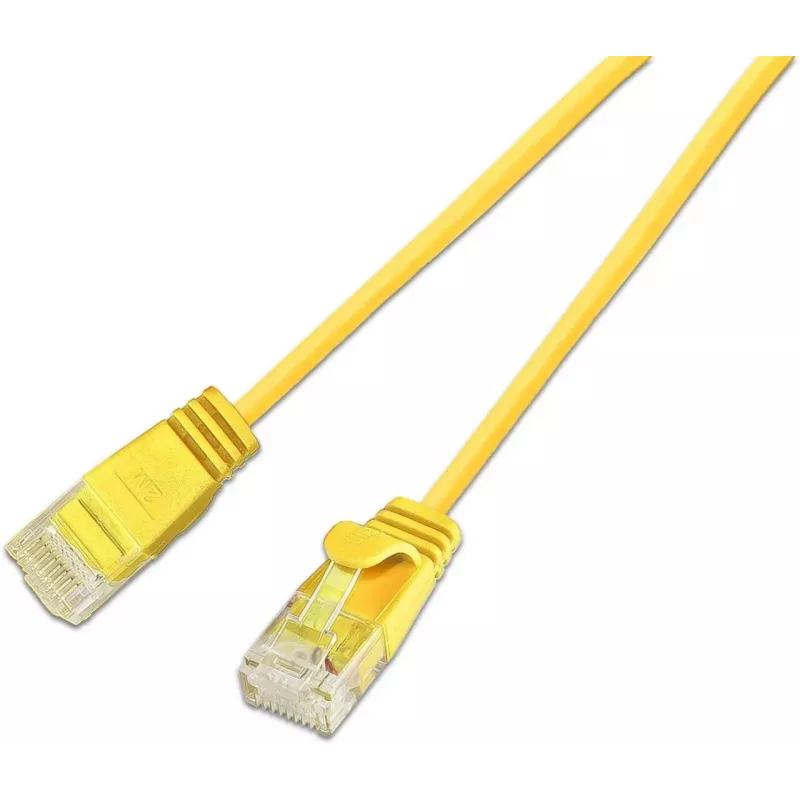

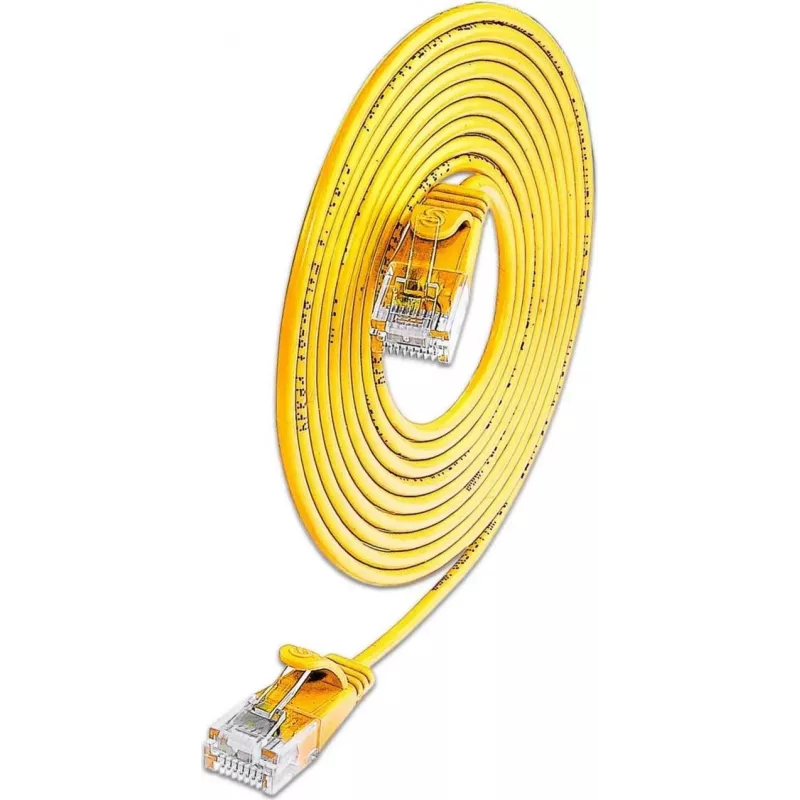

Wirewin SLIM KAT6A 10 Gigabit Licht patchkabel, U/UTP, Ø 3,6 mm, geel (SLIM-L-UU-K6A 2.0 YE)

Experience 10 Gigabit Ethernet over a slim, round Cat.6A patch cable with a diameter of just 3.6 mm. The SLIM WIREWINE SLIM KAT6A Light Patch Cable delivers 500 MHz bandwidth and U/UTP construction for high-density installations.

Overview

This yellow patch cable is designed for 10GBASE-T networks, supporting data transfer rates up to 10 Gbps. Its slim, round profile and stranded AWG 28/7 copper conductors offer excellent flexibility and easy routing in tight spaces. The LSZH jacket is halogen-free and flame retardant, making it suitable for public and office environments.

What stands out

• 10 Gigabit Ethernet performance with 500 MHz bandwidth
• Ultra-slim 3.6 mm round cable for high-density patching
• U/UTP unshielded twisted pair construction
• Halogen-free LSZH jacket for improved fire safety
• Gold-plated RJ45 connectors with 50 µm plating
• Supports PoE, PoE+, and PoE++

Technical details

• Cable standard: Cat.6A
• Shielding: U/UTP
• Data transfer rate: 10 Gbps
• Bandwidth: 500 MHz
• Conductor: Copper, AWG 28/7 stranded
• Jacket material: LSZH
• Cable diameter: 3.6 mm
• Colour: Yellow
• Connector: RJ45 male to RJ45 male, gold-plated contacts
• Wiring standard: TIA/EIA-568B
• PoE support: PoE, PoE+, PoE++
• Operating temperature: -20°C to +60°C

Our verdict

A reliable, slim Cat.6A patch cable for 10G networks where space is at a premium. The halogen-free jacket and full PoE support make it a versatile choice for modern installations.
