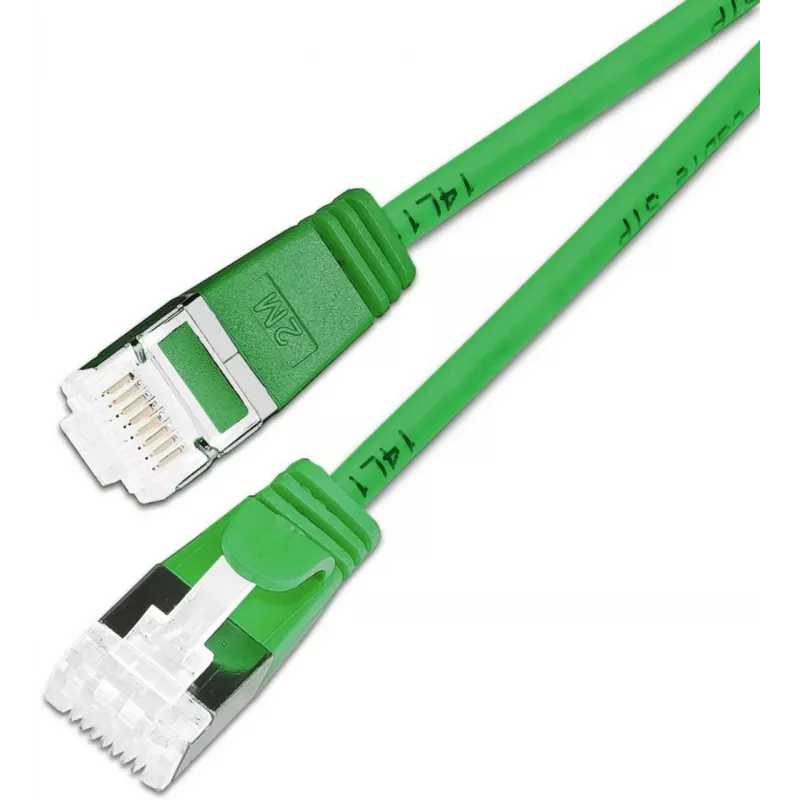

Wirewin SLIM-LS-K6A 0,25 GN 50 Cat6A U/FTP Slim patchkabel, 0,25m, groen, 50-pack

In high-density network environments, bulky cables block airflow and make patching a nightmare. This 50-pack of slim Cat6A patch cables solves that by cutting the diameter to just 3.8 mm while still delivering 10 Gigabit speeds. Each 0.25 m green cable is built with U/FTP shielding (foiled pairs) to stop alien crosstalk, so your rack stays cool and your signal stays clean.

Who is it for

Network administrators and data centre technicians who need to connect equipment in tight spaces without sacrificing performance. Ideal for patch panels, switches, and servers where every millimetre of rack space counts.

Main features

• Cat6A performance with 500 MHz bandwidth supports 10GBASE-T up to 100 m.
• Ultra-slim 3.8 mm diameter reduces cable bulk and improves airflow in racks.
• U/FTP shielding with PiMF (pairs in metal foil) eliminates alien crosstalk.
• Gold-plated RJ45 connectors (50µ") ensure reliable, corrosion-resistant connections.
• Stranded copper conductors (AWG 30/7) remain flexible for easy routing.
• LSZH jacket is halogen-free and low-smoke for safer indoor installations.
• Supports PoE, PoE+, and 4PPoE (PoE++) for powering devices over the same cable.

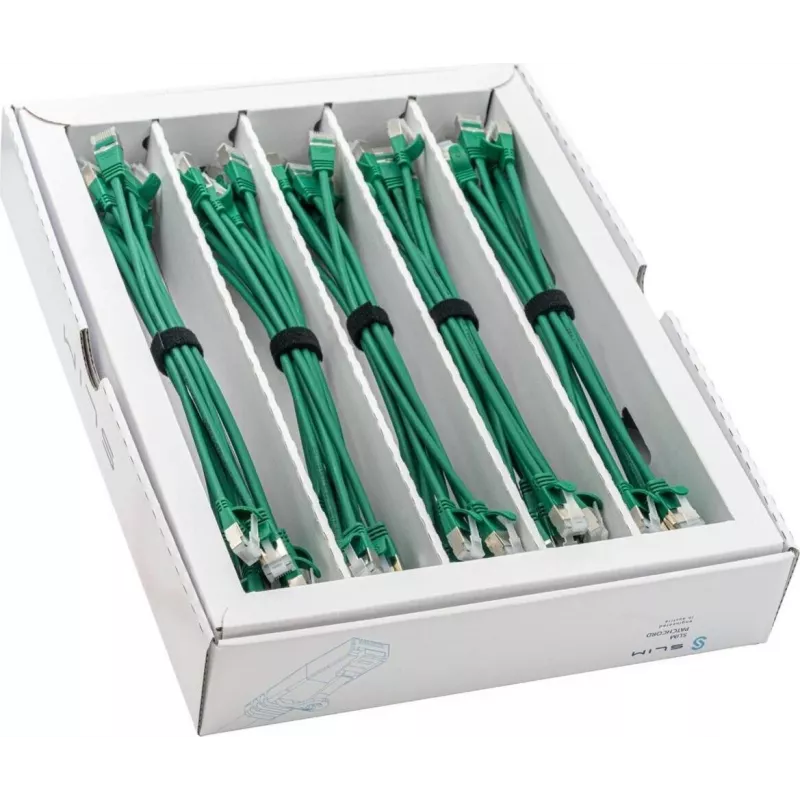

• Pack of 50 cables keeps your inventory ready for large deployments.

Specifications

• Cable length: 0.25 m
• Category: Cat6A (Class EA)
• Shielding: U/FTP (PiMF)
• Data transfer rate: 10 Gbps
• Bandwidth: 500 MHz
• Connector type: RJ45 (8P8C) male to male
• Connector plating: Gold (50µ")
• Conductor material: Stranded copper
• Conductor gauge: AWG 30/7
• Jacket material: LSZH
• Wiring scheme: TIA/EIA 568B
• Flammability rating: IEC 60332-1
• Quantity per pack: 50

Tips

Use these slim cables in high-density patch zones to keep airflow moving and reduce cable clutter. The green colour helps you identify specific network segments at a glance. For best performance, avoid sharp bends and keep the minimum bend radius above four times the cable diameter.
