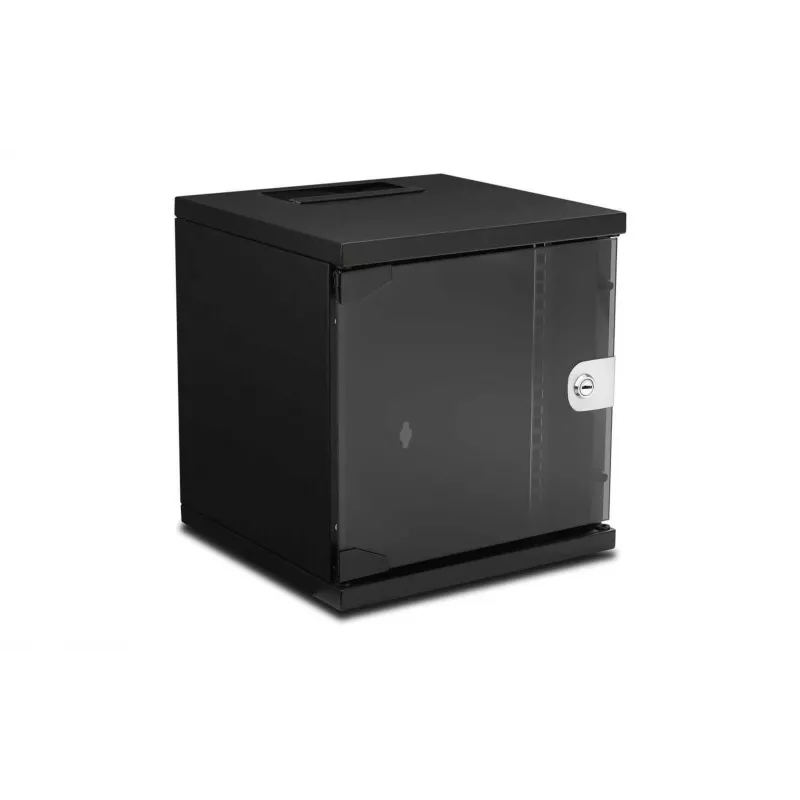

Wirewin WCAB 10 312X300X6U BL wandmontage-rack 6U zwart

Wall-mount network cabinet with 6U capacity for 10-inch equipment, featuring a lockable safety glass door and a 20 kg load capacity.

Advantages

Compact 10-inch design with 300 mm width fits tight spaces. Lockable glass door protects equipment while allowing visibility. Pre-punched cable entry points on top and bottom simplify installation. Passive ventilation slots maintain airflow.

Suitable for

• Small office networks
• Retail back offices
• Home labs
• Industrial control panels

Key specifications

• Rack units: 6U
• Rack standard: 10-inch
• External dimensions (W x D x H): 300 x 312 x 320 mm
• Material: steel
• Colour: black (RAL 9005)
• Max load capacity: 20 kg
• Protection class: IP20
• Front door: lockable safety glass
• Side panels: fixed
• Mounting rails: 2x 10-inch profile rails, depth-adjustable
• Cable entry: top and bottom (pre-punched openings)
• Ventilation: passive slots

Recommendations

Ideal for mounting 10-inch network switches, patch panels, and small servers in limited spaces. Ensure wall anchors are rated for the total installed weight.
