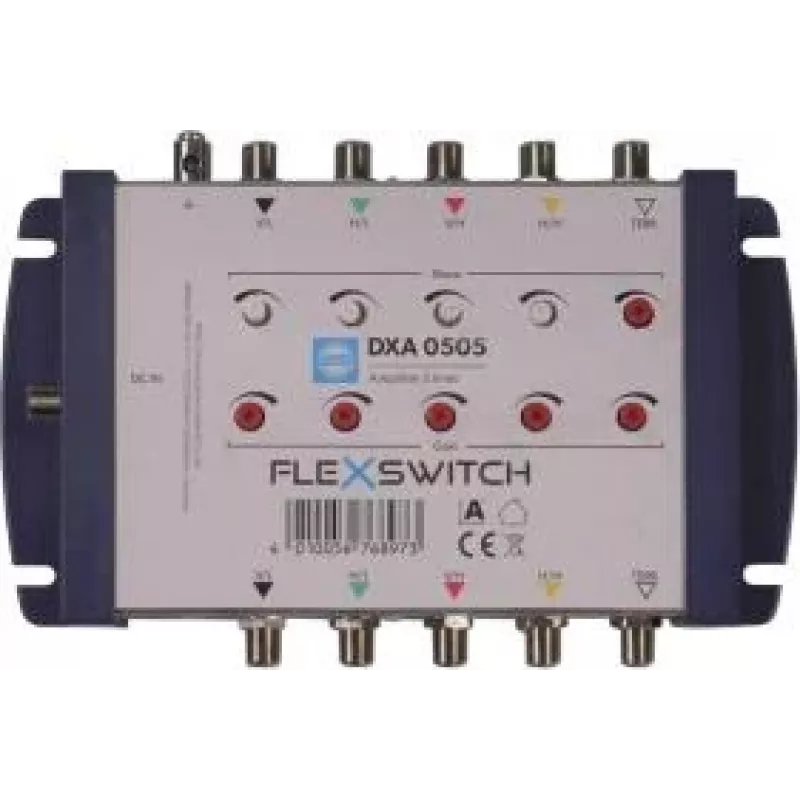

WISI FLEXSWITCH lijnversterker DXA0505 4xSAT/1xTERR voor multiswitch-cascades

In large satellite distribution systems, signal loss across long cable runs and cascaded multiswitches can degrade picture quality and limit the number of connected receivers. The WISI FLEXSWITCH DXA0505 line amplifier solves this by boosting both satellite and terrestrial signals, ensuring stable levels throughout the cascade.

Who is it for

Professional installers and system integrators deploying multiswitch cascades in MDUs, hotels, or larger residential complexes where signal attenuation is a concern.

Main features

• Amplifies 4 satellite IF polarities and 1 terrestrial band simultaneously
• Adjustable gain: SAT 0–15 dB, TERR 0–12 dB for precise level matching
• High output capability: SAT 105 dBµV, TERR 95 dBµV
• Low noise figure: <6 dB SAT, <8 dB TERR
• DC pass-through for LNB powering via F-connectors
• Die-cast aluminum housing for durability and shielding

Specifications

• SAT frequency range: 950–2150 MHz
• TERR frequency range: 47–862 MHz
• SAT gain: 20 dB (adjustable 0–15 dB)
• TERR gain: 15 dB (adjustable 0–12 dB)
• Max output level SAT: 105 dBµV (35 dB IMA3)
• Max output level TERR: 95 dBµV (60 dB IMA3)
• Return loss: >10 dB all ports
• Connectors: F-type
• Power supply: via multiswitch or external PSU (e.g., DRP 1533)
• Operating temperature: -20 to +50 °C

Tips

For optimal performance, install the amplifier at a point where signal levels are still sufficient to ensure a good signal-to-noise ratio. Use the adjustable attenuators to balance levels between SAT and TERR paths.
