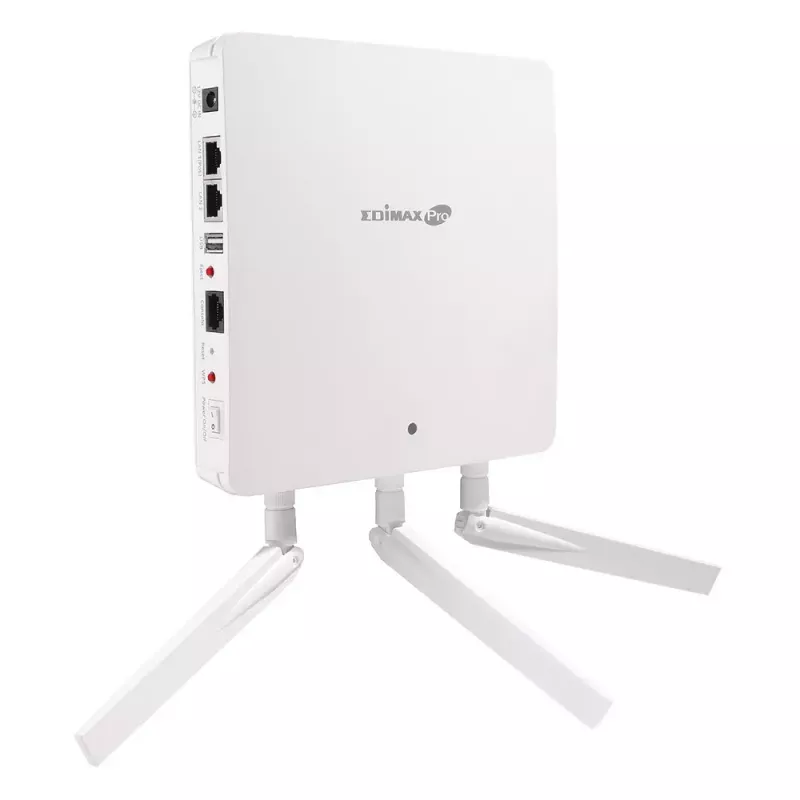

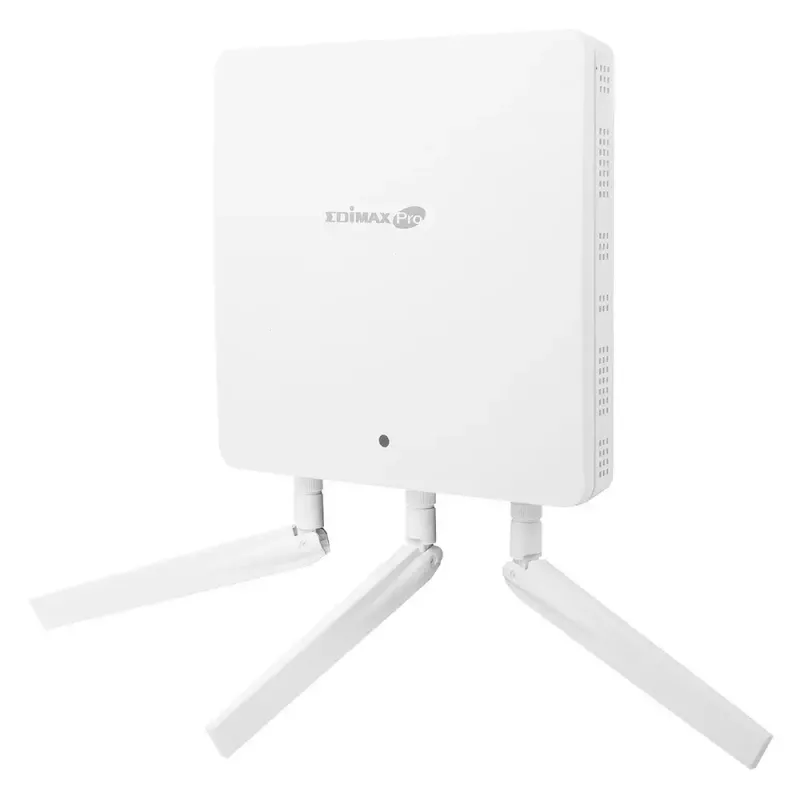

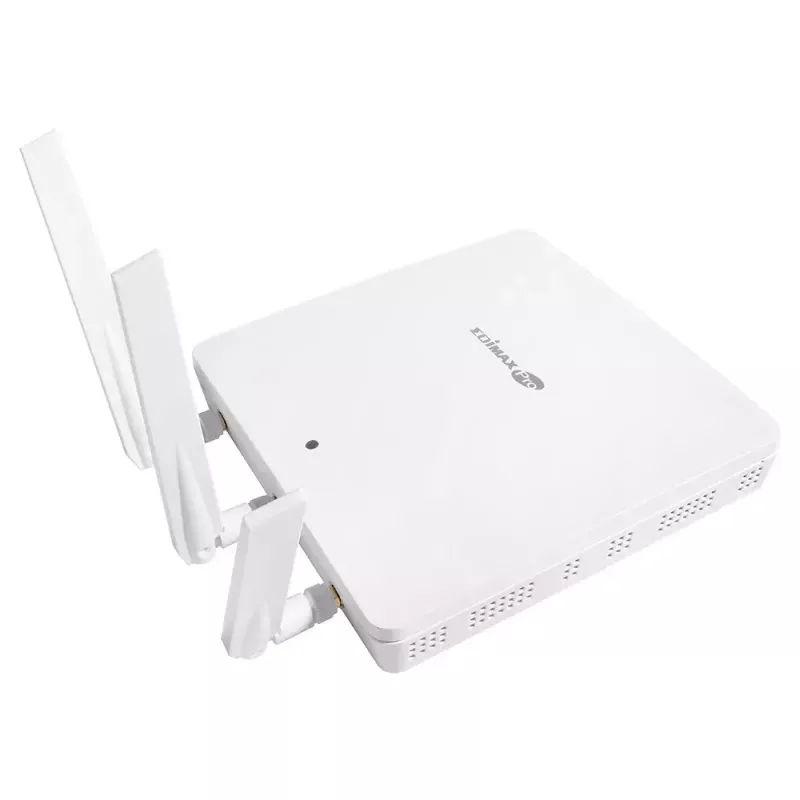

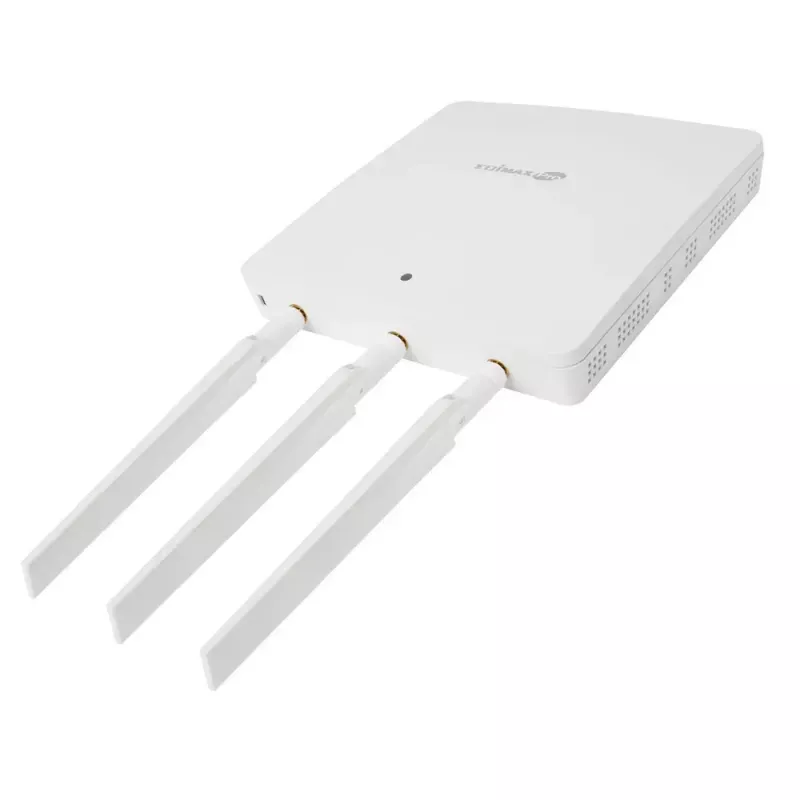

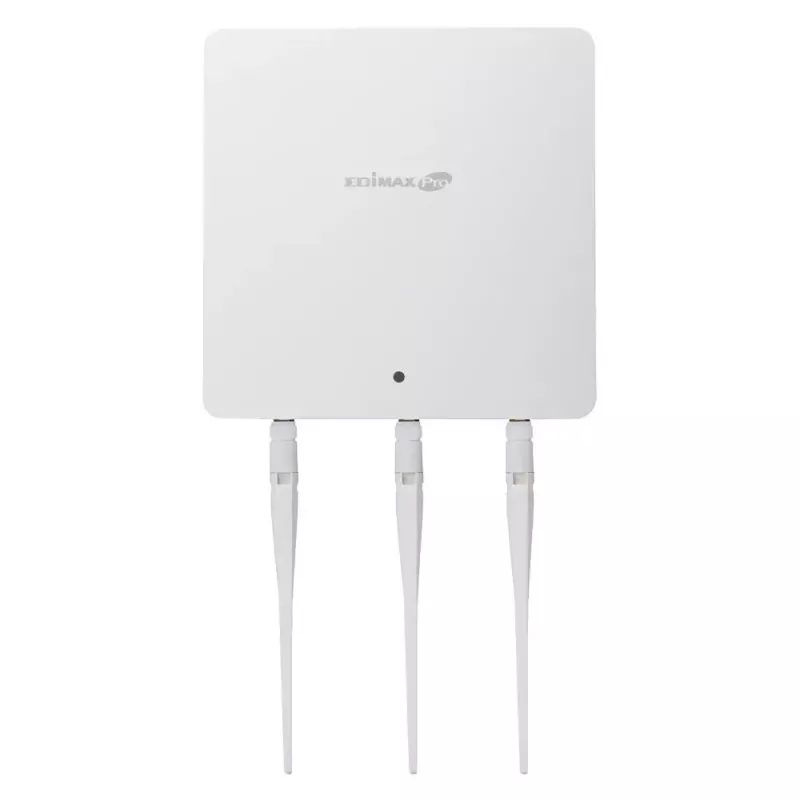

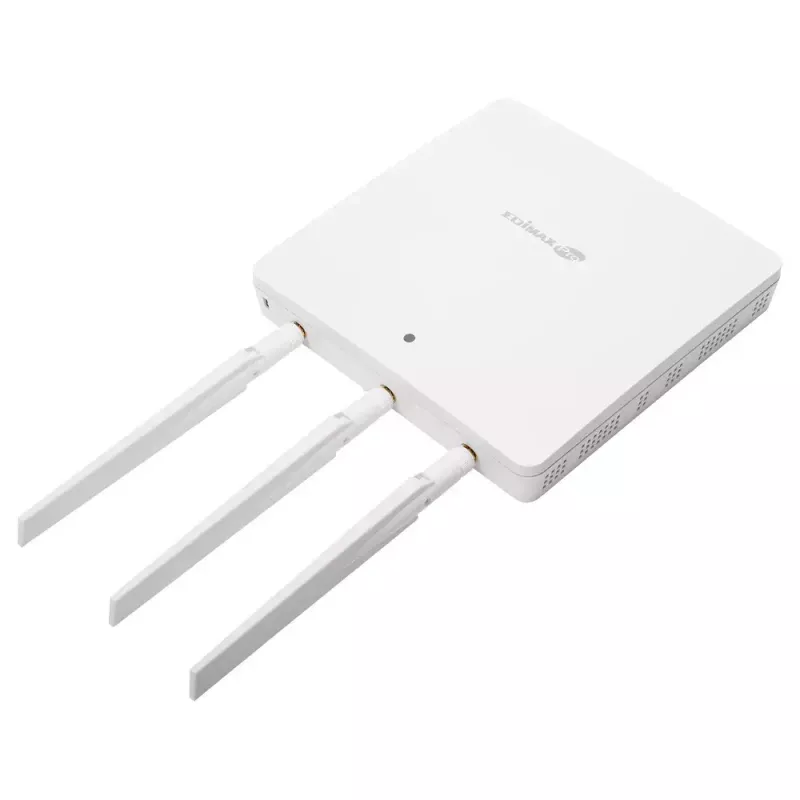

WLAN-accesspoint Edimax WAP1750 1750 Mbit/s Power over Ethernet

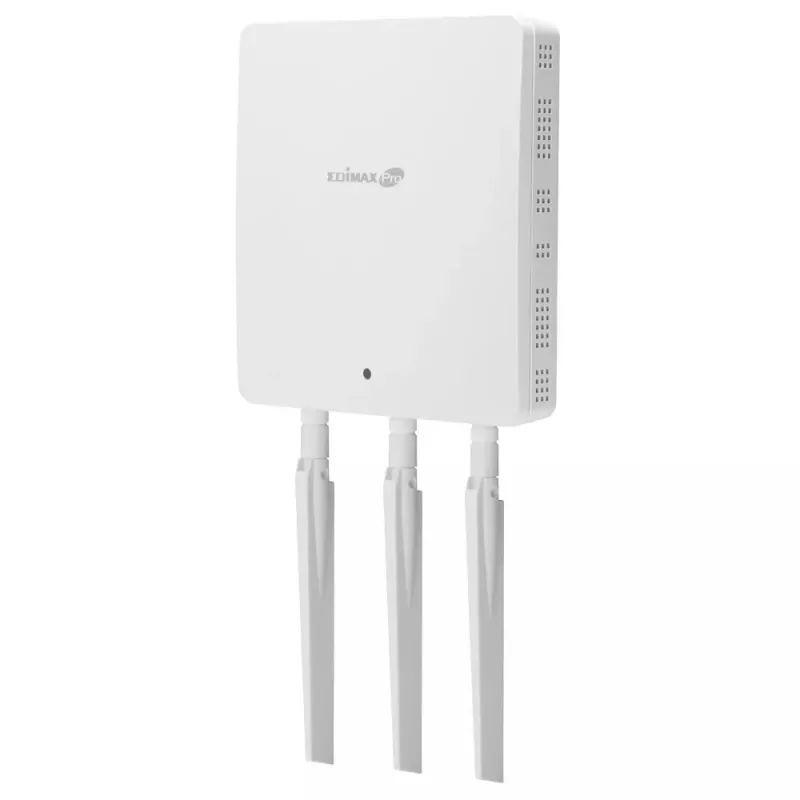

The Edimax WAP1750 is a wall-mountable wireless access point delivering up to 1750 Mbit/s using 3x3 IEEE 802.11ac concurrent dual-band technology. Designed for small and medium businesses, it combines industrial-grade build quality, Power over Ethernet (PoE) support and an intuitive web management interface to simplify deployment and central administration of multiple APs.

Advantages

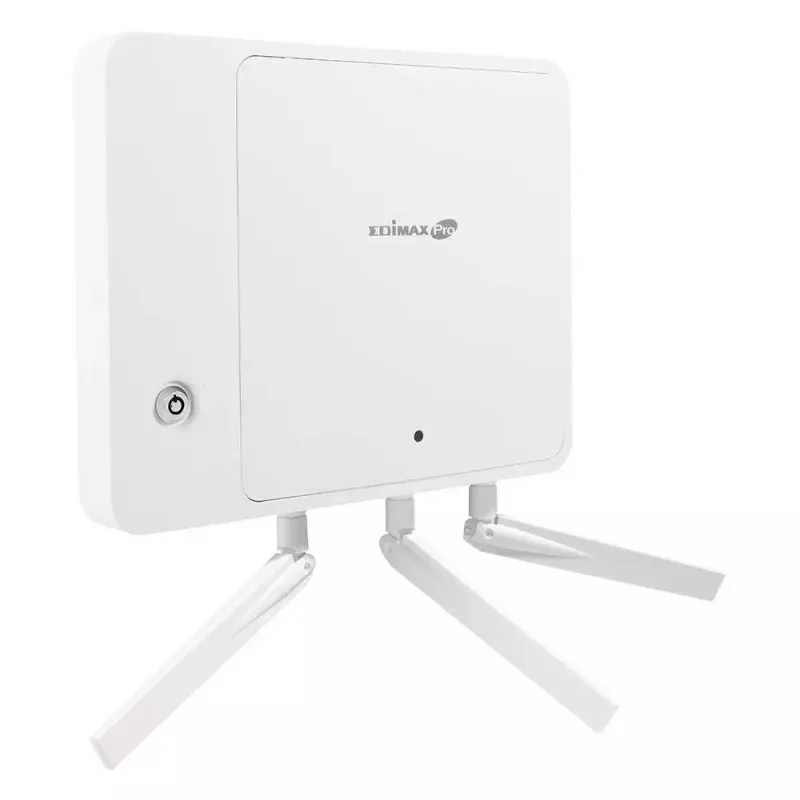

The WAP1750 offers super-high AC1750 speeds and support for up to 100 simultaneous clients, fast roaming between access points, multiple SSID configuration and a built-in RADIUS server for enhanced authentication. It includes 2 Gigabit Ethernet ports, three external antennas for improved coverage and network standards compliance (802.11ac/n/a/g/b), plus optional security cover and rogue AP detection for additional physical and network protection.

Suitable for

• Office environments and open-plan workplaces
• Schools, campuses and educational facilities
• Hotels and hospitality venues
• Healthcare facilities such as hospitals and clinics
• BYOD environments and locations with high client density

Key specifications

• Maximum data transfer rate: 1750 Mbit/s
• Wireless standard: IEEE 802.11ac (concurrent dual-band)
• Antennas: 3 (3x3 MIMO)

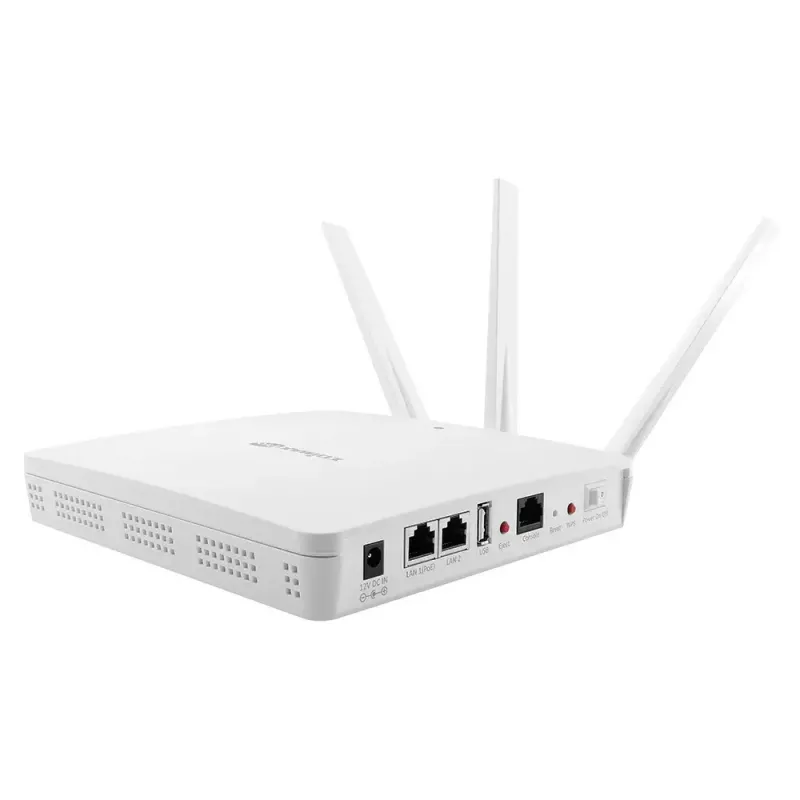

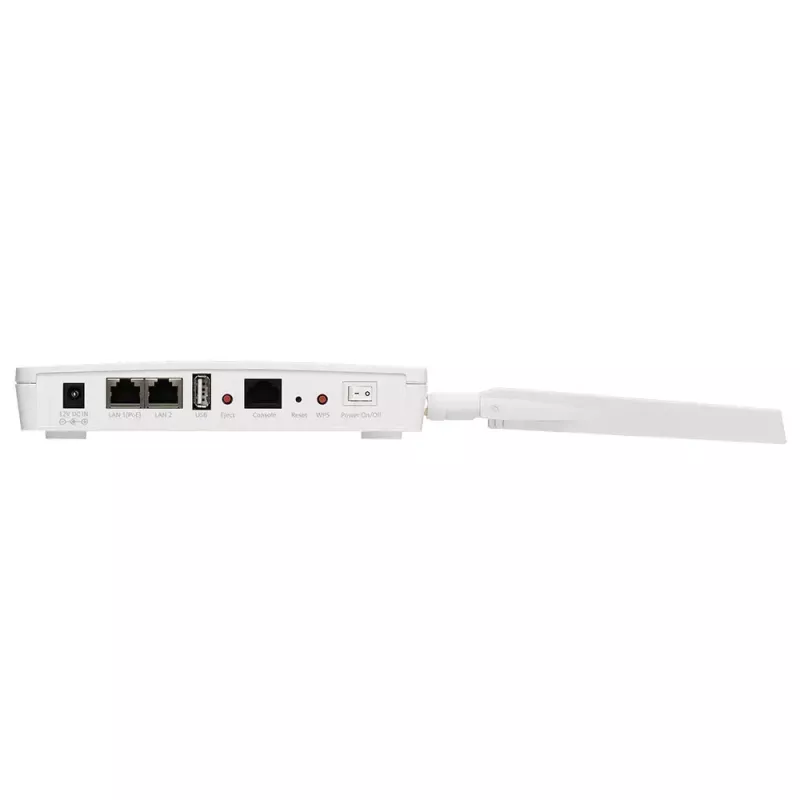

• Ethernet: 2 × RJ-45 Gigabit ports (10/100/1000 Mbit/s)
• Power: Power over Ethernet (PoE) support
• Security: WPA2, 802.1x RADIUS support, rogue AP detection
• Weight: 0.56 kg
• Colour: White

How to use

Mount the WAP1750 on a wall and connect one of the Gigabit Ethernet ports to a PoE-capable switch or injector to provide power and network connectivity. Use the web-based management interface to configure SSIDs, security settings, RADIUS authentication and roaming parameters. For centralised control of multiple access points, add each unit to the scalable AP management array and adjust VLAN, QoS and SSID segmentation as required.

Recommendations

Place access points to minimise physical obstructions and ensure even coverage; enable fast roaming for seamless client handover between APs and configure separate SSIDs with appropriate security policies for guest and corporate networks.
