Zebra ZebraNet 10/100 Printserver Intern 100 Mbit/s

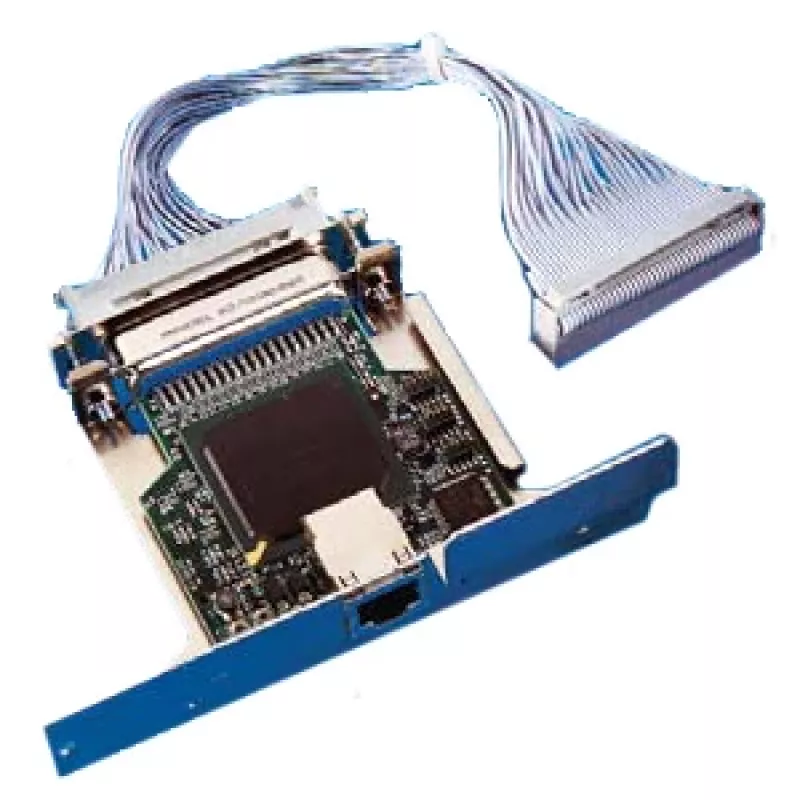

The ZebraNet 10/100 Print Server is a wired network accessory designed to expand networking capabilities for compatible Zebra thermal barcode printers. It provides reliable Ethernet connectivity with auto-switching between 10Base-T and 100Base-TX, allowing Zebra printers to use existing wired networks and improve data transmission speeds up to 100 Mbit/s. The module is available in internal and external versions and connects via an RJ-45 host interface.

Advantages

The ZebraNet 10/100 Print Server supports both 10Base-T and 100Base-TX networks with auto-switching, enabling flexible deployment on mixed-speed Ethernet infrastructures. By offloading network communication to the print server, compatible Zebra printers can achieve faster and more reliable data transfer. The device’s wired RJ-45 interface ensures stable connectivity for high-volume printing environments.

Suitable for

Key specifications

How to use

Install the ZebraNet 10/100 Print Server according to your Zebra printer’s accessory instructions — either by fitting the internal module into the printer’s expansion slot or by connecting the external unit to the printer’s designated port. Connect an Ethernet cable to the RJ-45 port and to your network switch or router. Configure network settings on the printer or via the network management interface to assign an IP address and enable communication with print servers and host systems.

Recommendations

Use the ZebraNet 10/100 Print Server on wired networks where stable, high-throughput printing is required. Prefer a direct connection to managed switches for reliable performance and configure IP addressing consistent with your network policies. Choose the internal or external version based on printer model compatibility and installation preferences.
