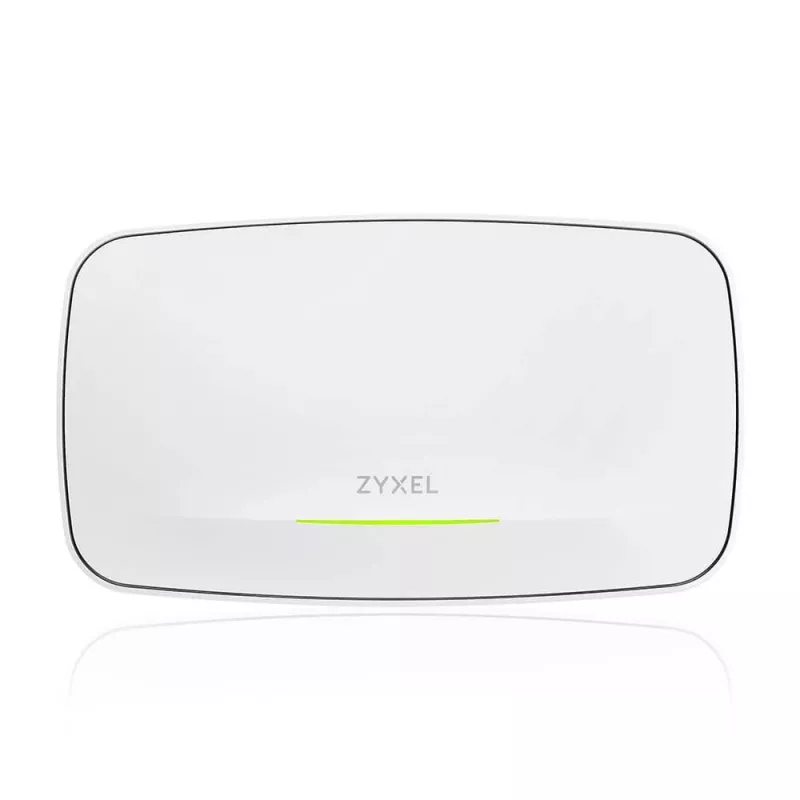

ZyXEL WBE660S BE22000 tri-band Wi-Fi 7 4x4:4 MU-MIMO smart access point

The ZyXEL WBE660S stands out as a NebulaPro Wi-Fi 7 access point engineered for high-density environments where legacy Wi-Fi 6E gear cannot keep pace. With a combined throughput of 22 Gbps across three bands, it leverages Multi-Link Operation, 4096-QAM, and preamble puncturing to deliver ultra-low latency and reliable connections for bandwidth-hungry clients. Its 10 Gigabit uplink ensures the wireless backhaul never becomes the bottleneck, while dual PoE++ and 2.5G ports provide flexible deployment options.

Highlights

• Tri-band BE22000: 1376 Mbps (2.4 GHz) + 5765 Mbps (5 GHz) + 11530 Mbps (6 GHz)
• 4x4:4 MU-MIMO and OFDMA on all bands for efficient multi-client handling
• One 10G Ethernet port and one 2.5G Ethernet port for high-speed wired uplinks
• Powered by 802.3bt PoE++ or DC input, max consumption 38.5 W
• Internal antennas with wall/ceiling mounting kit included
• Managed via Zyxel Nebula Cloud, standalone web GUI, or hardware controller

In daily use

Deploy the WBE660S in offices, schools, or retail spaces where dozens of devices demand simultaneous access. The 6 GHz band offers seven additional 160 MHz channels, dramatically reducing interference. MLO allows a single client to send and receive across multiple bands at once, improving both speed and reliability for latency-sensitive applications like video conferencing and AR/VR. NebulaPro adds advanced analytics, AI-driven RF optimization, and zero-touch provisioning for multi-site management.

Full specifications

• Wi-Fi Standard: Wi-Fi 7 (802.11be), backward compatible with 802.11a/b/g/n/ac/ax
• Frequency Bands: Tri-Band (2.4 GHz, 5 GHz, 6 GHz)
• Combined Speed: BE22000 (22 Gbps)
• 2.4 GHz Speed: 1376 Mbps (4x4:4)
• 5 GHz Speed: 5765 Mbps (4x4:4)
• 6 GHz Speed: 11530 Mbps (4x4:4)
• MIMO: MU-MIMO, OFDMA
• Ethernet Ports: 1x 10 Gigabit Ethernet (RJ-45), 1x 2.5 Gigabit Ethernet (RJ-45)
• Power over Ethernet: 802.3bt (PoE++)
• Antenna Type: Internal
• Management: Zyxel Nebula Cloud, Standalone, Hardware Controller
• Security: WPA3, WPA2-PSK, WPA2-Enterprise
• Advanced Features: MLO, Preamble Puncturing, 4096-QAM
• Max Power Consumption: 38.5 W
• Operating Temperature: 0°C to 40°C (32°F to 104°F)
• Mounting: Wall/Ceiling Mount (kit included)
• Concurrent Clients: High-density support (up to 1024 theoretical)

Final note

The WBE660S is a future-proof investment for networks that demand the highest performance and capacity. Its NebulaPro integration and robust hardware make it a top choice for enterprises ready to embrace Wi-Fi 7.
