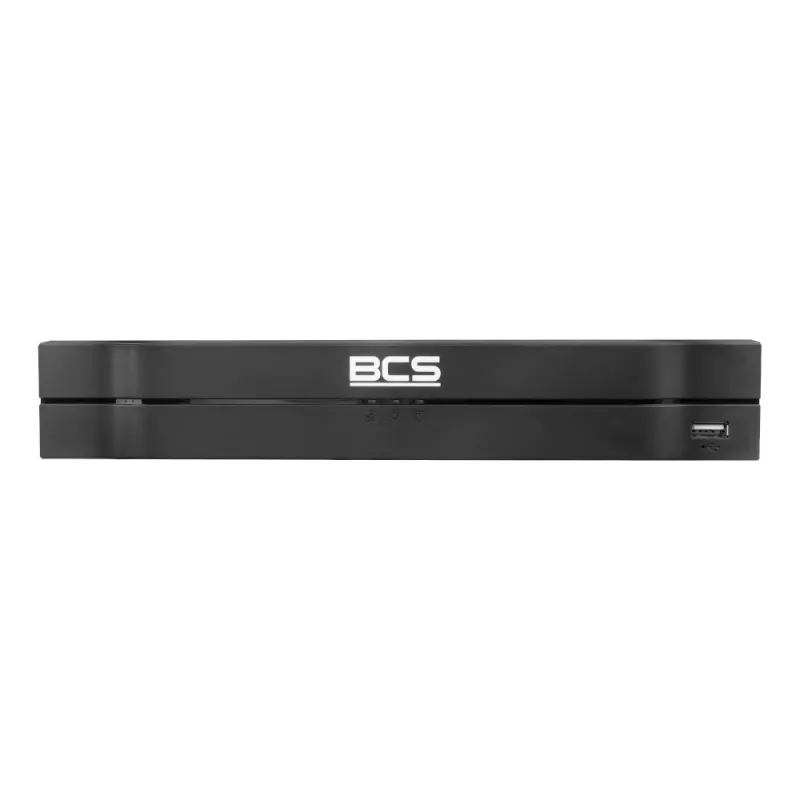

16-kanaals analoge HD recorder BCS-L-XVR1601-AI

For a retail chain needing to monitor multiple sales floors and stockrooms from a central security office, the BCS Line 16-channel AI DVR provides a robust and intelligent surveillance backbone. This hybrid recorder accepts up to 16 analog HD cameras over coaxial cable and can integrate up to 8 additional IP cameras, delivering a flexible solution for expanding systems. With support for 5MP resolution and advanced AI analytics, it captures critical details and reduces false alarms, making it a dependable choice for continuous operation.

Key specifications

• 16 BNC video inputs with auto-detection for HDCVI, AHD, TVI, and CVBS signals
• Supports up to 8 IP cameras (max 6MP) for hybrid expansion
• Records up to 5MP (1280x1920) at 10fps; lower resolutions at higher frame rates
• H.265+/H.265/H.264+/H.264 compression for efficient storage
• HDMI and VGA outputs with up to 1080p resolution
• 1 SATA port supporting up to 10TB HDD (not included)
• AI features: SMD Plus, Perimeter Protection (4 channels), Face Detection (2 channels)
• Audio: 1 RCA input, 1 RCA output, two-way talk support
• Network: 1 RJ-45 10/100 Mbps Ethernet port
• 2 USB 2.0 ports (1 front, 1 rear)
• Power: DC 12V / 2A
• Simultaneous playback: 1/4/9/16 channels

Why choose it

The BCS Line DVR stands out with its hybrid capability, allowing you to leverage existing coaxial infrastructure while gradually migrating to IP cameras. Its AI-powered analytics, including SMD Plus for human/vehicle classification and perimeter protection, significantly reduce false alarms and focus attention on real threats. The H.265+ compression maximizes storage efficiency, extending recording duration without sacrificing quality. With a 10TB HDD capacity and dual video outputs, it scales effortlessly for multi-location retail environments.

Ideal use cases

• Retail chains monitoring multiple sales floors and stockrooms from a central office
• Supermarkets and convenience stores requiring reliable 24/7 surveillance with AI event detection
• Small to medium businesses upgrading analog systems while adding IP cameras gradually
• Warehouses and logistics hubs needing perimeter protection and face detection at entrances

Good to know

The DVR supports audio over coaxial cable for compatible cameras, simplifying installation when audio is needed. It operates on embedded Linux for stable performance and includes two-way talk via RCA audio in/out for communication with camera sites. The unit is designed for continuous operation in security environments and can be managed remotely over the network.
