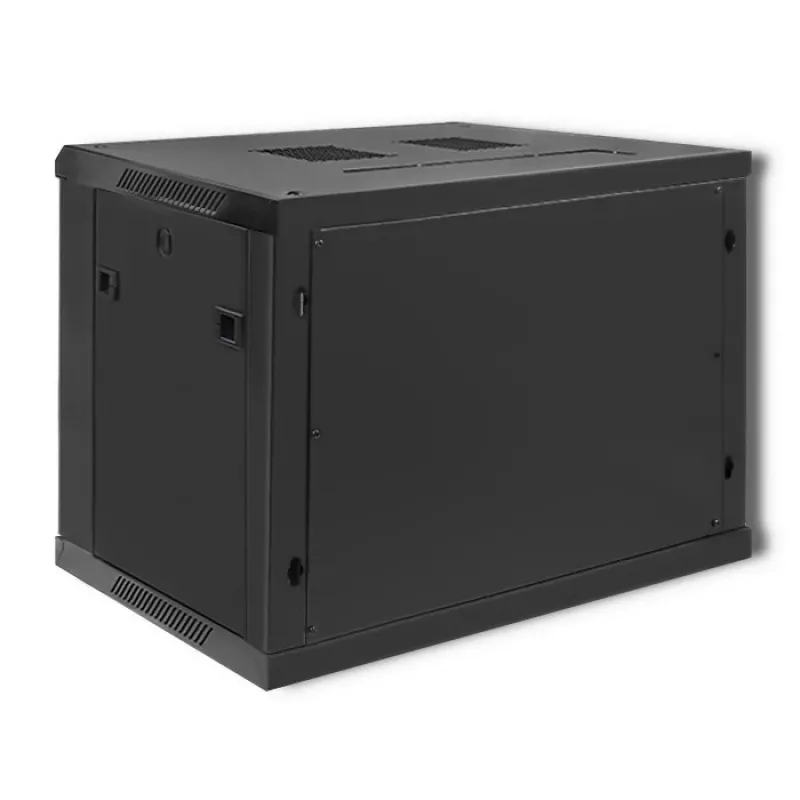

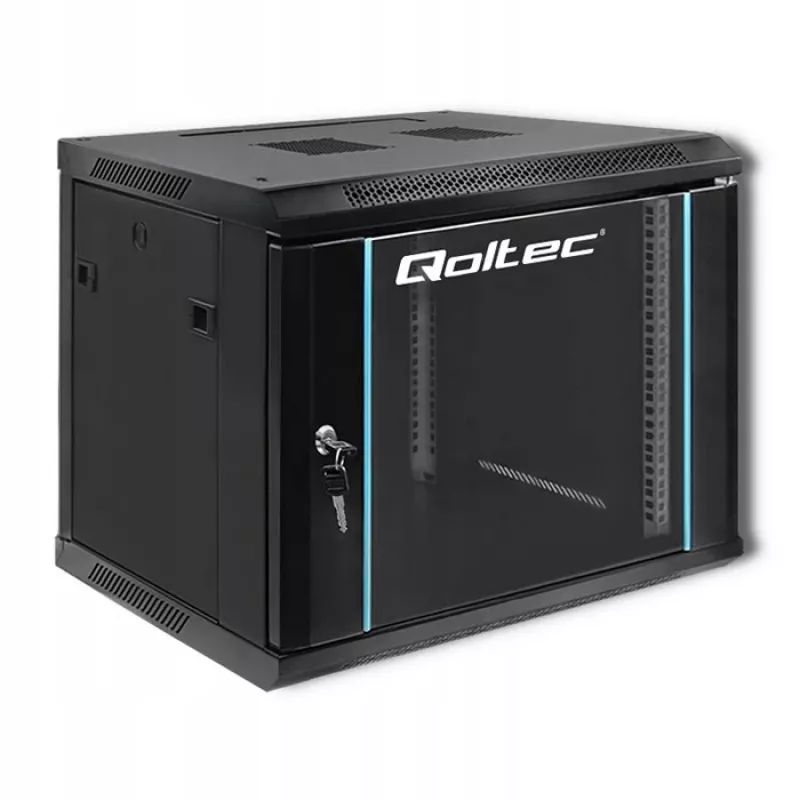

19 inch rackkast QOLTEC 54463 9U 600x500x450 mm metalen behuizing voor netwerkapparatuur

In a small office server room, an IT technician needs to mount a switch, a patch panel, and a compact server without taking up floor space. The Qoltec 54463 19-inch rack cabinet offers a 9U mounting height in a 600x500x450 mm metal enclosure that can be placed on a level surface or wall-mounted. Its tempered glass front door with lock keeps equipment visible yet secure, while removable side panels allow easy access during installation and maintenance.

Key specifications

• Rack standard: 19-inch
• Rack capacity: 9U
• External dimensions (W x D x H): 600 x 500 x 450 mm
• Material: steel
• Colour: black (RAL 9004)
• Front door: tempered glass with lock
• Side panels: removable, lockable
• Rear panel: solid, removable
• Static load capacity: 60 kg
• IP rating: IP20
• Ventilation: passive, with fan mounting points on top
• Cable entry: top and bottom with brush strips
• Mounting rails: adjustable front and rear
• Assembly: flat-pack, assembly required
• Included accessories: mounting hardware, 2 keys
• Compliance: IEC 60297-3-100, EN 60950-1

Why choose it

The steel construction provides durability and grounding potential for network installations. Standard 19-inch mounting rails enable straightforward installation of patch panels, switches, and small servers. The compact depth of 500 mm suits locations with limited space, while the enclosed design protects equipment from accidental contact and keeps cabling tidy.

Ideal use cases

• Small office network racks and patch panels
• Telecom closets and MDF/IDF distribution points
• Home lab or compact server deployments
• Structured cabling and network switch mounting

Good to know

The cabinet is delivered flat-packed and requires assembly. It includes mounting hardware and two keys for the lockable front door and side panels. Passive ventilation is supported by top and bottom cable entry points with brush strips, and the top panel has fan mounting points for optional active cooling.
