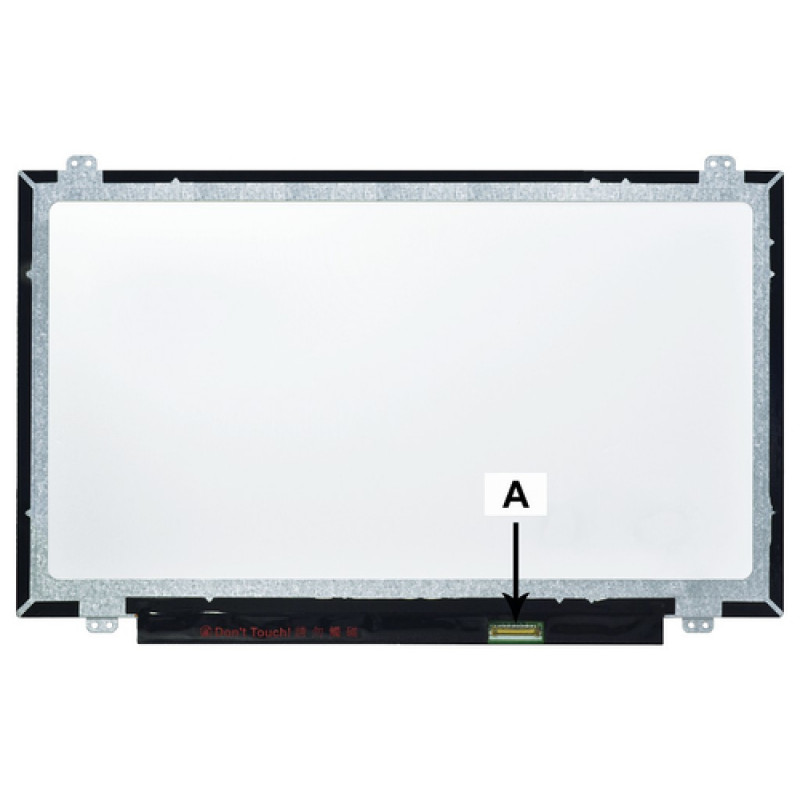

2-power 2P-B140XTN03 v.3 - beeldscherm - 35,6 cm (14) - WXGA

A cracked or dim laptop display can bring your work to a halt, but swapping in a new panel doesn’t have to be a hassle. The 2-POWER 2P-B140XTN03 v.3 is a direct-fit 14-inch WXGA screen that restores crisp, readable visuals to a wide range of notebooks. With its standard 40-pin eDP connector and slim profile, it’s a practical choice for technicians and DIY upgraders who want a dependable replacement without compatibility guesswork.

Who is it for

This panel suits IT service providers, repair shops, and individual users who need a reliable 14-inch display for everyday computing. It’s particularly useful for refurbishing older business laptops or student machines where a full display assembly would be cost-prohibitive. If your original panel is a 14.0-inch WXGA (1366x768) with a 40-pin eDP interface, this model is a drop-in candidate.

Main features

• 14-inch diagonal (35.6 cm) with 1366x768 WXGA resolution for standard productivity clarity
• LED backlight provides consistent brightness and lower power draw
• TN panel with matte anti-glare finish reduces reflections in bright environments
• 40-pin eDP connector for modern laptop motherboards
• 60 Hz refresh rate and 8 ms typical response time handle office tasks and video smoothly
• Compact and lightweight design for easy installation

Specifications

• Screen size: 14.0 inches (35.6 cm)
• Resolution: 1366 x 768 (WXGA)
• Aspect ratio: 16:9
• Panel type: TN (Twisted Nematic)
• Backlight: LED
• Surface finish: Matte (anti-glare)
• Connector: 40-pin eDP
• Refresh rate: 60 Hz
• Brightness: 200 cd/m²
• Contrast ratio: 400:1 (typical)
• Response time: 8 ms (typical)
• Viewing angles: 45°/45°/20°/40° (L/R/U/D)
• Color gamut: 45% NTSC
• Voltage: 3.3V

Tips

Before ordering, verify your laptop’s exact screen model or the original panel’s part number to ensure connector position and mounting holes align. Handle the panel by its edges and avoid touching the surface to prevent fingerprints or pressure damage. Use an anti-static wrist strap during installation, and test the screen before fully reassembling the bezel.
