2-power 2P-B156XW04V.7 display notebook-vervangingsonderdeel

When a laptop screen cracks or dims, a reliable replacement panel gets the machine back in service. The 2-POWER 2P-B156XW04V.7 is a 15.6-inch WXGA display built for technicians and DIY repairers who need a straightforward, compatible panel for common notebooks. It matches the AU Optronics B156XW04 V.7 specification, so it fits many laptops that use a 40-pin LVDS connection.

Key specifications

• Screen size: 15.6 inches
• Resolution: 1366 x 768 (WXGA HD)
• Aspect ratio: 16:9
• Panel type: TN (Twisted Nematic)
• Surface: Glossy
• Backlight: LED

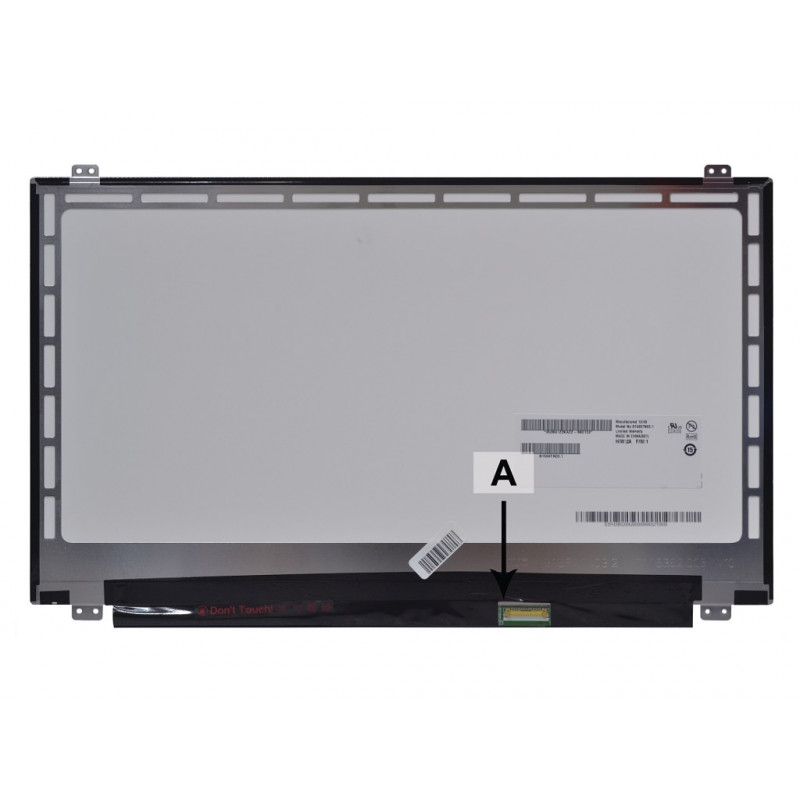

• Connector: 40-pin LVDS, bottom right (viewed from back)
• Refresh rate: 60 Hz
• Brightness: 200 cd/m² typical
• Contrast ratio: 500:1 typical
• Color depth: 6-bit (262,144 colors)
• Condition: New, Grade A+ panel
• Touchscreen: No
• Mounting brackets: Not included (panel only)
• Data cable: Not included

Why choose it

This panel is a direct replacement for the AUO B156XW04 V.7, one of the most widely used 15.6-inch WXGA screens. It offers the same connector position and mounting holes, so installation is usually a drop-in process. The LED backlight provides consistent brightness, and the TN panel delivers fast response times suitable for everyday computing. As a new Grade A+ panel, it is free from dead pixels and scratches, ensuring a clear image from the start.

Ideal use cases

• Repairing laptops with a cracked or faulty 15.6-inch WXGA screen
• Upgrading an older laptop from a dim or failing display
• Refurbishing used notebooks for resale
• Replacing a screen with a damaged connector or backlight

Good to know

Before ordering, verify that your laptop uses a 40-pin LVDS connection and a 15.6-inch WXGA panel. The connector is located on the bottom right when viewed from the back of the panel. Mounting brackets and the data cable are not included; you can reuse the existing ones from your old screen. This panel is compatible with many brands, but always check the exact model number of your original screen to ensure a perfect match.
