ACT 1,5 m LSZH multimode 62,5/125 OM1 duplex ST SC glasvezel-patchkabel

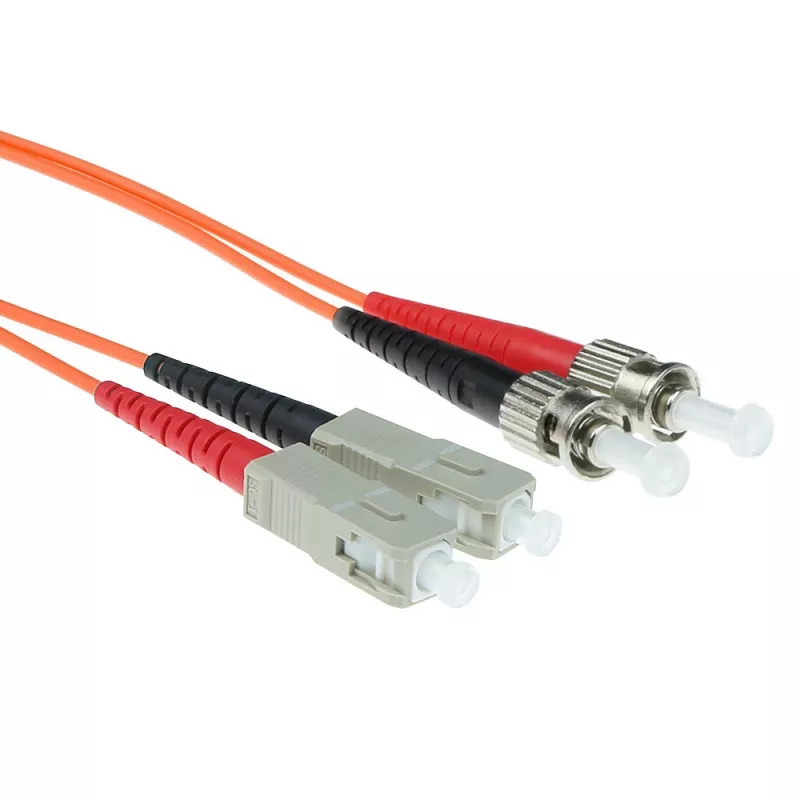

The ACT 1.5m LSZH Multimode 62.5/125 OM1 Duplex ST SC fiber patch cable provides a short, reliable link for multimode fiber networks. With one SC and one ST connector in a duplex configuration, this 1.5 metre cable supports full-duplex transmission on 62.5/125 µm OM1 multimode fiber. The LSZH jacket reduces smoke and halogen emissions for safer indoor installations and confined spaces, while the compact length minimises excess cable management in patch cabinets, racks and equipment rooms.

Advantages

This cable combines OM1 multimode fiber with standard SC and ST connectors to ensure compatibility with a wide range of legacy and current network equipment. The duplex construction supports simultaneous transmit and receive channels for high-speed links over short distances. The LSZH outer jacket improves safety in enclosed areas by emitting minimal smoke and no halogenated gases when exposed to fire. The 1.5 m length reduces clutter and simplifies routing between adjacent devices.

Suitable for

• Short-distance multimode links between switches, transceivers and patch panels
• Data centre and server-room connections where low-smoke materials are required
• Campus or building backbone segments using OM1 multimode fiber
• Equipment-to-equipment connections in telecom or networking racks

Key specifications

• Fiber type: Multimode OM1 (62.5/125 µm)
• Length: 1.5 m
• Connector configuration: Duplex (one SC, one ST)
• Jacket material: LSZH (Low Smoke Zero Halogen)
• Polish/connector type: Typical multimode ceramic ferrule terminations
• Transmit mode: Full duplex

How to use

Identify the SC and ST ends and align the connectors with the corresponding ports on your devices or patch panels. Insert the connectors gently until they click or seat fully; avoid forcing them to prevent ferrule damage. Route the cable with minimal bending and secure it to avoid strain on the connectors. When disconnecting, grip the connector body rather than pulling the jacket. Inspect connector endfaces for contamination and clean with appropriate fiber cleaning tools before installation to maintain signal quality.

Recommendations

Use this 1.5 m OM1 duplex patch cable for short links where OM1 performance meets system requirements. Maintain bend radii above manufacturer recommendations, keep connectors capped when not in use, and choose LSZH cabling for indoor or public-space installations where low smoke and halogen-free properties are preferred.
