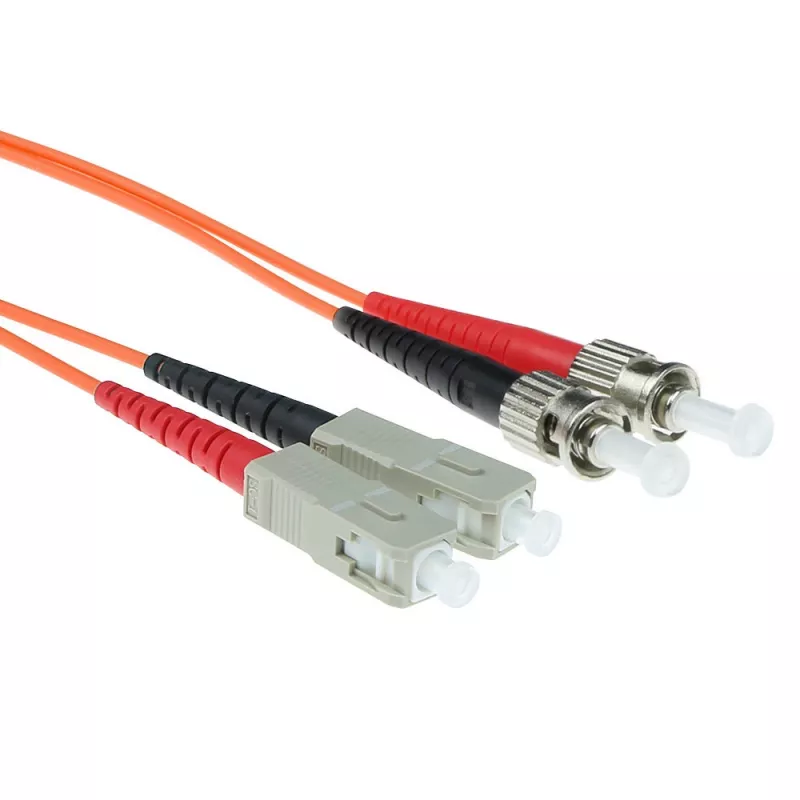

ACT 1 meter LSZH multimode 62.5/125 OM1 glasvezel-patchkabel duplex met ST- en SC-stekkers

The ACT 1m LSZH Multimode 62.5/125 OM1 Duplex ST SC patch cable provides a duplex fiber connection with SC and ST connectors for multimode networks. Constructed with OM1 62.5/125 glass and an LSZH jacket, the cable is intended for short-distance, high-speed data transmission in network installations where reduced smoke and halogen-free materials are required.

Advantages

The cable combines SC and ST terminations for flexible equipment compatibility and supports full-duplex communication for simultaneous sending and receiving of data. Its 62.5/125 OM1 multimode core is suitable for legacy multimode links, while the LSZH jacket reduces toxic smoke and corrosive gases in case of fire, improving safety in confined or public spaces.

Suitable for

• Internal building backbone and horizontal connections
• Data centers and server rooms for short-reach multimode links
• LAN, campus networks, and telecom closets
• Environments requiring LSZH-rated cabling

Key specifications

• Length: 1 m
• Fiber type: Multimode OM1 (62.5/125 µm)
• Configuration: Duplex
• Connectors: SC to ST
• Jacket: LSZH (Low Smoke Zero Halogen)
• Brand: ACT
• MPN: RL2001
• EAN: 8716065170788

How to use

Inspect connector end-faces before installation and clean if necessary to ensure optimal transmission. Plug the SC connector into the SC adapter or port and the ST connector into the matching ST port or adapter, ensuring secure and correct orientation. Route the cable without sharp bends and avoid excessive tension; maintain the manufacturer's minimum bend radius for multimode fiber. For duplex links, match transmit (Tx) and receive (Rx) channels between connected devices.

Recommendations

For reliable performance, use this cable for short-reach multimode connections and avoid replacing multimode OM1 with higher-performance fibers where longer reach or higher bandwidth is required. Store and handle connectors in protective caps until installation and perform end-to-end testing after connection.
