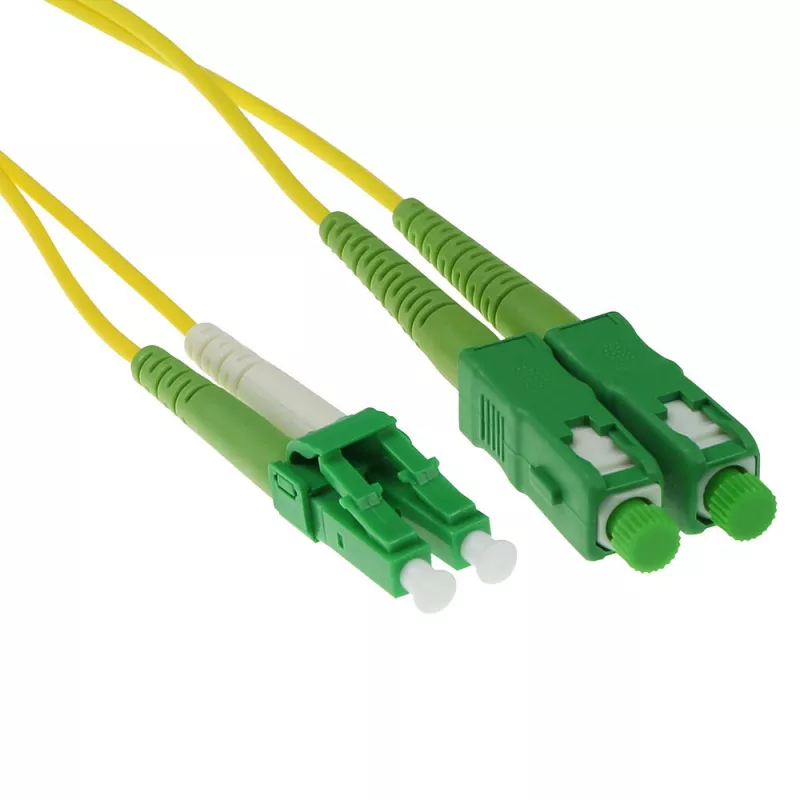

ACT 10 meter LSZH singlemode 9/125 OS2 duplex glasvezel-patchkabel met LC/APC8 en SC/APC8 stekkers

The ACT 10 meter LSZH Singlemode 9/125 OS2 Duplex LC/APC8 SC/APC8 fiber patch cable provides a 10 m duplex connection with high-quality LC/APC8 and SC/APC8 connectors and a 9/125 µm OS2 singlemode fiber core. Its LSZH outer jacket reduces smoke and halogen emissions for safer indoor deployment while maintaining optical performance suitable for data centers and telecom links.

Advantages

Each cable receives an individual test report for insertion loss (IL) and return loss (RL) and the end faces are 100% inspected. Laser-precision cleaving, Grade A fiber and APC polish ensure consistent low loss and reliable optical performance across connections.

Suitable for

• Data center interconnects and patching
• Telecommunications links and backbone connections
• High-density fiber cabinets and optical panels
• Indoor installations requiring low-smoke, zero-halogen cabling

Key specifications

• Length: 10 meter
• Fiber type: Singlemode 9/125 µm OS2
• Configuration: Duplex
• Connectors: LC/APC8 to SC/APC8
• Jacket: LSZH (Low Smoke Zero Halogen)
• End-face inspection: 100% inspected
• Testing: Individual IL and RL test report

How to use

Route the duplex fiber cable between devices or patch panels, avoiding sharp bends and mechanical stress. Secure the cable with appropriate fiber management accessories to maintain bend radius and prevent connector strain. Connect LC/APC8 and SC/APC8 ends to matching APC-angled ports, ensuring connectors are clean before mating to preserve the inspected end-face quality.

Recommendations

Store and handle the cable in a clean environment; clean connectors with approved fiber cleaning tools before insertion and follow the provided IL/RL test report for verification after installation.
