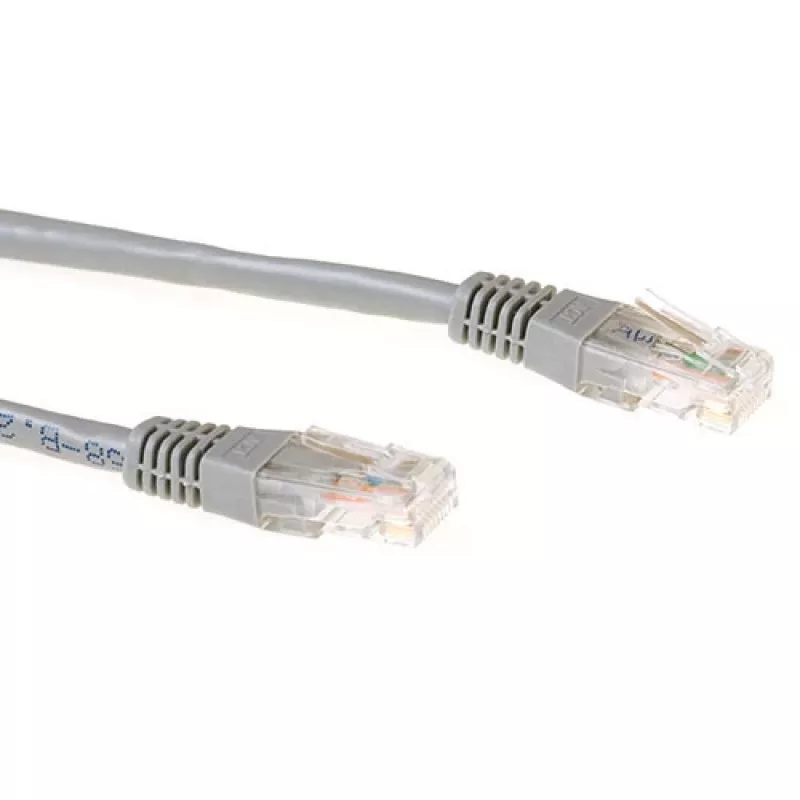

ACT Grijs 10 meter LSZH U/UTP CAT6 patchkabel met RJ45-stekkers

The ACT Grey 10 meter LSZH U/UTP CAT6 patch cable with RJ45 connectors provides a 10 m connection for network devices. Constructed as U/UTP CAT6 with AWG#24 conductors, grey LSZH sheath and RJ-45 plugs with 50µ gold contacts, it is intended for indoor networking where low smoke and zero halogen properties are required.

Advantages

The cable supports high-speed Ethernet transmission typical for CAT6 standard and uses 50 µ gold-plated contacts on RJ45 connectors to improve contact reliability. The LSZH sheath reduces smoke and halogen emissions in case of fire, and the 10 m length offers flexibility for device placement without additional couplers.

Suitable for

• Wired Ethernet connections between switches, routers and endpoints
• Office and home network installations
• Data/voice connections where LSZH is required

Key specifications

• Cable type: U/UTP CAT6
• Length: 10 m
• Conductors: AWG#24
• Connectors: RJ-45 — both ends
• Contacts: 50 µ gold plated
• Sheath: LSZH (Low Smoke Zero Halogen)
• Colour: Grey (Pantone Cool Grey 8C)

How to use

Plug one RJ-45 connector into the network port of your switch, router or device and the other end into the destination port. Ensure connectors are fully inserted until the latch clicks. Route the cable to avoid sharp bends and mechanical stress; do not exceed recommended pull forces. For fixed installations, secure the cable with suitable clips or ties compatible with LSZH sheathing.

Recommendations

For optimal performance, use the cable within typical indoor networking environments and avoid exposure to direct sunlight or outdoor weather. If used in structured cabling, follow TIA/EIA or local wiring standards for termination and testing.
