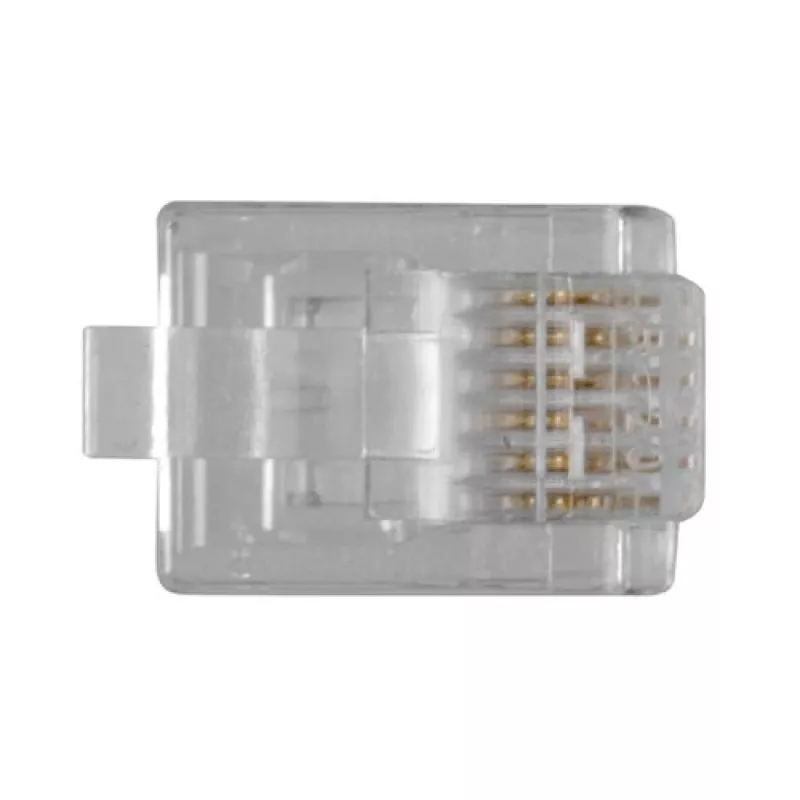

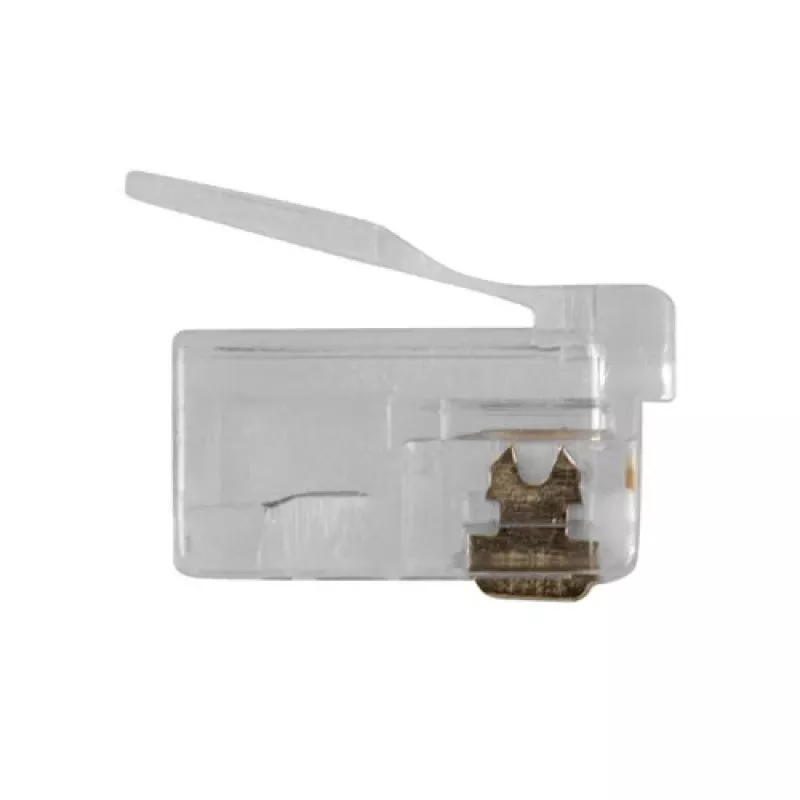

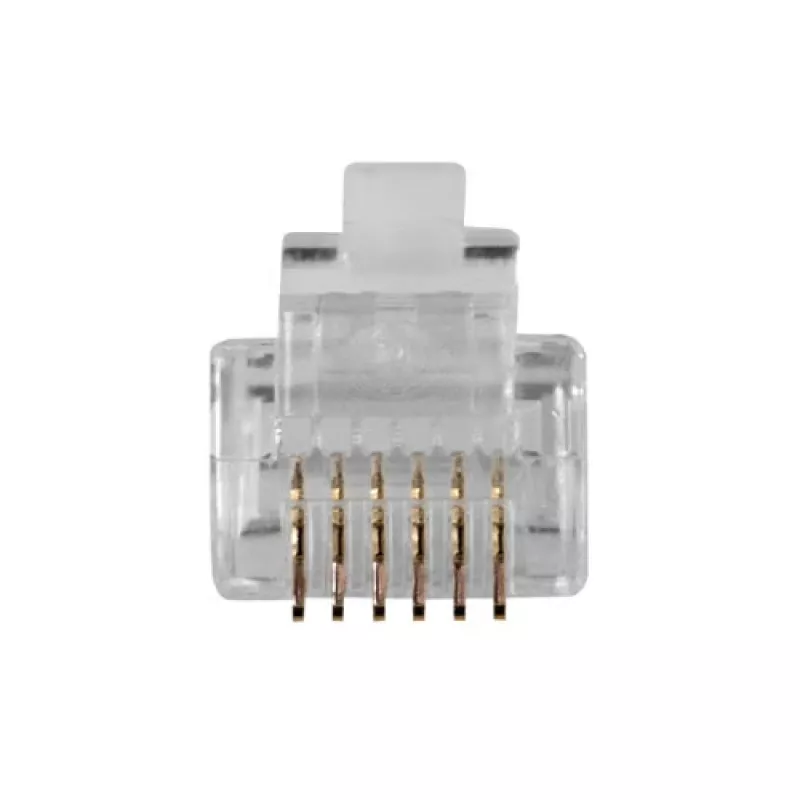

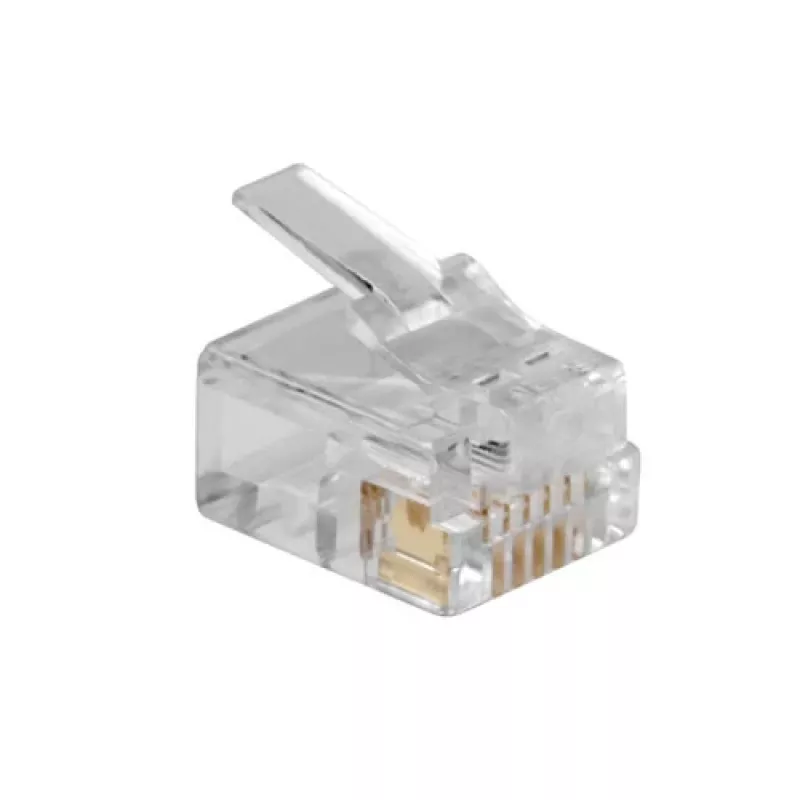

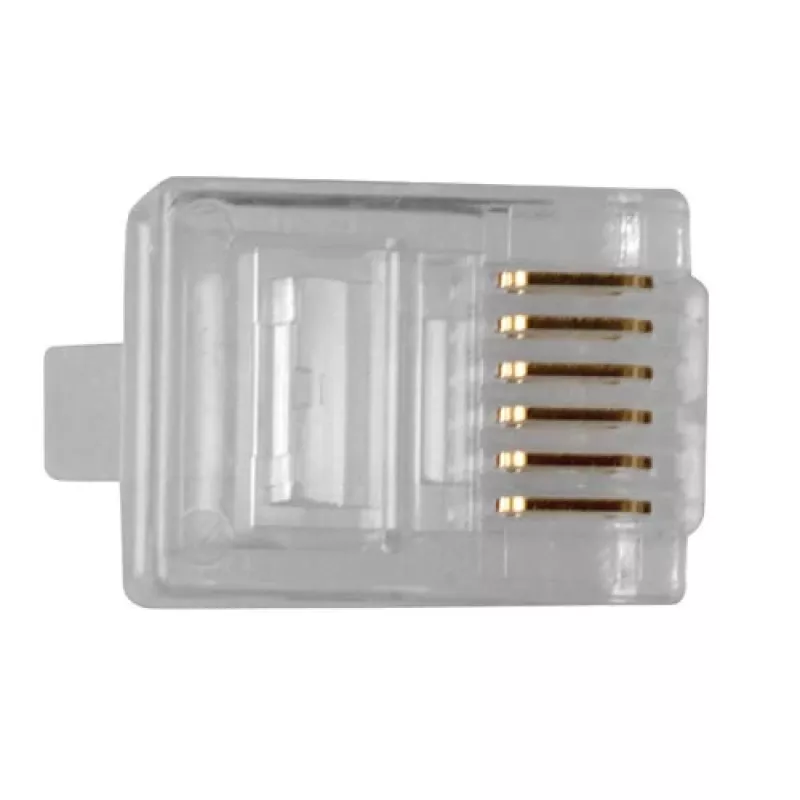

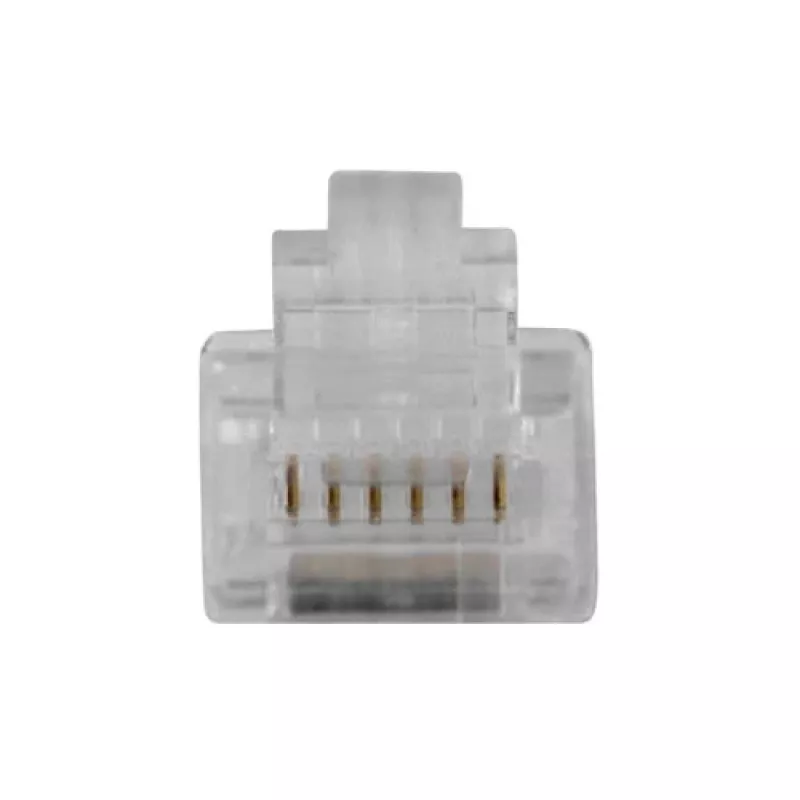

ACT RJ12 (6P/6C) modulaire stekker voor platte kabel

The ACT RJ12 Modular Connector (6P/6C) TD106 is a white modular connector designed for use with flat cables. It provides a standard RJ12 interface for telephony and low-speed data connections, offering a compact form factor and compatibility with RJ-12 male jacks.

Advantages

The connector is built for reliable electrical contact with flat cable conductors and offers mechanical durability for repeated insertions. Its standard 6P/6C pin layout ensures compatibility with common RJ12 devices and cabling, while the white housing simplifies visual identification and installation.

Suitable for

• Telephone handsets and PBX extensions
• Low-speed data links using 6P/6C wiring
• Flat cable assemblies in telecom or control panels

Key specifications

• Type: RJ12 modular connector (6P/6C)
• Compatible cable style: flat cable
• Color: white
• Brand: ACT
• Manufacturer part number (MPN): TD106
• EAN: 8716065132151

How to use

Strip the flat cable to expose the conductors to the recommended length for the connector, align the conductors with the 6 positions, and insert the cable fully into the connector body. Use an appropriate crimping tool or insertion press designed for modular flat-cable connectors to secure the contacts and ensure a reliable electrical and mechanical connection. After crimping, inspect the termination to confirm correct conductor seating and test continuity to verify the connection.

Recommendations

Use the connector with flat cables that match the conductor spacing and thickness intended for 6P/6C modular terminations. Store in a dry environment and avoid excessive strain on the cable near the termination to maintain long-term reliability.
