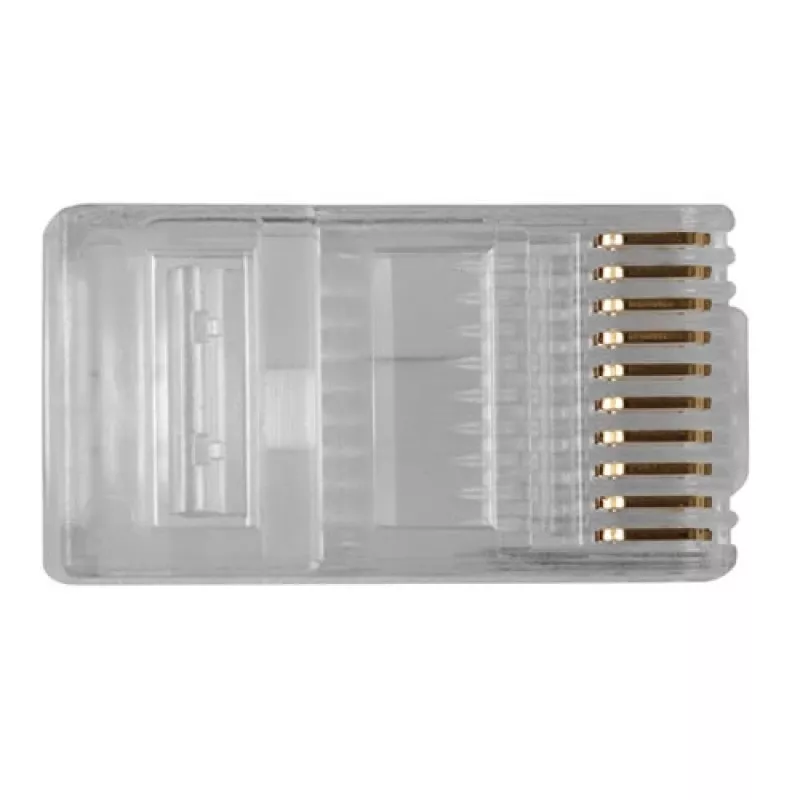

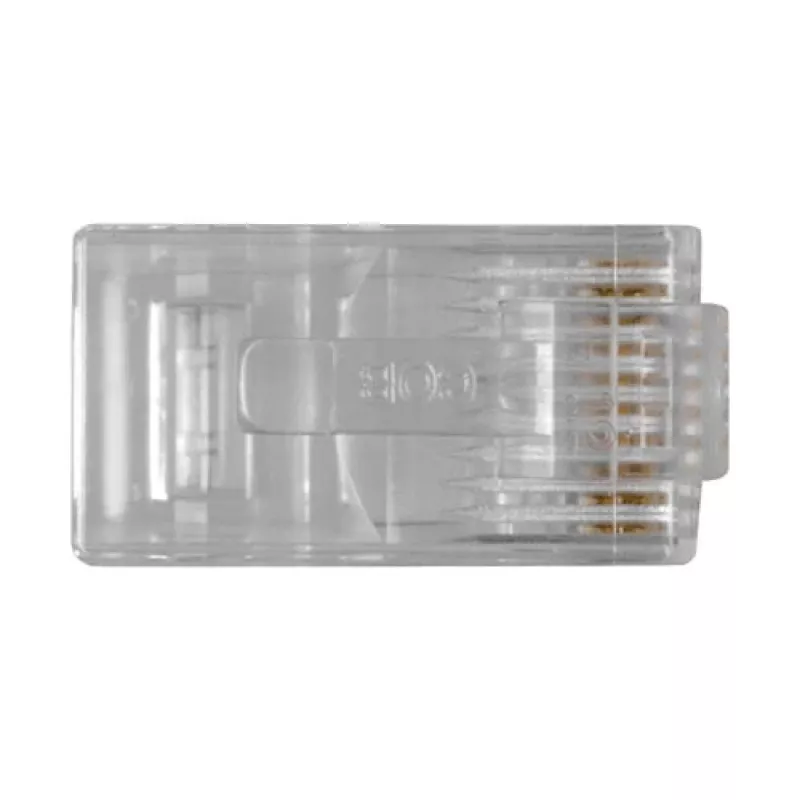

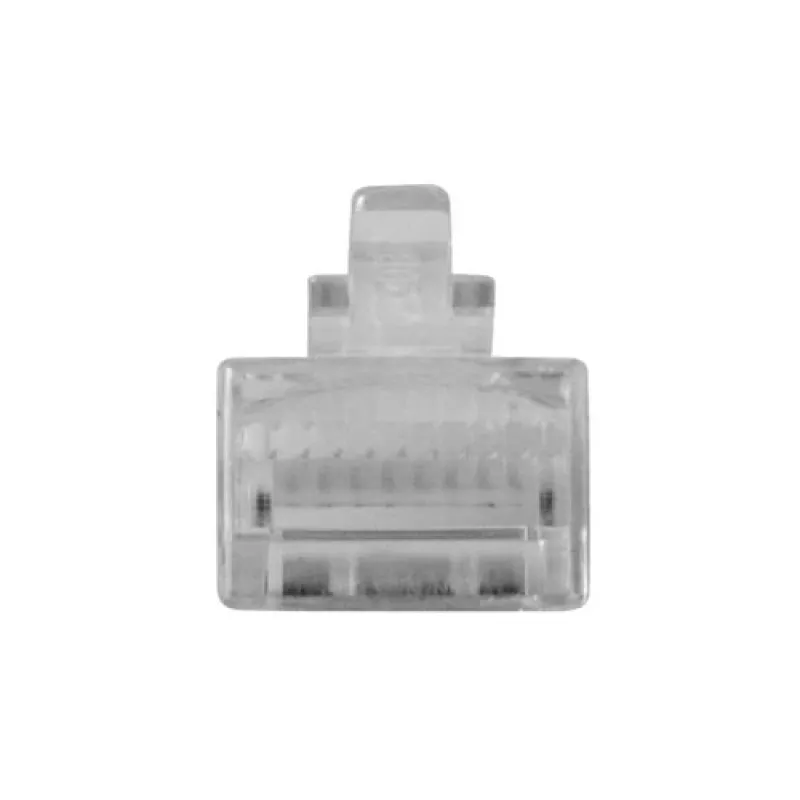

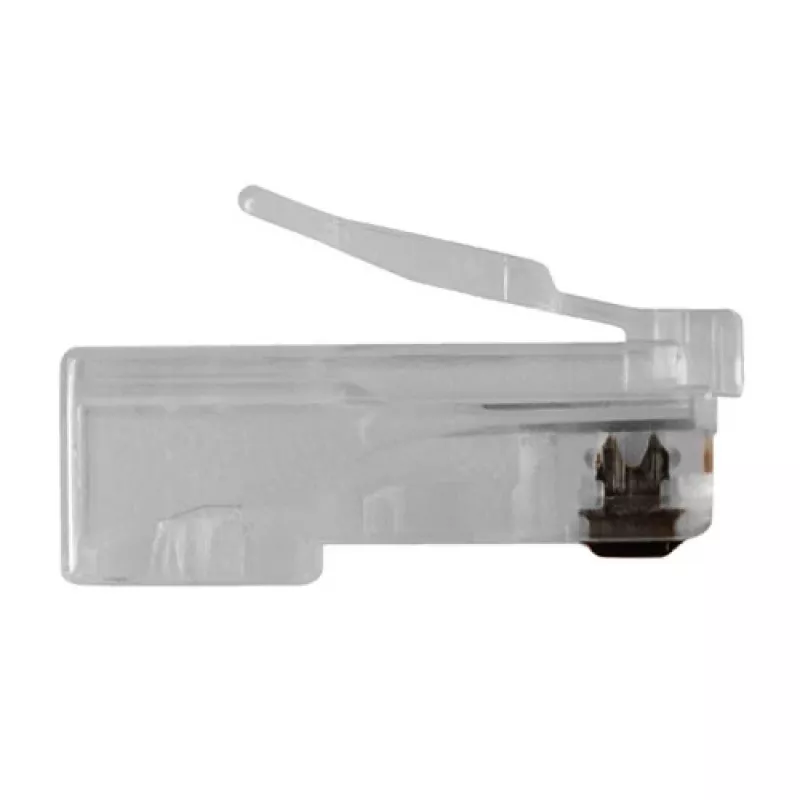

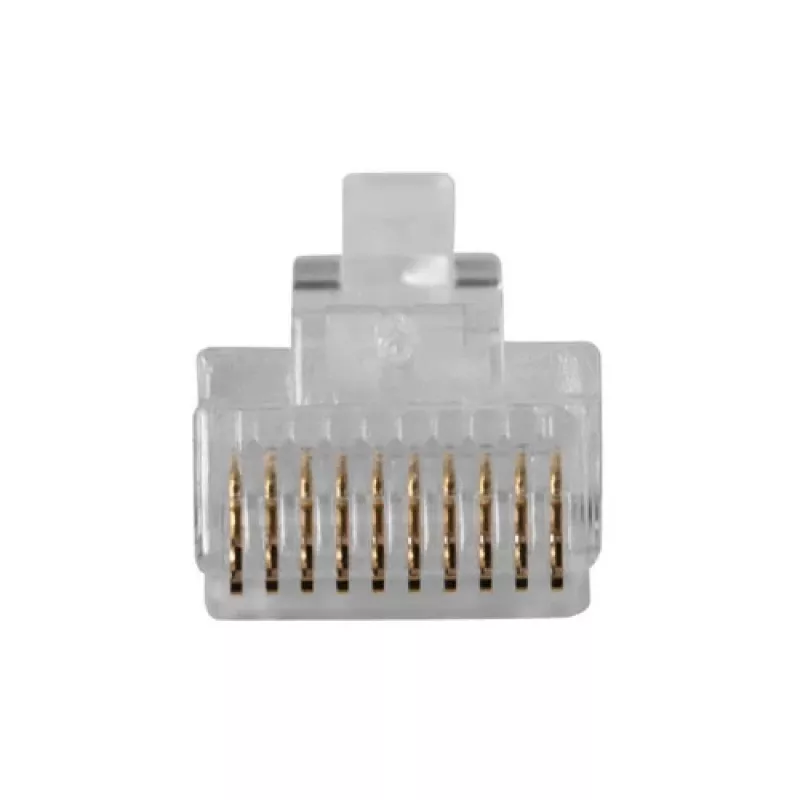

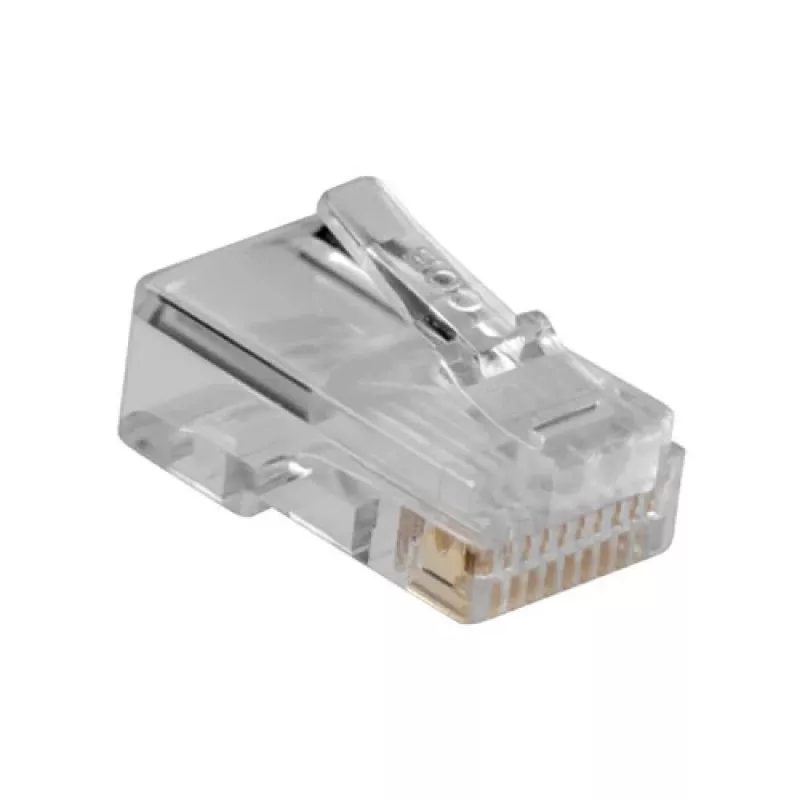

ACT RJ48 (10P/10C) modulaire stekker voor platte kabel

The ACT RJ48 modular connector for flat cable TD110 is a 10-position, 10-contact connector engineered for telecommunications and data transmission applications. Supplied in packs of 25, this connector is intended for use with flat cables and provides a compact, reliable interface for voice and data lines where RJ48 termination is required. Its form factor suits high-volume installations and professional wiring environments.

Advantages

The connector offers a standardized 10P/10C configuration that supports consistent pin alignment and solid electrical contact. Its design permits straightforward insertion of flat conductors and stable retention once crimped, reducing the risk of intermittent connections. The compact footprint eases routing in tight spaces and cabinets, while the packaged quantity supports bulk deployment without frequent reordering.

Suitable for

• Telecommunications punchdown and patch panel terminations using flat cable
• Installation and maintenance of voice and data lines in commercial buildings
• Bulk wiring projects where multiple identical terminations are required

Key specifications

• Contact configuration: 10 positions, 10 contacts
• Compatible cable type: flat telephone/data cable
• Package quantity: 25 connectors per pack
• Connector form factor: modular RJ48 footprint for 10-conductor terminations
• Mounting/termination method: crimp or IDC style suitable for flat conductors

How to use

Strip the flat cable to expose the conductors to the length recommended for the connector, align the conductors with the corresponding positions of the RJ48 connector, and insert them fully into the contact slots. Use a compatible crimping or insertion tool to secure the conductors and ensure proper contact pressure. After termination, inspect each contact visually or with a continuity tester to confirm correct wiring and reliable connections before installation into panels or equipment.

Recommendations

For consistent results, use a tooling solution that matches the connector profile and verify conductor seating before crimping. Store connectors in their original packaging until use to prevent contamination of contacts. When performing bulk installations, test representative terminations periodically to detect wiring or tool wear issues early.
