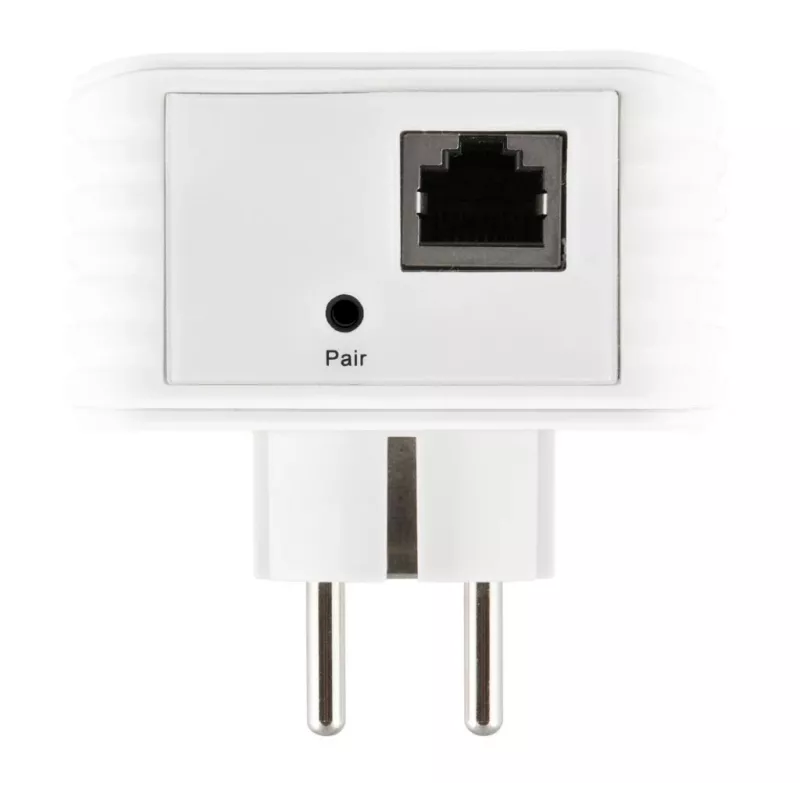

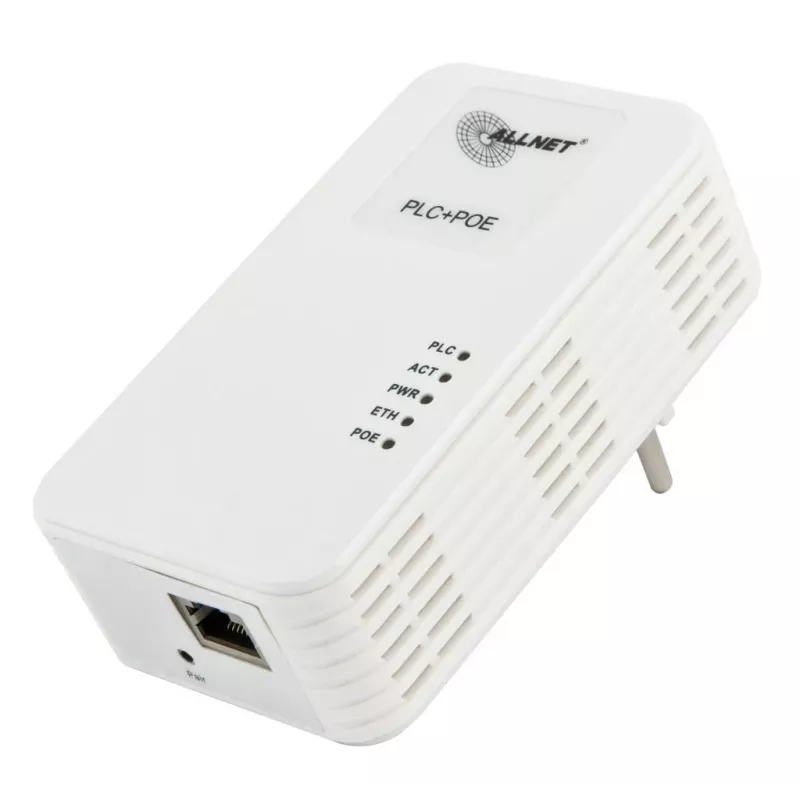

ALLNET ALL1681203-CH Powerline 1200 Mbps Gigabit PoE+ bridge met geïntegreerd stopcontact

Deliver up to 1200 Mbps over existing electrical wiring with this HomePlug AV2 Powerline bridge, featuring Gigabit Ethernet and IEEE 802.3at PoE+ output up to 30 W.

Overview

The ALLNET ALL1681203-CH is a Powerline adapter that transforms your home or office electrical circuits into a high-speed network backbone. It complies with HomePlug AV2 and IEEE 1901 standards, delivering data rates up to 1200 Mbps. A single Gigabit Ethernet port provides 10/100/1000 Mbps connectivity, while integrated Power over Ethernet Plus (PoE+) supplies up to 30 W to connected devices such as IP cameras, access points, or VoIP phones. An integrated Type F (Schuko) pass-through socket ensures no power outlet is lost. SmartLink technology optimizes performance and reduces power consumption, with standby draw below 0.5 W.

What stands out

• HomePlug AV2 Powerline with up to 1200 Mbps throughput
• Gigabit Ethernet port (10/100/1000 Mbps)
• IEEE 802.3at PoE+ output up to 30 W (802.3af compatible)
• Integrated Type F (Schuko) pass-through socket
• 128-bit AES encryption for secure data transmission
• SmartLink power saving technology
• Supports up to 16 Powerline nodes
• Web-based management and Windows utility

Technical details

• Powerline Standard: HomePlug AV2, IEEE 1901
• Powerline Data Rate: Up to 1200 Mbps
• Ethernet Port: 1 x Gigabit RJ45
• Ethernet Data Rate: 10/100/1000 Mbps
• PoE Standard: IEEE 802.3at (PoE+), IEEE 802.3af compatible
• PoE Output Power: Max. 30 W
• Security: 128-bit AES encryption
• Maximum Range: Up to 300 m over electrical wiring
• Integrated Socket: Yes, Type F (Schuko) pass-through
• Power Saving: SmartLink technology
• QoS Support: Yes
• LED Indicators: Power, Powerline, Ethernet, PoE
• Power Consumption (Max): 34.5 W (Powerline + PoE output)
• Power Consumption (Standby): < 0.5 W
• Operating Temperature: 0°C to 40°C
• Operating Humidity: 10% to 90% non-condensing
• Certifications: CE, RoHS
• Plug Type: Type F (Schuko)
• Maximum Powerline Nodes: 16
• Management: Web-based GUI, Powerline Utility Software (Windows)

Our verdict

A versatile Powerline adapter that combines high-speed networking with PoE+ power delivery, ideal for connecting remote devices without additional cabling.
