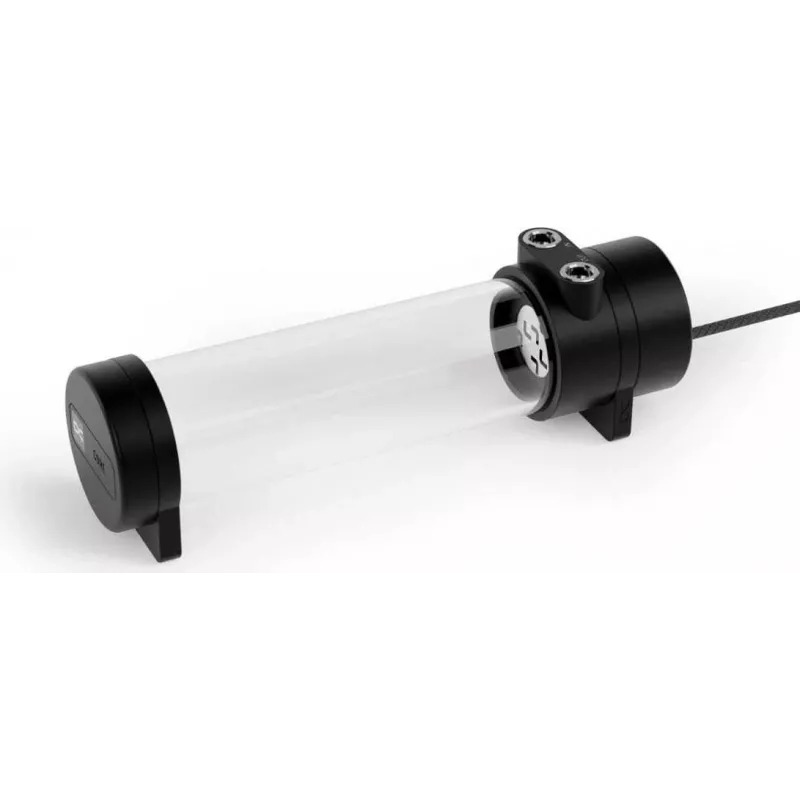

Alphacool Core 70 buisreservoir met VPP/D5 Apex PWM pomp (13742)

The Alphacool Core 70 Tube Reservoir with VPP/D5 Apex PWM Pump stands out by integrating a high-performance D5 pump directly into a compact, transparent reservoir, eliminating the need for separate pump tops and reducing loop complexity. This all-in-one unit is ideal for custom water-cooling loops where space is at a premium but performance cannot be compromised.

Highlights

• Integrated Alphacool VPP/D5 Apex PWM pump with speeds from 2500 to 4500 RPM for precise flow control.
• 70 mm diameter PMMA tube with a 160 mm length, offering approximately 250 ml of coolant capacity.
• Five G1/4" ports (three top, two bottom) for flexible loop routing.
• Addressable digital RGB lighting via a 3-pin JST connector (5V) for stunning visual effects.
• Universal mounting system compatible with 120 mm and 140 mm fan mounts.

In daily use

This reservoir-pump combo delivers reliable, quiet operation. The PWM control allows the pump to adjust speed based on system load, balancing performance and acoustics. The clear PMMA tube lets you monitor coolant level and check for air bubbles at a glance, while the acetal end caps provide durability and a clean aesthetic. The integrated RGB lighting can be synchronized with your motherboard or controller for a cohesive build theme.

Full specifications

• Product type: Tube reservoir with integrated pump
• Reservoir series: Alphacool Core 70
• Reservoir tube material: PMMA (acrylic)
• Reservoir end cap material: Acetal (POM)
• Reservoir diameter: 70 mm
• Reservoir tube length: 160 mm
• Total height with pump: 200 mm
• Fill volume: approx. 250 ml
• Pump model: Alphacool VPP/D5 Apex PWM
• Pump type: D5-compatible centrifugal pump
• Pump speed: 2500 - 4500 RPM (PWM controlled)
• Max flow rate: 340 L/h
• Max head pressure: 3.7 m
• Input voltage: 12V DC
• Power connector: 4-pin PWM, SATA power
• Ports: 5x G1/4" (3x top, 2x bottom)
• Digital RGB lighting: Yes, 3-pin JST (5V)
• Mounting options: Universal mounting, 120/140 mm fan mount compatible
• Max operating temperature: 60°C

Final note

With its robust construction, integrated D5 pump, and versatile mounting, the Alphacool Core 70 is a top choice for enthusiasts seeking a compact, high-performance reservoir-pump solution.
