AQARA Panel Hub S1 Plus (MP-K03D) – WLAN-touchpaneel met Zigbee-hubfunctie

Highlights:

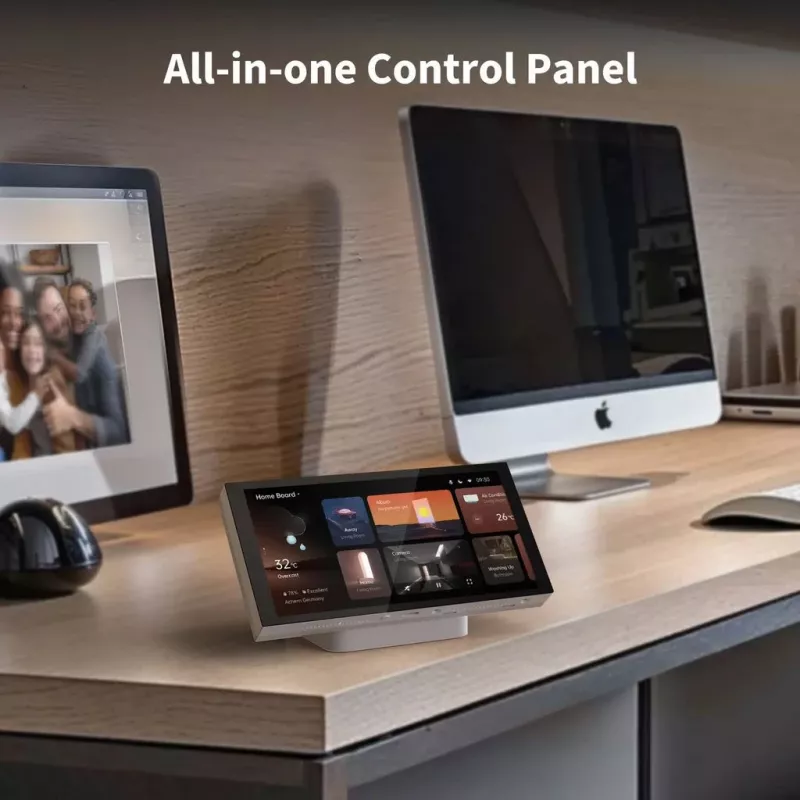

• All-in-one Control Panel: Built-in 2 relay switches and 6 wireless switches①, it can help you manage and control your smart Aqara devices②in one panel. It will match the most suitable personalized dashboard according to your devices in the house to facilitate you to get started quickly. And users can also fine-tune parameters of Aqara devices, whether it is precise adjustment of CCT/RGBIC of lights, custom curtain settings, and thermostat temperature levels.
• Matter Bridge & Zigbee 3.0 Hub: The smart Panel can be used as a powerful Aqara Zigbee hub, compatible with dual-band Wi-Fi—2.4GHz& 5GHz, to achieve efficient collaboration and intelligent linkage with the full range of Aqara sub-devices. With Matter over Bridge②, the panel connects our lineup of Aqara Zigbee devices to Matter ecosystems such as Apple Home, Alexa, Google Home.

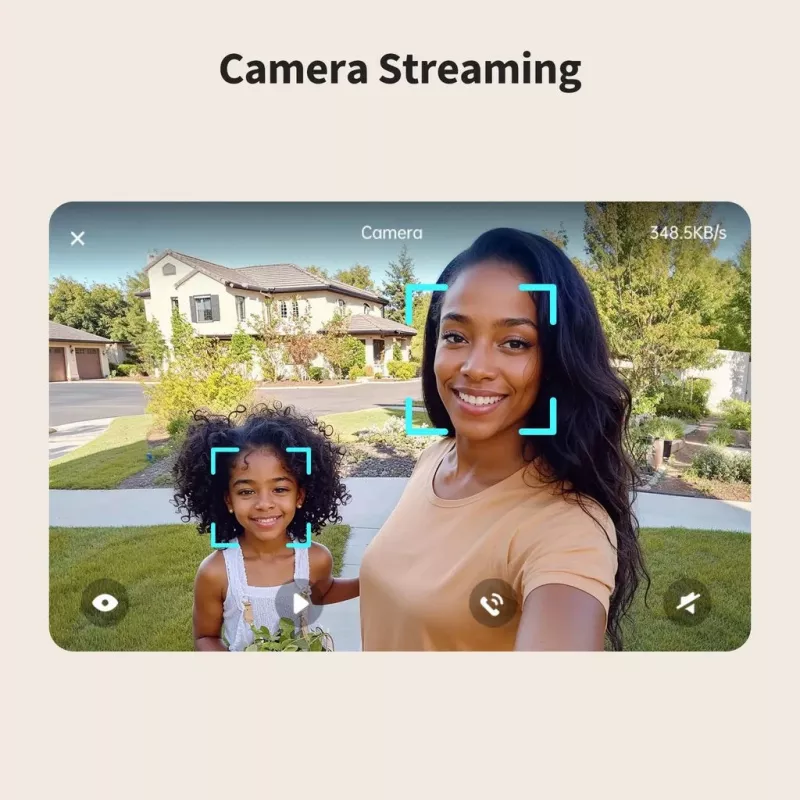

• Camera Streaming③: Users can stream the video from Aqara smart Doorbell G4, when a visitor arrives, you can see the visitor directly and conduct two-way communication with them through the panel, and you can also unlock the Aqara smart door lock directly on the screen. In addition, you can also manage multiple Aqara cameras through the panel. All of these help improve the coordination between devices and the efficiency of smart home management for users.
• Mics for Voice Control: In addition to app/touch screen/switch control, the panel also equipped with four advanced, highly sensitive microphones, ensuring precise and reliable voice control. Users can use Aqara Copilot*, Aqara's self-developed voice assistant, to control devices and scenes, check the weather, and more by voice. Just say “Hi, Aqara” or “Aqara” to activate and use it. Voice activation can be used up to 10 meters in an unobstructed area.

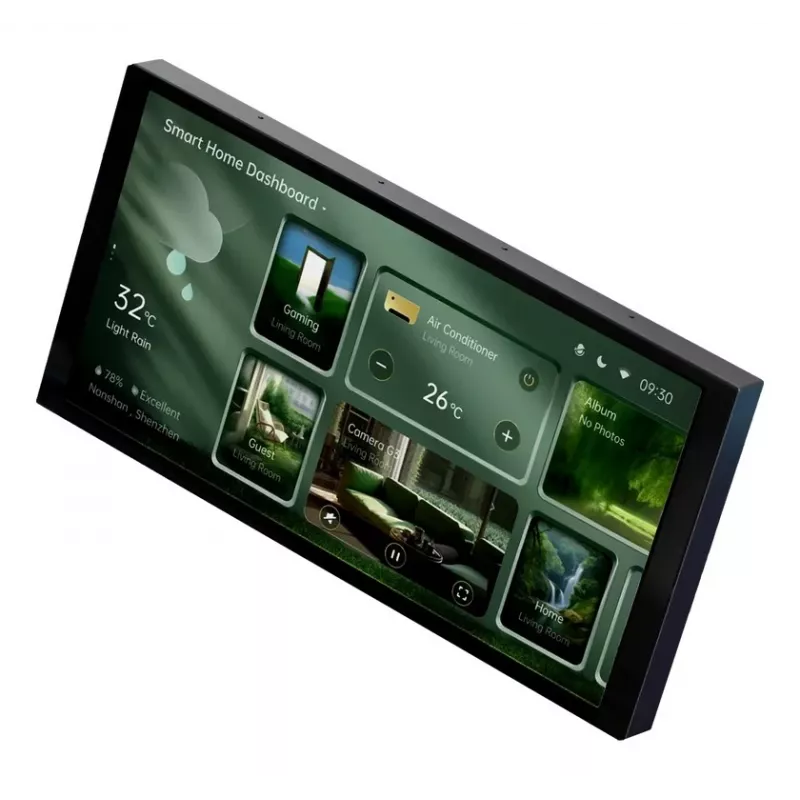

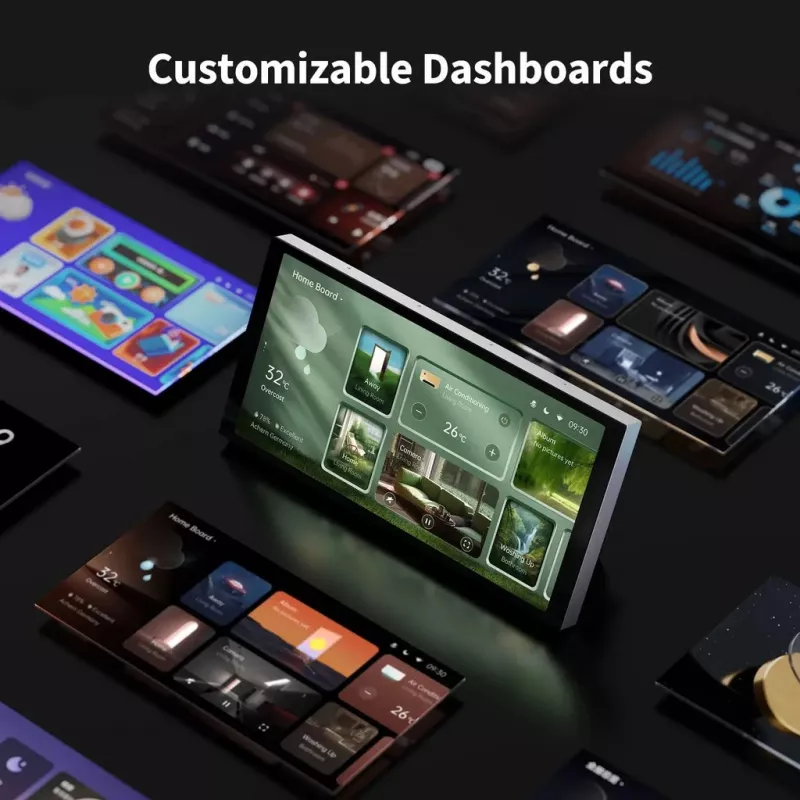

• Editable Card Function and Flexible Dashboards④: Users can quickly add Aqara devices to the screen by adding cards on the screen, and arrange multiple scenes and multiple devices according to their usage habits, combine their favorite board themes. Up to 10 boards can be configured, providing users with a more personalized and convenient UI interface.
• Power Monitoring: The panel monitors the power consumption of connected devices and provides daily/weekly/monthly energy consumption reports. Users can use these data reports in Aqara Home to optimize their daily electricity usage to reduce consumption and increase sustainable energy use.
• Proximity Screen Activation: The proximity activation⑤ feature supports triggering the screen by distance automatically, up to 2.5 meters away, which makes your home smarter and more interactive and help reduce light pollution. Users can also set auto-brightness in the panel to ensure optimal visibility and protect your eyes. The Panel's default automation allows users to set automation according to their preferences when someone approaches, bringing users a convenient experience.

Disclaimers:

• ① This feature might be unavailable in some third-party Matter ecosystems, but is already supported by the device. To guarantee this functionality, we suggest connecting the device to Aqara Home.
• ② To use the device with a particular Matter ecosystem, a Matter Controller of this ecosystem is required.
• ③ Only Aqara camera devices can be streamed by the time of launch，and only one camera feed is shown at once.
• ④ A dashboard can be associated with up to 60 cards. Cards can be devices or scenes. (maximum dashboard: 10). And dashboards setup can be copied from your Aqara Home app to the screen. Available Aqara device types and model may vary based on current compatibility.
• ⑤ Proximity activation distance can be set within five different settings, from near to far. This distance setting function will be available only in Aqara Home.

Specifications:

• Product Name: Panel Hub S1 Plus EU
• Model: MP-K03D
• Dimensions: 172 × 86 × 42.2 mm (6.77 × 3.39 × 1.66 in.)
• Wireless Protocols: Wi-Fi IEEE 802.11 a/b/g/n/ac 2.4GHz/5GHz, Zigbee IEEE802.15.4, Bluetooth
• Resolution: 1440 × 720
• Input Power: 200–240 V, 50/60 Hz, Max 8 A (Resistive Load), μ
• USB-C Input: 5V 2A
• Rated Load Single channel: Up to 300W
• Dual channel: One channel can support up to 200W, and the other up to 100W.
• Operating Temperature: -10 °C ~ 40 °C (14 °F ~ 104 °F)
• Operating Humidity: 0 ~ 95% RH, no condensation

What is in the Box:

• Panel Hub S1 Plus × 1,
• User Manual × 1,
• Compliance Statement × 1,
• Screw Kit × 2
