AXIS 15-100 mm f/1.9 P-Iris CS-mount varifocale bewakingsobjectief

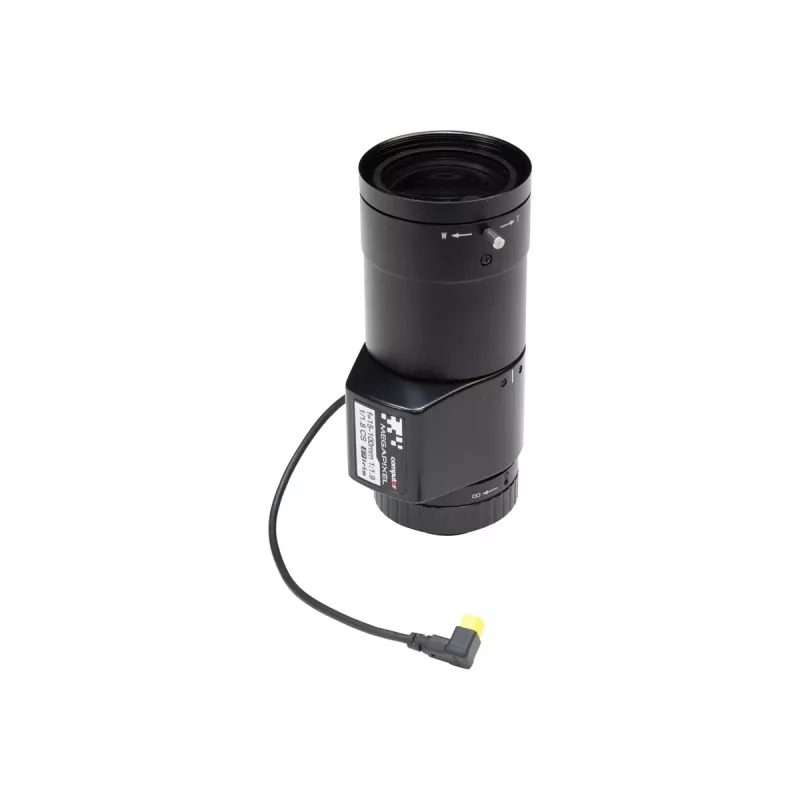

For surveillance environments that demand both wide-area context and long-range detail, the AXIS 03465-001 varifocal lens eliminates the need to swap optics when coverage requirements evolve. Its 15–100 mm focal range spans a 6.7x optical zoom, while the P-Iris mechanism keeps exposure precise across changing light—unlike fixed-iris lenses that often struggle with flicker or overexposure. Built on a CS-mount and corrected for infrared, this lens pairs cleanly with day/night cameras up to 1/2.5" sensors, delivering sharp, colour-accurate video from 0.3 m to the far end of a parking lot.

Highlights

• Varifocal 15–100 mm range with 6.7x optical zoom for flexible scene framing.
• P-Iris for automatic, precise aperture control—ideal for outdoor and variable lighting.
• CS-mount compatibility with sensors up to 1/2.5", including 1/2.7", 1/3", and 1/4".
• IR-corrected optics maintain focus under infrared illumination for true day/night operation.
• Manual focus and zoom locks allow secure, tamper-resistant setup in fixed installations.
• Robust metal and glass construction rated for -20 °C to 50 °C operation.

In daily use

Installers will appreciate the straightforward mechanical adjustments: set the focal length to capture a wide entrance, then fine-tune focus at the desired working distance. The P-Iris works with compatible AXIS cameras to optimise depth of field and light intake automatically, reducing the need for on-site iris tweaking. At 15 mm, the horizontal field of view reaches 20.8° on a 1/2.5" sensor—enough to monitor a lobby or loading bay—while at 100 mm it narrows to 3.1°, pulling distant license plates or faces into clear view. The minimum object distance of 0.3 m also allows close-up identification when needed.

Full specifications

• Lens type: Varifocal
• Focal length: 15–100 mm
• Maximum aperture: f/1.9
• Iris type: P-Iris
• Mount: CS-mount
• Sensor format: up to 1/2.5" (also 1/2.7", 1/3", 1/4")
• Horizontal field of view (1/2.5" sensor): 20.8° at 15 mm, 3.1° at 100 mm
• Optical zoom: 6.7x
• IR correction: Yes
• Focus control: Manual
• Zoom control: Manual
• Minimum object distance: 0.3 m
• Operating temperature: -20 °C to 50 °C
• Material: Metal and glass

Final note

The AXIS 03465-001 is a dependable choice for integrators who need a single lens to cover both overview and detail without sacrificing image quality or day/night performance.
