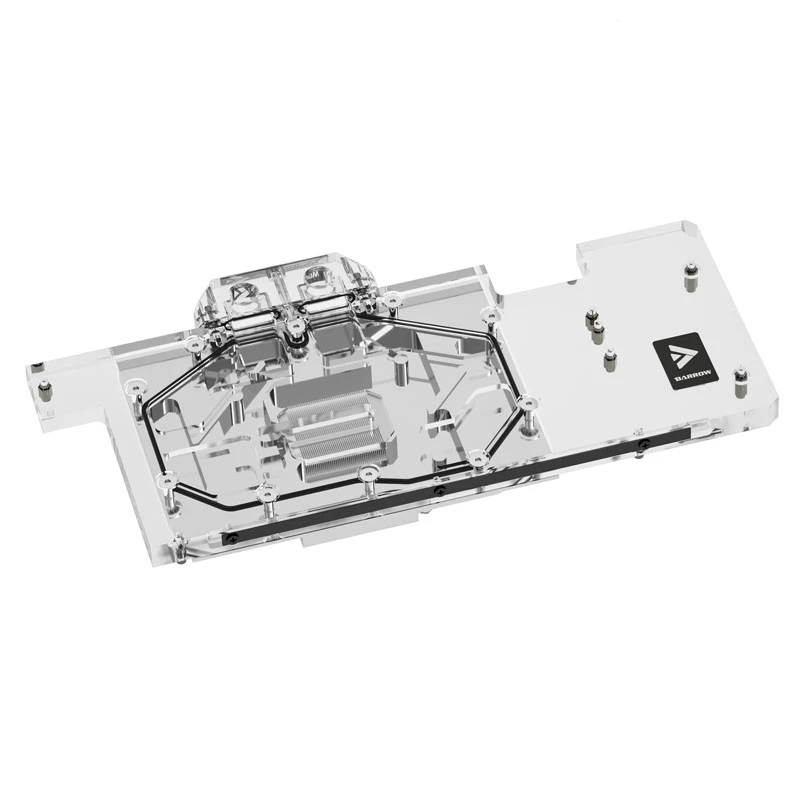

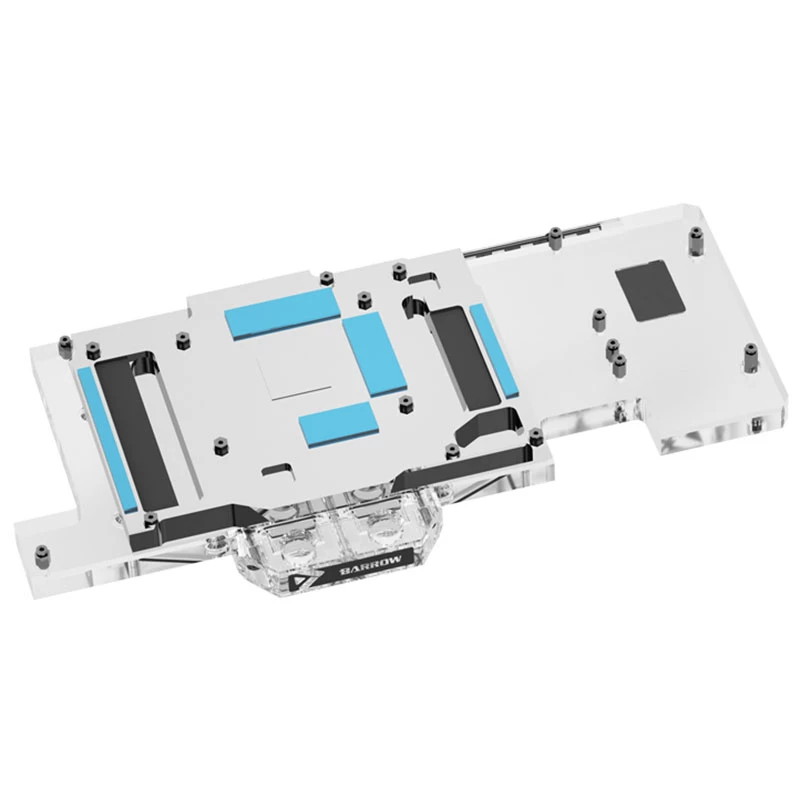

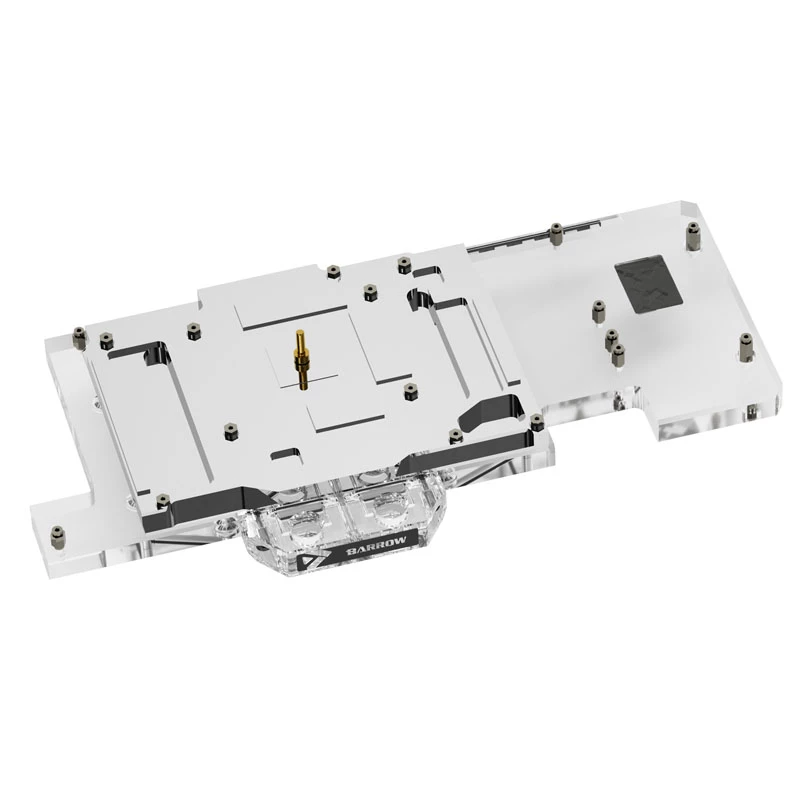

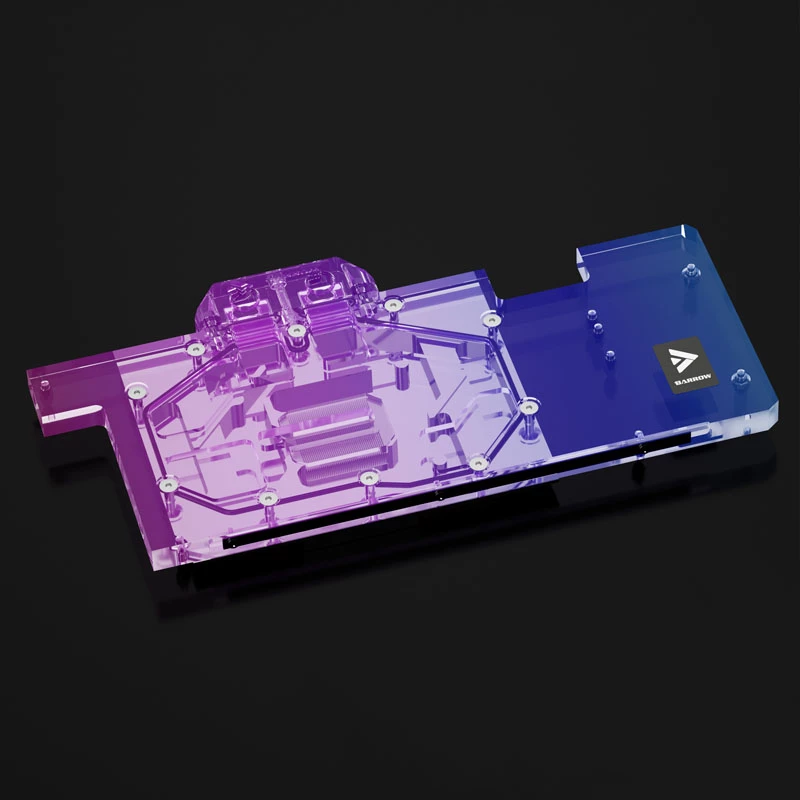

Barrow LRC2.0 full-coverage-gpu-waterkoeler voor ASUS TUF 3070 Aurora RGB (BS-AST3070-PA2)

Barrow LRC2.0 full coverage GPU water block for ASUS TUF 3070 Aurora RGB provides direct liquid cooling for the GPU core, memory modules and voltage regulation modules on compatible ASUS TUF 3070 Aurora RGB graphics cards. The block features a precision-machined cold plate and optimized internal coolant channels to improve heat transfer from hot components to the cooling loop. It is intended for integration into custom liquid cooling systems in high-performance desktop builds where reduced temperatures and quieter operation are required.

Advantages

The full-coverage design ensures contact with the GPU die, memory chips and VRM area to distribute cooling evenly across critical components. An optimized cold plate and channel layout promotes efficient coolant flow and lowers thermal resistance. Installation into a custom loop reduces air-cooling dependency, which can decrease fan speeds and overall system noise while enabling more stable operation under sustained loads and when applying overclocking.

Suitable for

• Custom liquid cooling loops in performance desktop PCs
• Users seeking lower GPU, memory and VRM temperatures
• Systems where reduced fan noise and quieter operation are desired
• Overclocking setups that require improved thermal headroom

Key specifications

• Full-coverage water block for ASUS TUF 3070 Aurora RGB-compatible PCB layout
• Precision-machined cold plate for direct contact with GPU die and memory/VRM components
• Optimized internal coolant channels for improved flow and heat transfer
• Material: nickel-plated copper cold plate with acrylic or acetal top (model-dependent)
• Standard G1/4" threaded inlet/outlet ports for integration into custom loops
• Support for full liquid cooling of GPU core, memory modules and VRM area

How to use

Integrate the water block into a properly assembled custom liquid cooling loop following manufacturer instructions for loop filling, leak testing and component mounting. Remove the original air cooler from the ASUS TUF 3070 Aurora RGB card, clean the GPU die and contact surfaces, then apply an appropriate thermal interface material between the GPU and the cold plate. Align the block with the PCB so that fasteners and mounting points match, secure the block evenly to avoid uneven pressure, and connect inlet and outlet fittings to the loop using compatible tubing and G1/4" fittings. Perform a thorough leak test before powering the system and monitor temperatures during initial operation.

Recommendations

Use non-conductive or manufacturer-recommended cooling fluids, ensure all fittings are tightened to specification, and follow a 24-hour leak test with the system powered off but loop pump running. Maintain regular coolant changes and inspection of fittings, tubing and seals to preserve cooling performance and prevent contamination. Verify compatibility with the ASUS TUF 3070 Aurora RGB PCB revision before purchase and installation.
