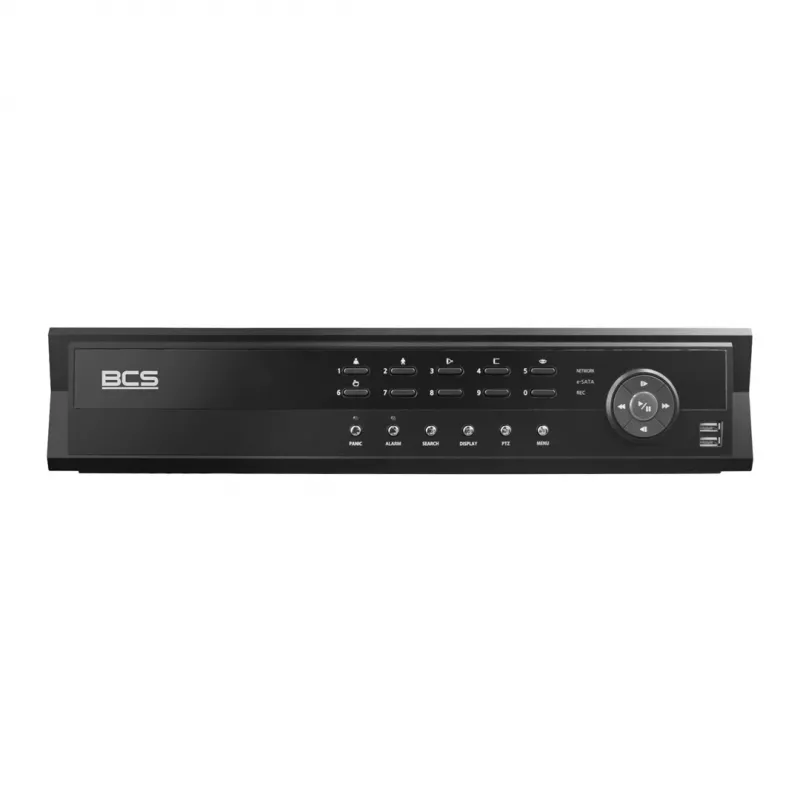

BCS 16-kanaals IP NVR 4K UHD 16-PoE met 8TB HDD BCS-U-NVR1606-A-4K-16P(8TB)

The BCS-U-NVR1606-A-4K-16P(8TB) is a high-performance 16-channel IP network video recorder designed for professional surveillance systems. With 16 built-in PoE ports and an 8TB pre-installed hard drive, it provides a complete recording solution for medium to large installations. Supporting up to 8MP (4K UHD) resolution and H.265+ compression, it delivers exceptional video quality while saving bandwidth and storage.

Advantages

This NVR offers seamless integration with BCS IP cameras and supports smart analytics such as motion detection, line crossing, and intrusion detection. The embedded Linux operating system ensures stability and security. With 16 PoE ports (IEEE 802.3af/at), it simplifies installation by powering cameras directly over Ethernet, eliminating the need for separate power supplies.

Suitable for

• Retail stores, offices, warehouses, and commercial buildings requiring 16-channel surveillance
• Users needing 4K UHD recording with long-term storage (8TB included, expandable up to 20TB)
• Installations where PoE simplifies cabling and reduces costs

Key specifications

• 16 IP channels, max 8MP (4K UHD) recording
• 16 PoE ports (IEEE 802.3af/at)
• 8TB HDD pre-installed, max 20TB (2x 10TB)
• H.265+/H.265/H.264+/H.264 compression
• Incoming bandwidth: 160 Mbps
• 1x HDMI (up to 4K), 1x VGA (up to 1080p) output
• 1x Gigabit Ethernet, 1x USB 2.0, 1x USB 3.0
• 4 alarm inputs, 1 alarm output
• Audio: 1x RCA input, 1x RCA output
• Power supply: DC 48V
• Smart analytics: motion detection, line crossing, intrusion
• Mobile app support: BCS Manager, BCS View

Recommendations

For optimal performance, pair with BCS 4K IP cameras and use high-quality CAT6 cables. Ensure the NVR is placed in a well-ventilated area. The included 8TB HDD provides ample storage; for extended retention, upgrade to two 10TB drives.
