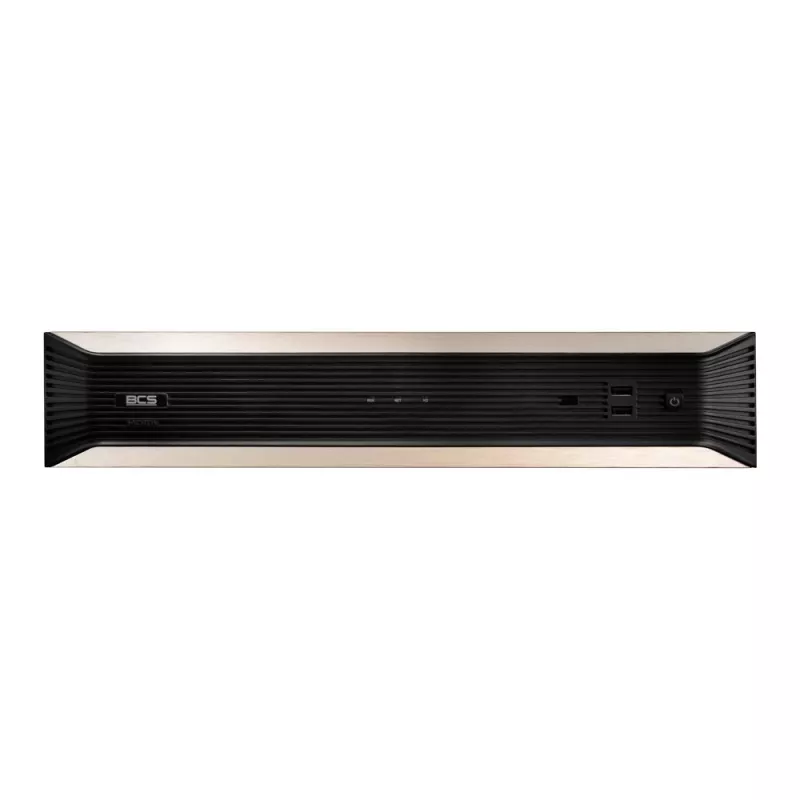

BCS 64-kanaals 4K AI netwerk-videorecorder, 8 bays RAID, 384 Mbps, gezichtsherkenning, ANPR, 2U rackmount

When a surveillance project demands massive channel density, deep AI analytics, and uncompromising data integrity, the BCS-P-NVR6408R-A-4K-AI2 steps far beyond conventional NVRs. This 64-channel recorder ingests up to 384 Mbps from IP cameras, decodes 12 MP streams, and presents them in crisp 4K resolution. Eight SATA III bays with RAID0/1/5/6/10 and JBOD protect up to 128 TB of evidence-grade footage, while dual Gigabit LAN ports ensure smooth multi-client access. Built-in AI engines handle perimeter protection, face detection and recognition, SMD Plus, and ANPR on dedicated channels, turning raw video into actionable intelligence.

Highlights

• 64 IP channels with 384 Mbps incoming/outgoing bandwidth for large-scale deployments
• RAID0/1/5/6/10 and JBOD across 8 SATA III bays, up to 16 TB per drive (128 TB total)
• AI analytics: perimeter protection (16 ch), face detection/recognition (4 ch), SMD Plus (16 ch), ANPR (4 ch)
• Dual HDMI and VGA outputs for independent 4K monitoring
• 16 alarm inputs and 8 alarm outputs for integration with sensors and sirens
• 2U rackmount chassis with front USB 3.0 and rear USB 2.0 ports

In daily use

Operators appreciate the recorder's ability to handle mixed camera resolutions without bottlenecks. The H.265+ compression reduces storage consumption while preserving forensic detail, and the dual Ethernet ports allow segmentation of camera and client networks. Face recognition and ANPR run on dedicated channels, enabling automatic alerts for watchlists or plate numbers. RAID5 or RAID6 configurations provide fault tolerance, so a single drive failure never compromises recorded evidence. The front USB 3.0 port simplifies local backup or firmware updates.

Full specifications

• Video input: 64 IP channels
• Max recording resolution: 12 MP (4000 × 3000)
• Max display resolution: 4K (3840 × 2160)
• Incoming/outgoing bandwidth: 384 Mbps each
• HDD bays: 8 × SATA III, up to 16 TB per drive (128 TB total)
• RAID levels: RAID0, RAID1, RAID5, RAID6, RAID10, JBOD
• Video outputs: 2 × HDMI, 1 × VGA
• Audio I/O: 1 × RCA input, 2 × RCA output
• Alarm I/O: 16 × input, 8 × output
• Network: 2 × RJ-45 Gigabit Ethernet
• USB: 1 × USB 3.0 (front), 2 × USB 2.0 (rear)
• Compression: H.265+, H.265, H.264+, H.264, MJPEG
• AI features: Perimeter Protection (16 ch), Face Detection/Recognition (4 ch), SMD Plus (16 ch), ANPR (4 ch)
• Form factor: 2U rackmount
• Power supply: AC 100–240 V, 50/60 Hz
• Operating temperature: -10 °C to +55 °C

Final note

For integrators and enterprises needing a high-capacity, AI-driven recording platform with RAID reliability, the BCS-P-NVR6408R-A-4K-AI2 delivers the performance and resilience that mission-critical surveillance demands.
