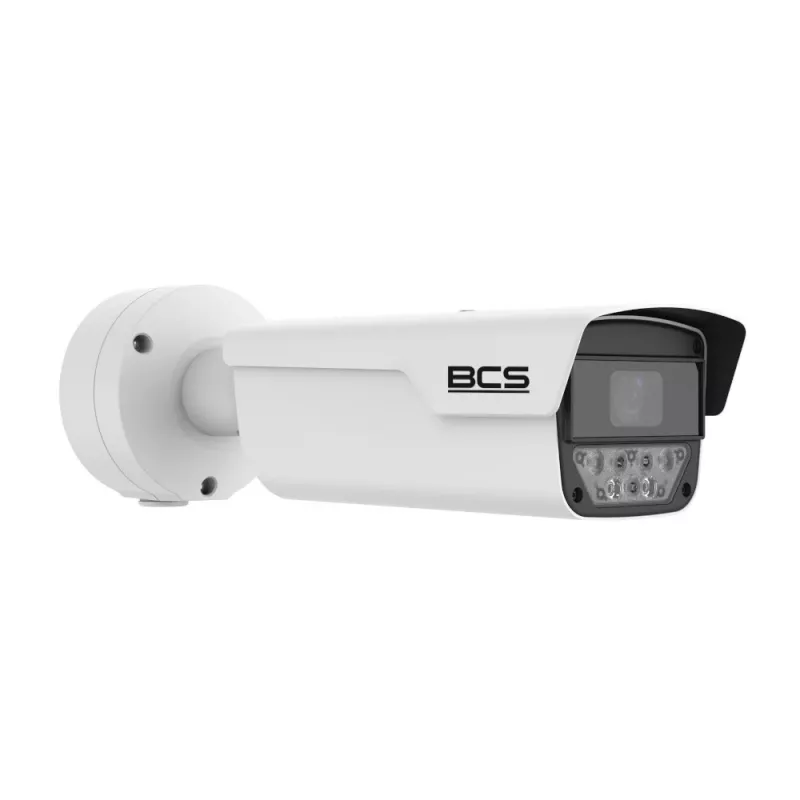

BCS Dual-Spectrum warmtebeeld- & 4MP zichtbare IP-camera, 256x192 warmtebeeld, 2,8-12mm varifocaal, IP67, PoE

For environments where early fire detection and precise temperature monitoring are non-negotiable, this BCS dual-spectrum IP camera pairs a 256x192 thermal sensor with a 4MP visible-light module. The uncooled VOx microbolometer delivers thermal sensitivity below 40 mK, revealing subtle heat signatures that conventional cameras miss, while the 2.8-12mm varifocal lenses on both channels allow flexible scene framing from a single mounting point.

Highlights

• Dual-spectrum imaging: 256x192 thermal + 2688x1520 visible, synchronized for accurate event verification
• Wide temperature measurement range from -20°C to +150°C with ±2°C accuracy, ideal for industrial monitoring
• Smart analytics: fire detection, intrusion, line crossing, and object classification reduce false alarms
• Rugged IP67 and IK10 housing withstands harsh weather and vandalism, operating from -30°C to +60°C
• Flexible power via 12V DC or PoE (802.3af), simplifying installation in remote locations

In daily use

Mount the camera indoors or outdoors and connect it to your NVR or VMS over a standard Ethernet cable. The varifocal lenses let you adjust the field of view during setup without swapping hardware. Thermal and visible streams can be viewed side by side or blended, helping operators quickly assess whether a heat anomaly is a genuine threat. Local recording to a microSD card (up to 256GB) provides redundancy if the network drops, and H.265 compression keeps bandwidth and storage requirements low.

Full specifications

• Thermal sensor: Uncooled VOx microbolometer, 256x192 pixels, NETD <40 mK
• Visible sensor: 1/2.7" 4MP CMOS, 2688x1520 resolution
• Lenses: 2.8-12mm varifocal, F1.0 (thermal) and F1.6 (visible)
• Video compression: H.265, H.264, MJPEG; max frame rate 25 fps on both channels
• Network: 1x RJ45 10/100Mbps Ethernet
• Power: DC 12V or PoE (802.3af), max consumption 12W
• Ingress protection: IP67; vandal resistance: IK10
• Operating temperature: -30°C to +60°C
• Local storage: microSD card slot, up to 256GB
• Smart functions: fire detection, temperature measurement, intrusion, line crossing, object classification
• Temperature measurement: -20°C to +150°C, accuracy ±2°C

Final note

This camera is a dependable choice for warehouses, manufacturing plants, and outdoor perimeters where thermal imaging adds a critical layer of safety and security.
