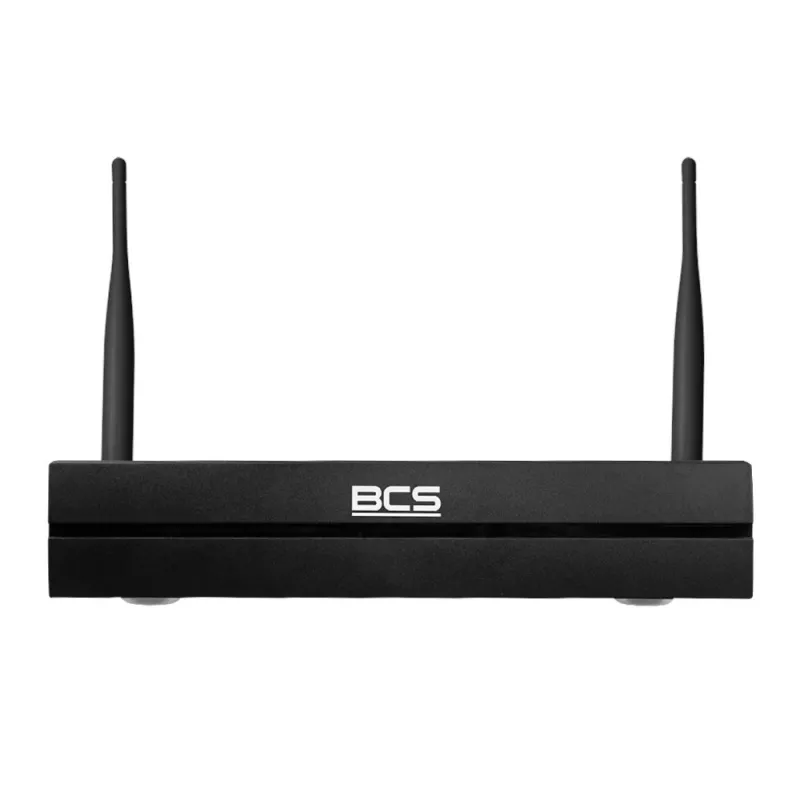

BCS-L-NVR0401-4KE-W(2L) 4-kanaals 4K UHD IP-netwerkvideorecorder

The BCS-L-NVR0401-4KE-W(2L) is a professional 4-channel IP network video recorder designed for small to medium-sized surveillance systems. Supporting up to 8MP (4K UHD) resolution, it delivers crisp and detailed video footage. With H.265+ compression, it optimizes storage and bandwidth without compromising quality. This NVR is ideal for retail stores, offices, and residential applications.

Advantages

High-resolution recording up to 4K UHD ensures clear identification. H.265+ technology reduces storage requirements by up to 50% compared to H.264. Easy setup and remote access via BCS Manager or BCS Connect mobile app. Reliable embedded Linux operating system for stable 24/7 operation.

Suitable for

• Small businesses and retail shops
• Office surveillance
• Home security systems
• Warehouse monitoring

Key specifications

• 4 IP camera channels
• Max recording resolution: 8MP (4K UHD)
• Video compression: H.265+/H.265/H.264+/H.264
• Incoming bandwidth: 80 Mbps
• Outgoing bandwidth: 60 Mbps
• 1x HDMI (up to 4K), 1x VGA (up to 1080p) video outputs
• 1x RCA audio input, 1x RCA audio output
• 1 SATA HDD bay, up to 10 TB per drive
• 1x RJ-45 10/100 Mbps Ethernet
• 2x USB 2.0 ports
• Power supply: DC 12V / 2A
• Simultaneous playback: 4 channels
• Operating system: Embedded Linux
• Mobile app support: BCS Manager, BCS Connect

Recommendations

For optimal performance, use BCS-compatible PoE switches and high-quality CAT6 cables. Ensure the HDD is rated for surveillance use (e.g., WD Purple or Seagate SkyHawk).
