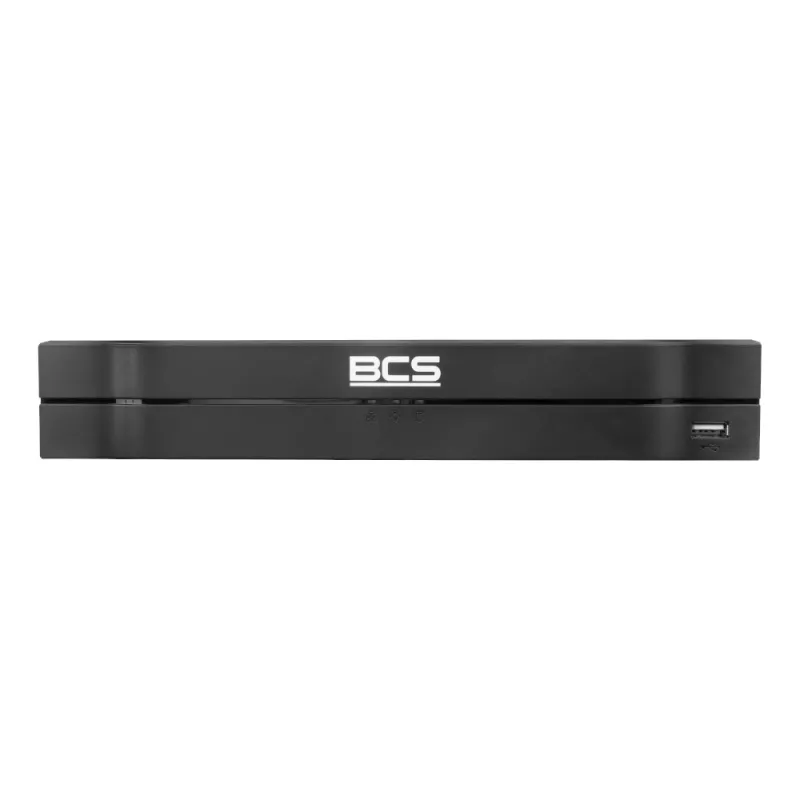

BCS-L-XVR0801-4KE-Ai2 8-kanaals 4K analoge HD DVR met AI

The BCS-L-XVR0801-4KE-Ai2 is a high-performance 8-channel analog HD DVR that supports up to 16 channels (8 analog + 8 IP) with 4K recording resolution. Equipped with advanced AI features like SMD Plus, perimeter protection, and face detection, this recorder is ideal for professional surveillance systems requiring intelligent analytics and reliable video management.

Advantages

Supports multiple analog technologies (HDCVI, AHD, TVI, CVBS) for flexible camera compatibility. AI-powered detection reduces false alarms and enhances security efficiency. H.265+ compression saves bandwidth and storage without compromising video quality.

Suitable for

• Retail stores and shopping centers
• Office buildings and corporate facilities
• Warehouses and logistics centers
• Residential complexes and gated communities

Key specifications

• Video Input: 8 BNC (analog) + 8 IP (total up to 16 channels)
• Max Recording Resolution: 8MP (3840x2160) at 15fps (ch1-4)
• Video Compression: H.265+/H.265/H.264+/H.264
• AI Features: SMD Plus, Perimeter Protection, Face Detection (1 channel)
• HDD Bay: 1x SATA, up to 10TB
• Video Outputs: 1x HDMI (4K), 1x VGA (1080P)
• Audio: 1x RCA in, 1x RCA out
• Network: 1x RJ-45 10/100 Mbps Ethernet
• USB: 2x USB 2.0
• Power: DC 12V/2A, consumption <7W (without HDD)

Recommendations

For optimal performance, pair with BCS 8MP HDCVI cameras and use a high-quality SATA HDD (up to 10TB). Ensure proper ventilation and stable power supply.
