BCS-ZA1206/UPS/F 12V 6A noodstroomvoorziening met batterijback-up

This 12V DC uninterruptible power supply delivers a regulated 6A output with automatic battery backup, ensuring continuous operation of critical devices during mains failures. Its metal enclosure and comprehensive protection suite make it a reliable choice for security, access control, and industrial automation systems.

Advantages

The unit seamlessly switches to an external 12V lead-acid battery when AC power is lost, providing true UPS functionality without interruption. Adjustable output voltage (11.5–13.8V) allows precise matching to load requirements, while built-in protections against short circuit, overload, overvoltage, under-voltage, and overheating safeguard both the power supply and connected equipment. Passive cooling ensures silent, maintenance-free operation.

Suitable for

• Access control systems and electric locks
• CCTV cameras and surveillance equipment
• Alarm systems and sensors
• Industrial automation and control panels
• Any 12V DC device requiring battery backup

Key specifications

• Input: 176–264V AC, 50/60 Hz
• Output: 12V DC (adjustable 11.5–13.8V), max 6A, 72W
• UPS function with 0.5A battery charging for external 12V lead-acid battery
• Protections: SCP, OLP, OVP, UVP, OHP

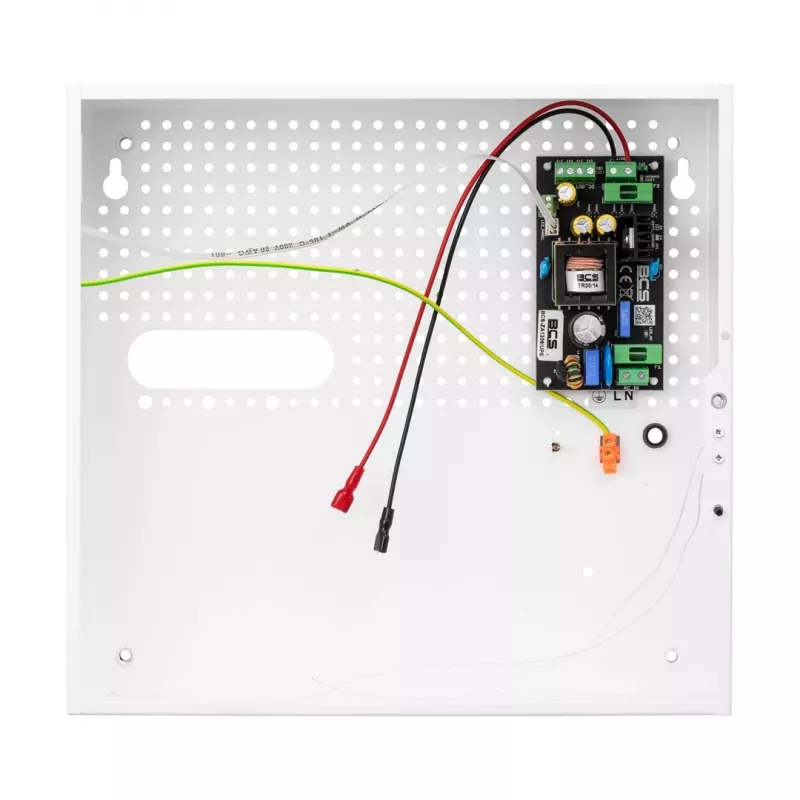

• Metal enclosure, IP20, wall-mounted
• LED indicators: AC power, DC output, battery status
• Operating temperature: -10°C to +40°C

Recommendations

For reliable backup, pair with a 12V lead-acid battery of 7Ah to 24Ah capacity. Ensure proper ventilation and secure wall mounting. Verify battery polarity before connection.
