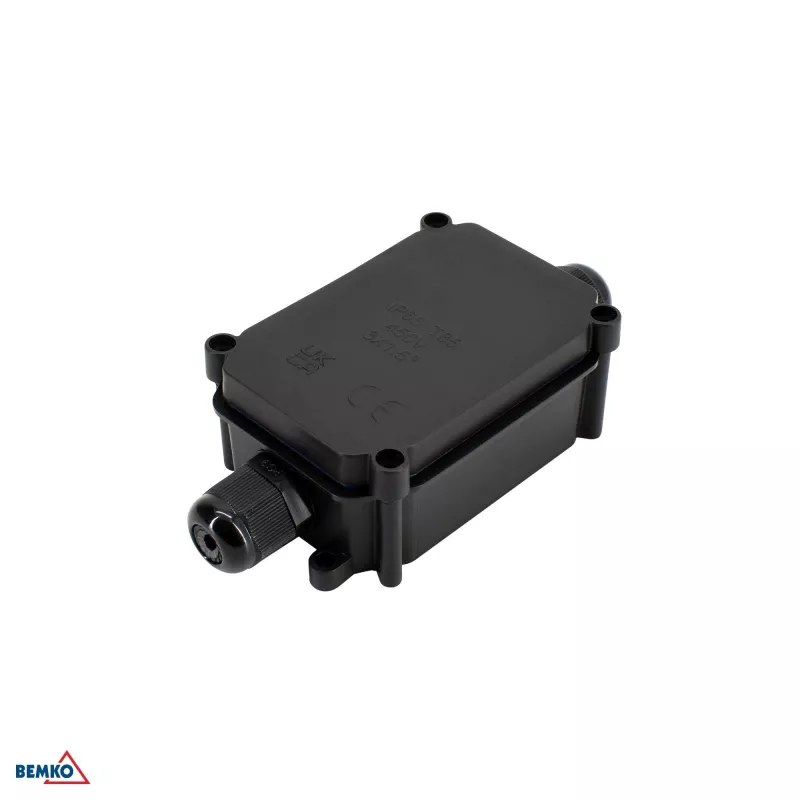

BEMKO Hermetische aftakkast met 2 kabelwartels IP66

The BEMKO Hermetic Junction Box with 2 Cable Glands IP66 is a robust and reliable solution for secure electrical connections in demanding environments. Designed for both indoor and outdoor use, this junction box offers superior protection against dust and water ingress, making it ideal for industrial, residential, and commercial applications.

Advantages

This junction box features a high IP66 rating, ensuring complete protection against dust and powerful water jets. The included M20 cable glands provide easy and secure cable entry, while the EPDM gasket and screw-on lid guarantee a tight seal. Its UV-resistant and halogen-free ABS material ensures long-lasting performance even in harsh conditions.

Suitable for

• Industrial electrical installations
• Outdoor lighting and power connections
• Residential wiring junctions
• Commercial building infrastructure

Key specifications

• Ingress Protection: IP66
• Material: ABS (Acrylonitrile Butadiene Styrene)
• Number of Cable Glands: 2 (M20)
• Color: Light Grey (RAL 7035)
• Lid Type: Screw-on with 4 screws
• Seal Material: EPDM Gasket
• Mounting Type: Surface Mount with internal mounting points
• Impact Resistance: IK07
• Operating Temperature: -25°C to +60°C
• UV Resistance: Yes
• Halogen-Free: Yes
• Flammability Rating: UL94-V2
• Compliance: CE, RoHS

Recommendations

For optimal performance, ensure cables are properly secured in the glands and the lid is tightened evenly. Suitable for use with cables up to 14mm diameter.
