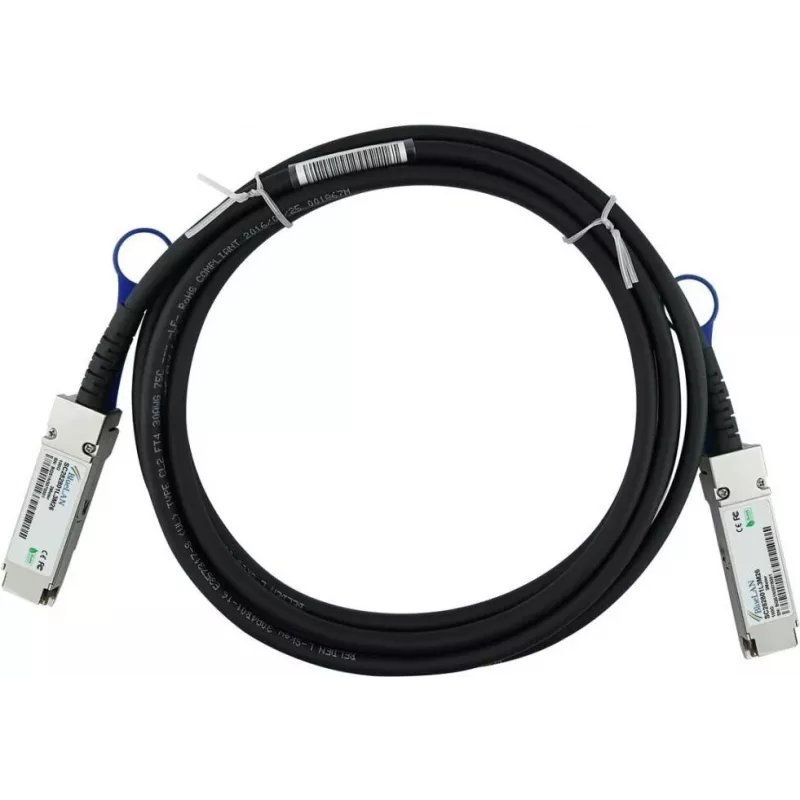

BlueLAN QSFP28 Direct Attach-kabel 100GBASE-CR4 3m 26AWG Compatibel met Huawei 02311MPA

The BlueLAN QSFP28 Direct Attach Cable (DAC) is a high-performance passive copper cable designed for 100 Gigabit Ethernet connectivity. It is fully compatible with Huawei 02311MPA interfaces, providing a cost-effective and reliable solution for data center and enterprise networking environments.

Advantages

This cable offers low power consumption (<0.5W), hot-swappable capability, and a durable PVC jacket. It ensures high-speed data transmission with minimal latency, making it ideal for high-performance computing and storage area networks.

Suitable for

• Data centers requiring 100G connectivity
• High-performance computing (HPC) clusters
• Enterprise network switches and routers with QSFP28 ports
• Huawei networking equipment using 02311MPA modules

Key specifications

• Product Type: Direct Attach Cable (DAC)
• Cable Type: Passive Copper
• Data Rate: 100 Gbps
• Protocol Standard: 100GBASE-CR4
• Connector Type: QSFP28 to QSFP28
• Cable Length: 3 meters
• Wire Gauge: 26 AWG
• Impedance: 100 Ohm
• Jacket Material: PVC
• Operating Temperature: 0°C to 70°C
• Storage Temperature: -40°C to 85°C
• Certifications: RoHS, CE, FCC
• Compatibility: Huawei 02311MPA (OEM Equivalent)

Recommendations

For optimal performance, ensure that both ends of the cable are connected to compatible QSFP28 ports. This cable is a direct replacement for Huawei 02311MPA and is backed by BlueLAN's quality assurance.
