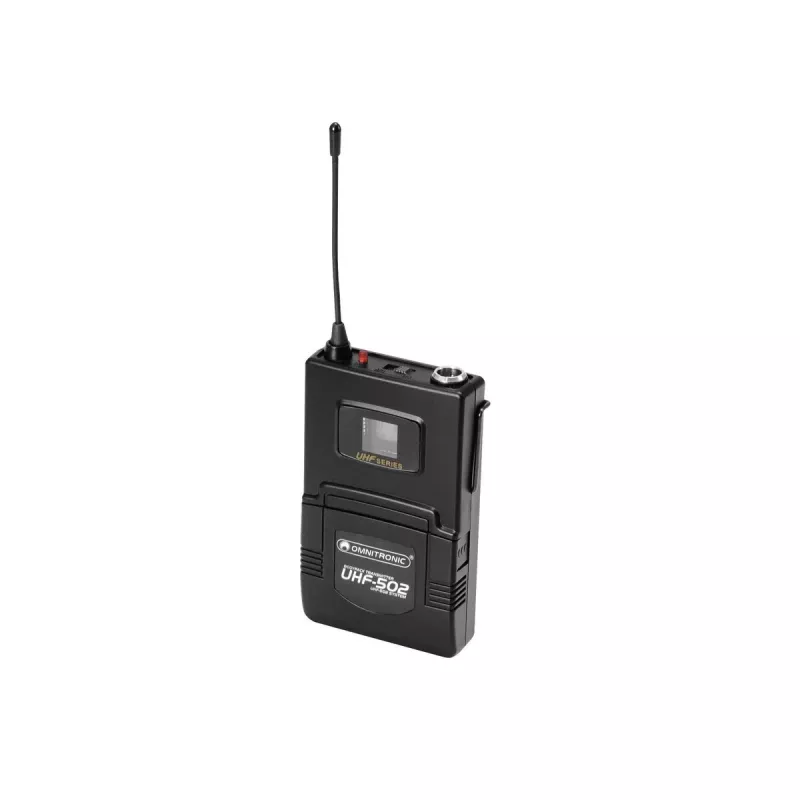

Bodypack-zender Omnitronic 13053523

The Omnitronic 13053523 bodypack transmitter is a compact wireless transmitter designed for reliable audio transmission in the 823–832 MHz frequency range. Its small form factor and AA battery power make it suitable for mobile and temporary installations where a lightweight and unobtrusive transmitter is required. With low total harmonic distortion (THD 1%) the unit preserves audio clarity for speech and instrument use in live sound, presentations and broadcast applications.

Advantages

The transmitter offers stable wireless transmission within the specified UHF band and provides consistent audio quality thanks to a low THD value of 1%. Its compact dimensions (66 mm width, 22 mm depth, 108 mm height) and battery-powered operation ensure easy mounting on belts or clothing and straightforward deployment without a wired connection. The design supports quick integration with compatible wireless receivers and standard lavalier or instrument cables.

Suitable for

Key specifications

How to use

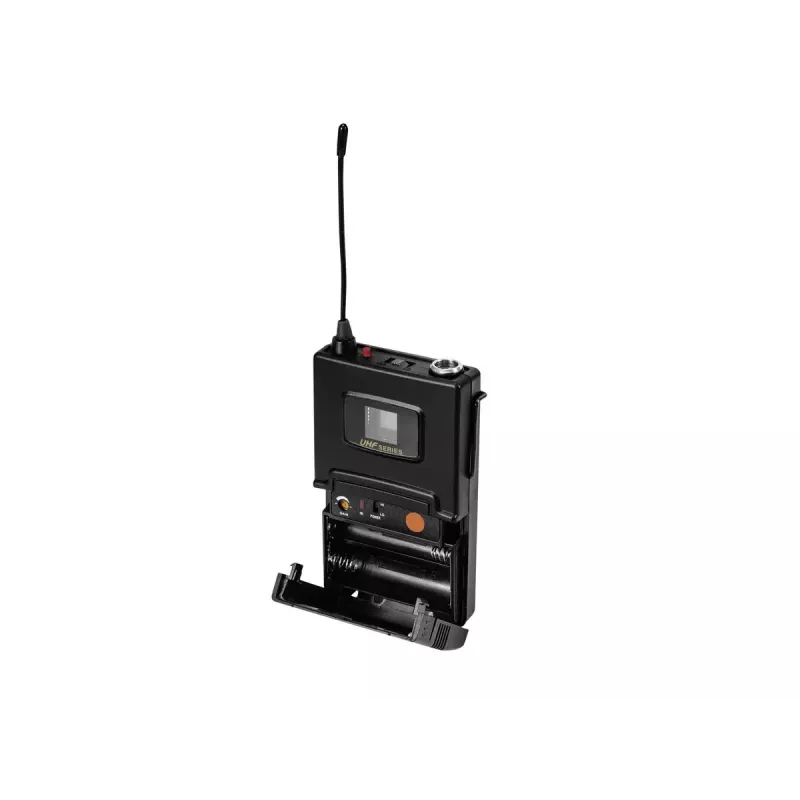

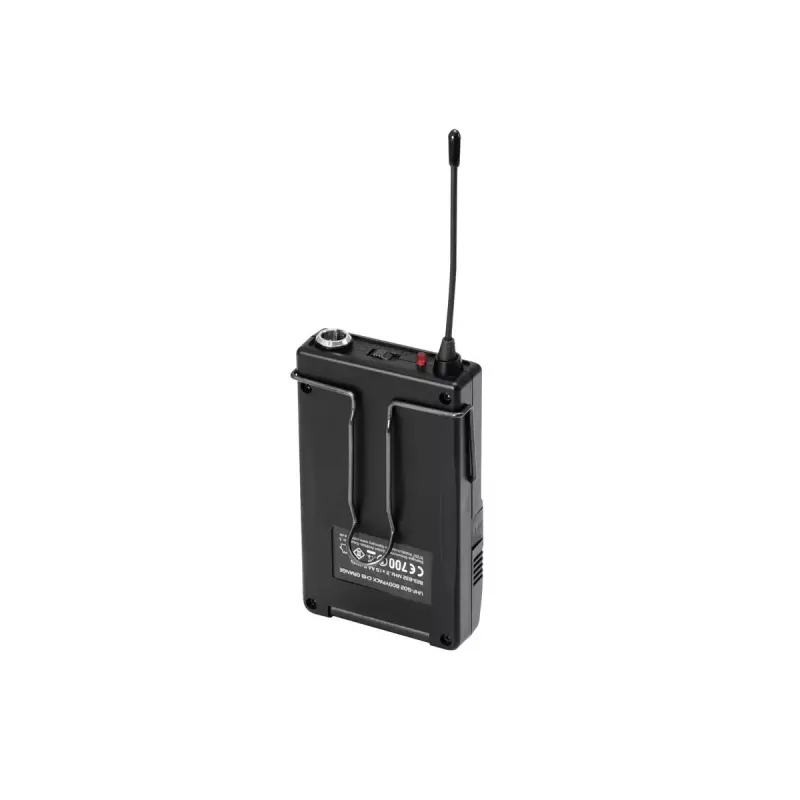

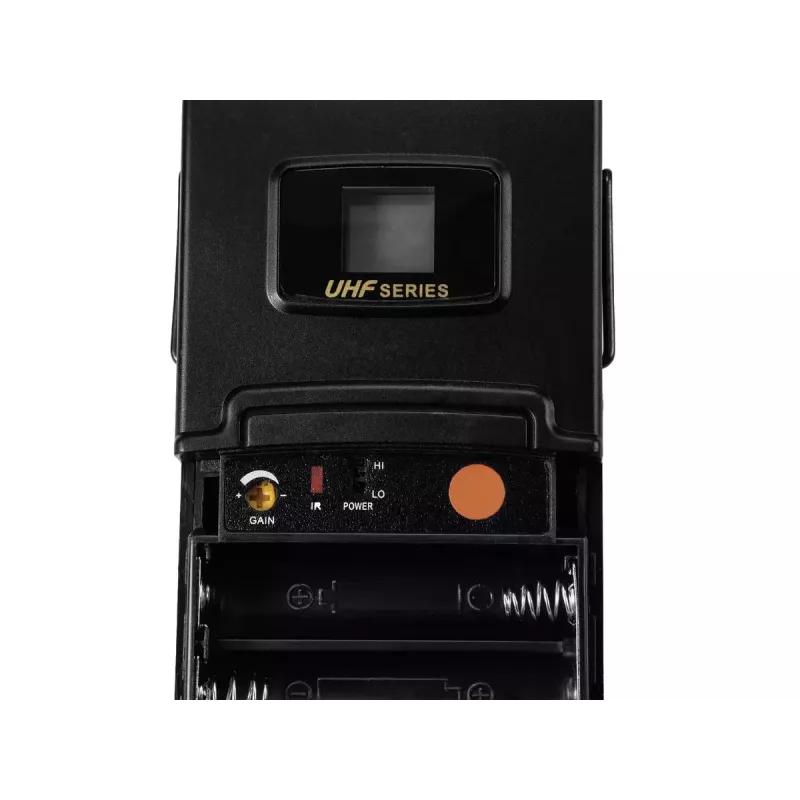

Install fresh AA batteries in the transmitter according to the polarity markings, then attach the transmitter to clothing or a belt using its mounting clip. Connect a compatible lavalier microphone or instrument cable to the transmitter's input connector and switch the unit on. Ensure the paired receiver is set to the matching frequency within the 823–832 MHz range and confirm a clear RF signal before use. Monitor audio levels at the receiver to avoid clipping and adjust microphone placement for optimal sound pickup. After use, switch the transmitter off and remove batteries if the device will be stored for extended periods.

Recommendations

To maintain reliable operation, keep the transmitter and receiver within the recommended line-of-sight distance, avoid RF interference from nearby transmitters, and regularly replace batteries to prevent power-related audio dropouts. For critical applications, perform a soundcheck and frequency scan before the event.
