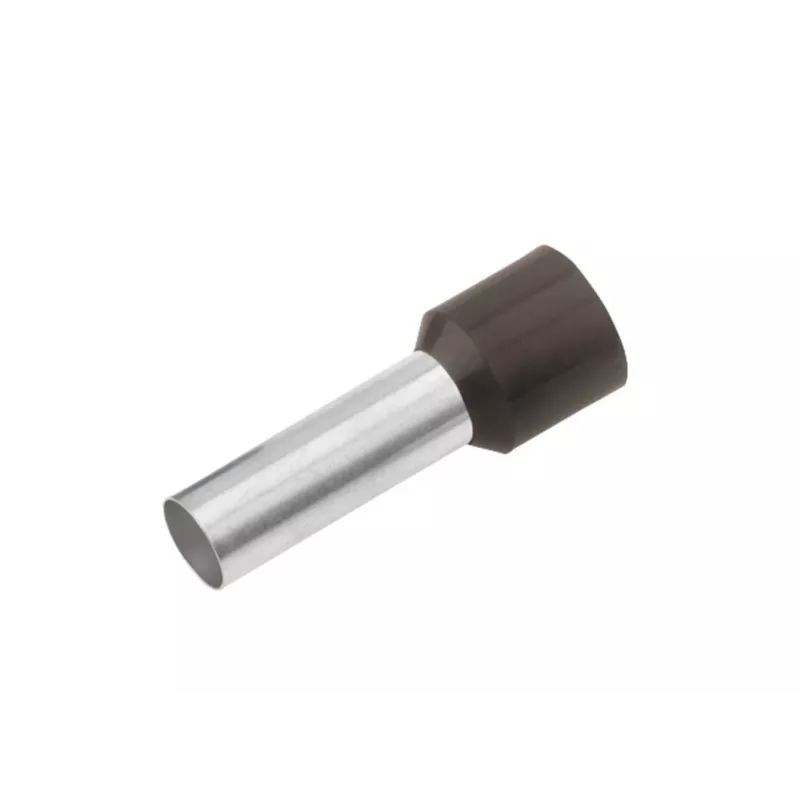

Cimco 187013 adereindhuls 1,5 mm² deels geïsoleerd zwart 100 stuks

For fine-stranded conductors in control panels and machinery wiring, this ferrule set offers a clean crimp termination with a black polypropylene collar that simplifies phase identification. The 1.5 mm² cross-section suits common signal and power wiring, and the 100-piece pack keeps your crimping station stocked.

Highlights

• Partially insulated design for reliable crimp connections
• Tin-plated electrolytic copper sleeve resists corrosion
• Black insulation collar for easy colour coding
• 100 pieces per pack for workshop efficiency

In daily use

The 8 mm metal sleeve accepts fine-stranded conductors and crimps securely with standard ferrule pliers. The polypropylene collar provides strain relief at the entry point and withstands temperatures from -40°C to +105°C, making the ferrules suitable for industrial cabinets and machine wiring.

Full specifications

• Product type: Wire end ferrule
• Insulation type: Partially insulated
• Nominal cross-section: 1.5 mm²
• Insulation colour: Black
• Quantity per pack: 100
• Ferrule material: Electrolytic copper (E-Cu)
• Surface treatment: Tin-plated
• Conductor compatibility: Fine-stranded conductors
• Connection method: Crimp
• Insulation material: Polypropylene (PP)
• Temperature range: -40°C to +105°C
• Metal sleeve length: 8 mm
• Total length: 14 mm
• Wire gauge equivalent: Approx. 16 AWG
• Flammability rating (insulation): UL94 V2

Final note

DIN 46228 Part 4 compliant ferrules for reliable, colour-coded terminations in electrical installations.
