Cimco 187128 deels geïsoleerde adereindhuls 6 mm² groen (100 stuks)

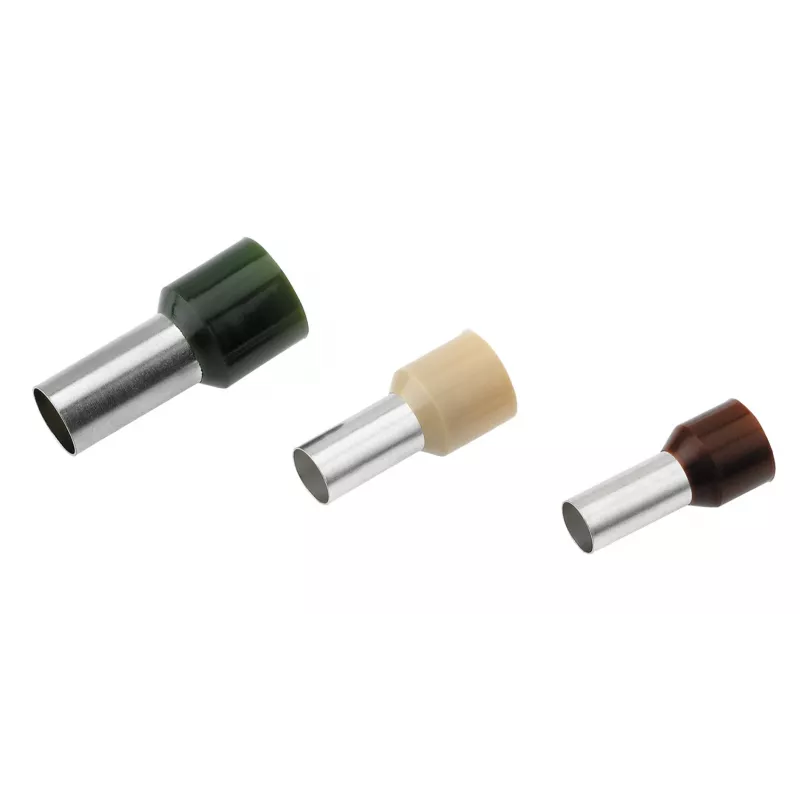

This Cimco wire end ferrule stands out for its partially insulated design, combining a tin-plated electrolytic copper sleeve with a green polypropylene collar. The 6 mm² size suits fine-stranded conductors, providing a reliable crimp connection for demanding electrical work.

Highlights

• Partially insulated ferrule with green PP insulation
• Electrolytic copper sleeve, tin-plated for corrosion resistance
• Accepts fine-stranded conductors up to 6 mm²
• Pack of 100 pieces
• Conforms to DIN 46228 Part 4

In daily use

The ferrule's 20 mm overall length includes a 12 mm bare sleeve and an 8 mm insulation collar. The sleeve's 3.5 mm inner diameter accommodates the conductor, while the insulation's 6.5 mm outer diameter ensures a secure fit in terminal blocks. The green colour allows quick identification of the 6 mm² size.

Full specifications

• Wire cross-section: 6 mm²
• Insulation type: Partially insulated
• Colour: Green
• Quantity per pack: 100 pieces
• Ferrule material: Electrolytic copper
• Surface treatment: Tin-plated
• Insulation material: Polypropylene (PP)
• Standard: DIN 46228 Part 4
• Conductor compatibility: Fine-stranded conductors
• Temperature range: -40°C to +105°C
• Overall length: 20 mm
• Sleeve length: 12 mm
• Insulation length: 8 mm
• Inner diameter (sleeve): 3.5 mm
• Outer diameter (insulation): 6.5 mm

Final note

Precision-made for consistent crimping, these ferrules are a practical choice for professional electrical installations.
