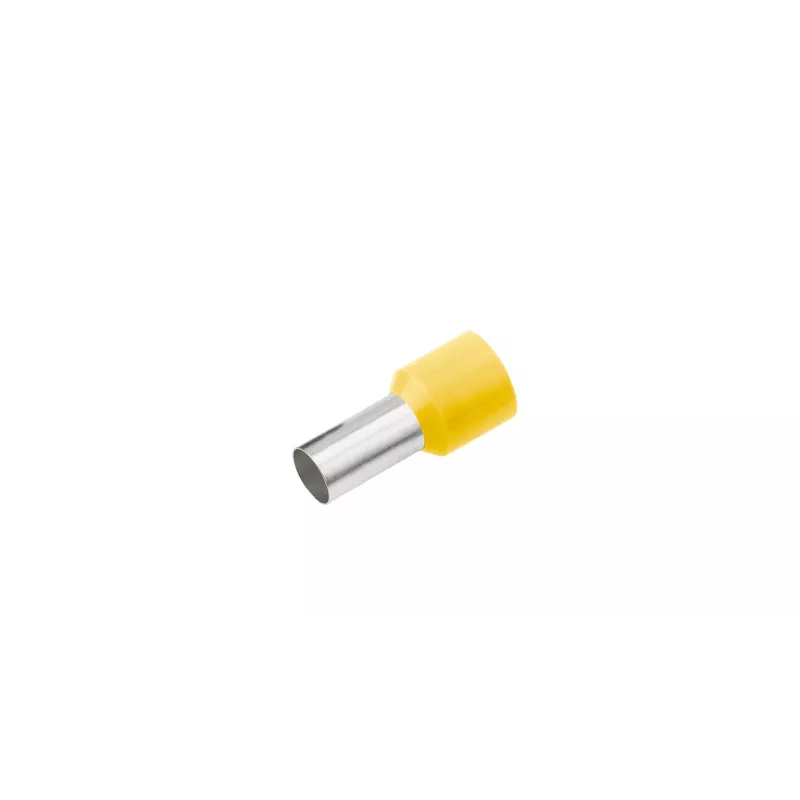

Cimco 187214 adereindhuls 1 mm² deels geïsoleerd geel 100 stuks

Electricians and panel builders terminating fine-stranded conductors in control cabinets and terminal blocks rely on these Cimco wire end ferrules. The 1 mm² size with yellow insulation collar is a standard choice for wiring sensors, relays and PLC I/O modules.

Key specifications

• Wire cross-section: 1 mm²
• Insulation type: partially insulated (polypropylene collar)
• Colour: yellow
• Quantity: 100 pieces per pack
• Ferrule material: electrolytic copper, tin-plated
• Metal sleeve length: 8 mm
• Total length: 14 mm
• Inner diameter: 1.5 mm
• Outer diameter: 1.8 mm
• Insulation collar diameter: 3.0 mm
• Connection method: crimp
• Operating temperature: -40°C to +105°C
• Max. voltage: 600 V

Why choose it

The tin-plated copper sleeve protects fine wire strands from damage during screw or spring clamping, ensuring a reliable, gas-tight connection. The polypropylene collar provides strain relief and visual identification according to DIN 46228 Part 4 colour coding.

Ideal use cases

• Terminating stranded wires in industrial control panels
• Preparing conductors for terminal blocks, contactors and circuit breakers
• Wiring automation systems, PLCs and sensor connections

Good to know

These ferrules are designed for use with standard crimping pliers. The yellow collar indicates a 1 mm² conductor cross-section, simplifying installation and inspection.
