Cimco 187455 ongeïsoleerde vertinde koperen adereindhuls voor 25 mm² geleider, 100-pack

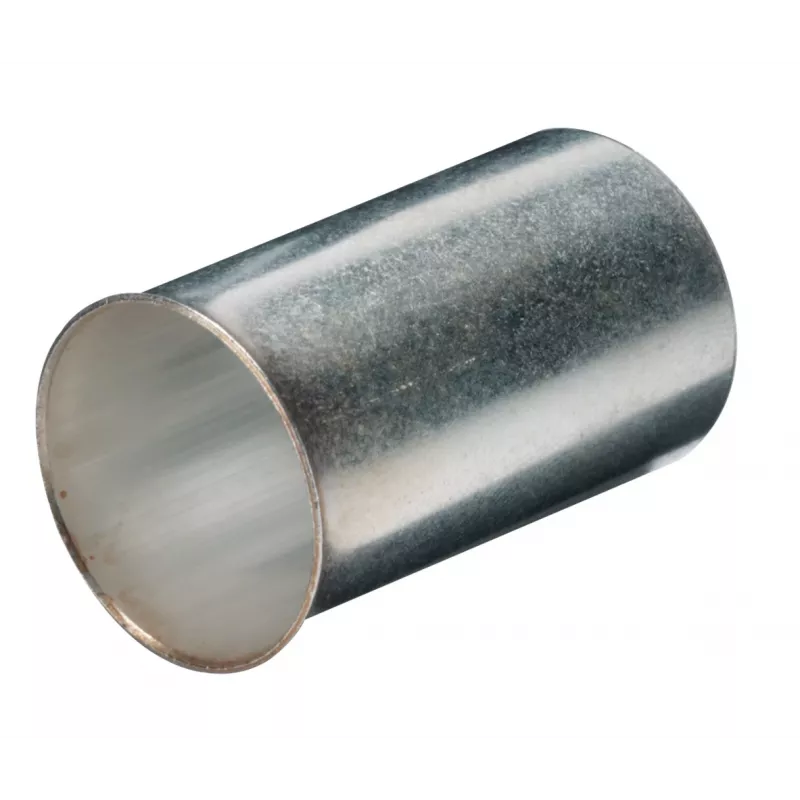

This Cimco wire end ferrule stands out with its uninsulated design and tin-plated electrolytic copper construction, offering reliable crimp connections for 25 mm² stranded conductors. Unlike standard ferrules, the flared entry simplifies wire insertion, and the 100-piece pack suits high-volume electrical work.

Highlights

• Uninsulated for direct crimping in compact spaces
• Tin-plated electrolytic copper for corrosion resistance
• Flared entry eases insertion of stranded wire
• 100 pieces per pack for professional use

In daily use

The ferrule is crimped onto a stripped stranded copper conductor, creating a secure, gas-tight connection. Its uninsulated body is ideal where insulation is provided by heat-shrink tubing or where space is limited. The tin plating ensures long-term reliability in demanding environments.

Full specifications

• Wire cross-section: 25 mm²
• Material: Electrolytic copper, tin-plated
• Overall length: 28 mm
• Crimp length: 22 mm
• Internal diameter: 7.0 mm
• External diameter: 7.8 mm
• Temperature range: -40°C to +125°C
• Voltage rating: up to 1000 V
• Standard: DIN 46228 Part 1
• Connection method: Crimp
• Compatible with stranded copper conductors
• RoHS compliant

Final note

A dependable choice for electricians and panel builders working with 25 mm² conductors, offering consistent performance and a generous pack size.
