CIMCO 190864 cilinderbout met sleuf M5 x 20 mm DIN 84a verzinkt

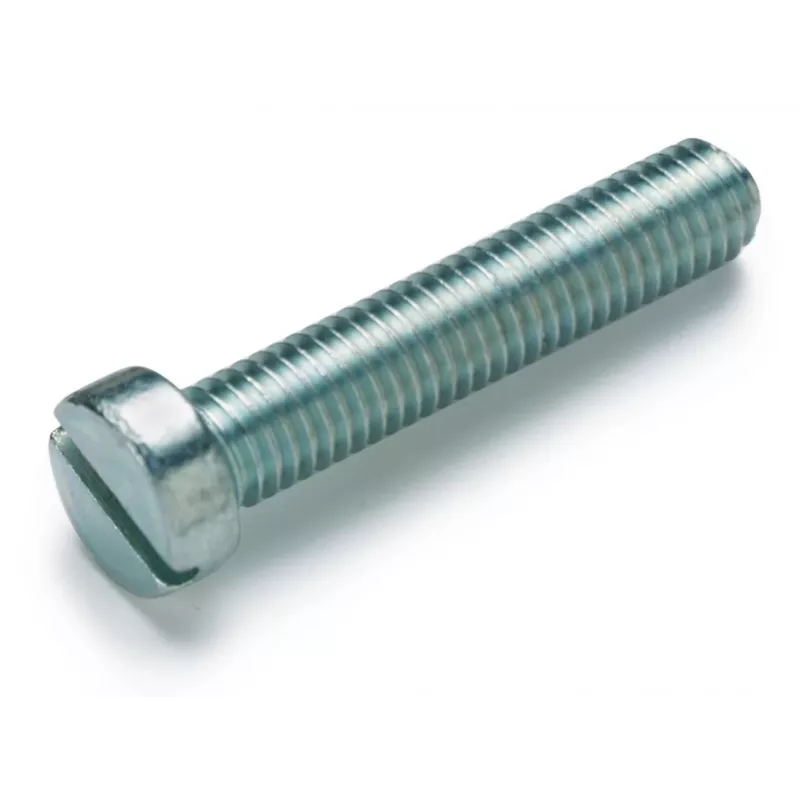

Cheese head screw with slotted drive, M5 thread and 20 mm length, zinc plated for corrosion resistance. Conforms to DIN 84a for reliable general-purpose fastening.

Advantages

Zinc plating provides corrosion protection. Slotted drive allows use with standard flat-blade screwdrivers. Cylindrical head offers a low profile.

Suitable for

• General-purpose fastening in machinery and equipment
• Applications requiring a cheese head screw with metric coarse thread

Key specifications

• Thread diameter: M5
• Length: 20 mm
• Drive type: Slotted
• Material: Steel, zinc plated
• Standard: DIN 84a
• Thread pitch: 0.8 mm
• Head diameter: 8.5 mm
• Head height: 3.5 mm

Recommendations

Verify thread engagement and torque values according to your application requirements.
