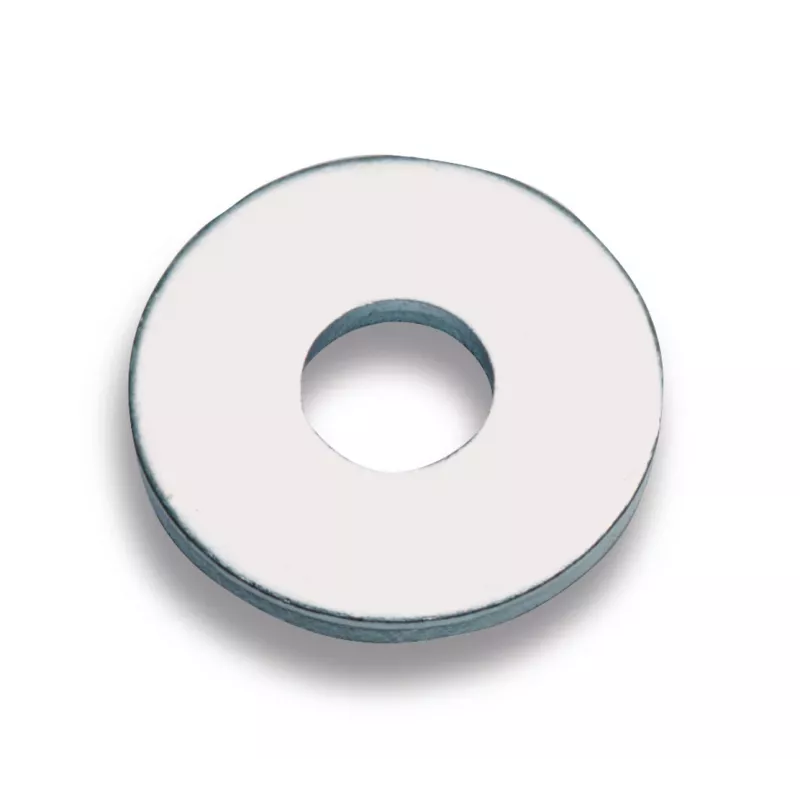

Cimco carrosseriering M8 verzinkt DIN 9021 - 192654

This Cimco fender washer stands apart through its generous outer diameter of 24 mm, which spreads clamping force over a wider area than standard washers. That larger footprint makes it the right choice for soft materials, oversized holes, or any assembly where a regular washer would dig in or pull through.

Highlights

• Nominal size M8 with 8.4 mm inner diameter for easy fit on M8 bolts and screws
• Zinc-plated steel body resists corrosion in indoor and sheltered outdoor applications
• Manufactured to DIN 9021 dimensions for consistent, reliable performance
• Round, flat shape with 2 mm thickness for stable load distribution

In daily use

Use these washers wherever you need to protect the surface under a bolt head or nut. They are particularly effective on plastic housings, sheet metal, wood, and other materials that cannot withstand concentrated pressure. The zinc plating keeps them presentable and functional over time, while the steel core maintains strength under load.

Full specifications

• Product type: Fender washer
• Nominal diameter: M8
• Inner diameter: 8.4 mm
• Outer diameter: 24 mm
• Thickness: 2 mm
• Material: Steel
• Surface treatment: Zinc-plated (galvanized)
• Standard: DIN 9021
• Colour: Silver
• Shape: Round
• Application: Load distribution, securing components on soft materials or oversized holes
• Compatibility: M8 bolts, screws, and threaded rods
• Manufacturing process: Stamped

Final note

A practical, corrosion-resistant washer for demanding assembly tasks where load spreading matters.
