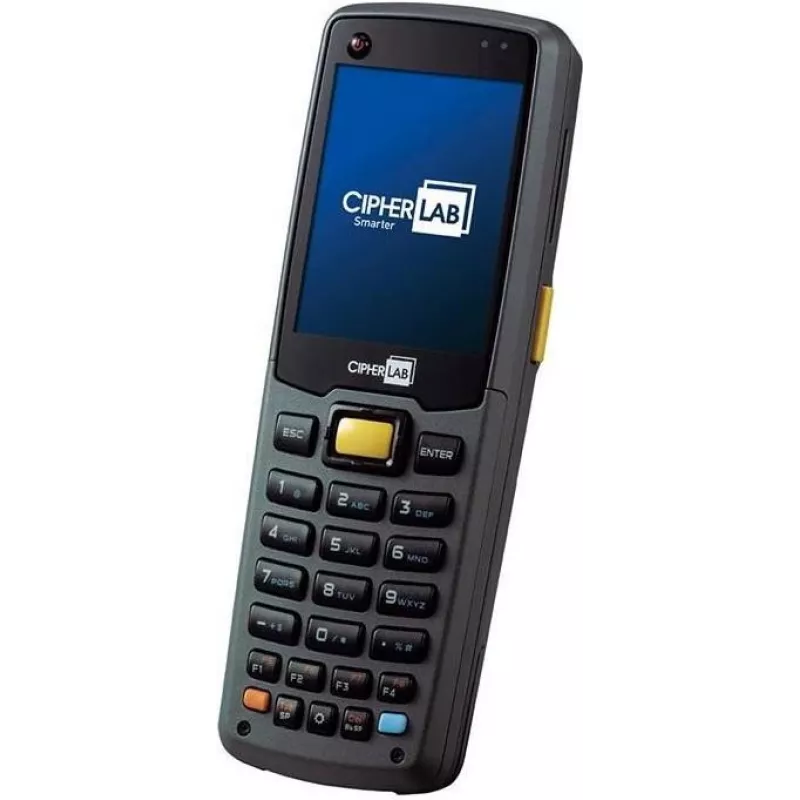

CipherLab 8600 Batch 2D 29-toets draagbare dataterminal A860S2FN21NS1

In fast-paced retail, warehousing, and field service environments, slow or unreliable barcode scanning causes bottlenecks and errors. The CipherLab 8600 Batch 2D 29-Key Portable Data Terminal eliminates these inefficiencies with rapid, accurate 2D barcode reading and a rugged, ergonomic design built for all-day use. Its batch data collection capability allows workers to capture data offline and transfer it later, making it ideal for areas without constant Wi-Fi coverage.

Who is it for

This device is perfect for retail associates performing price checks and inventory counts, warehouse staff managing stock movements, and field technicians tracking assets. Its IP65 rating and 1.8 m drop resistance ensure reliability in demanding environments, while the 29-key numeric keypad enables quick data entry even with gloves on.

Main features

• High-performance 2D imager reads barcodes from screens, curved surfaces, and damaged labels.
• Batch mode stores data on 4 GB flash memory for later USB transfer, no Wi-Fi required.
• Rugged construction: IP65 sealed against dust and water, survives multiple 1.8 m drops to concrete.
• Transflective 2.8-inch touchscreen remains readable in direct sunlight.
• Long-lasting 2960 mAh Li-ion battery supports extended shifts without recharging.
• Flexible connectivity: USB 2.0 client and host, Bluetooth v4.0, and optional Wi-Fi 802.11 a/b/g/n.
• Expandable storage via microSD card up to 32 GB for large data sets.

Specifications

• Scanner type: 2D Imager
• Operating system: CipherLab OS
• Processor: TI OMAP 3715, 1 GHz
• RAM: 1 GB
• Flash storage: 4 GB
• Display: 2.8-inch transflective TFT-LCD, 240 x 320 QVGA, resistive touchscreen
• Keyboard: 29-key numeric
• Connectivity: USB 2.0 (client & host), Bluetooth Class II v4.0, Wi-Fi 802.11 a/b/g/n
• Expansion slot: microSD up to 32 GB
• Battery: Li-ion 3.7V, 2960 mAh
• IP rating: IP65
• Drop specification: 1.8 m (6 ft) multiple drops to concrete
• Operating temperature: -20°C to 50°C (-4°F to 122°F)
• Sensors: G-sensor, light sensor
• Audio: speaker, microphone

Tips

To maximize battery life, disable Bluetooth and Wi-Fi when not in use. For batch operations, schedule regular data uploads via USB to prevent storage full. Use the touchscreen for menu navigation and the numeric keypad for rapid quantity entry. The device's rugged design allows use in rain or dusty environments, but avoid submerging it in water.
