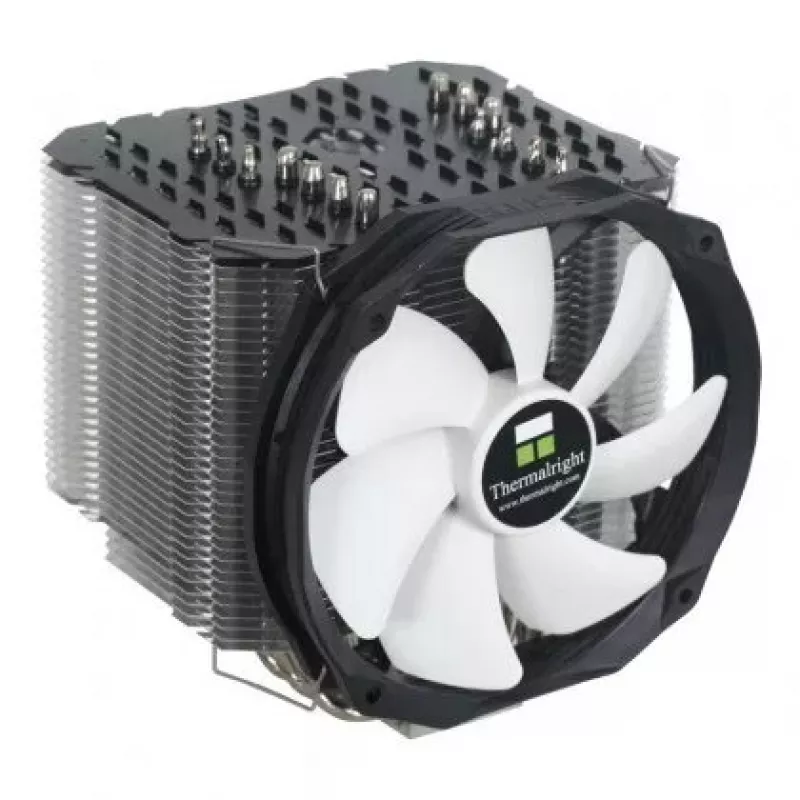

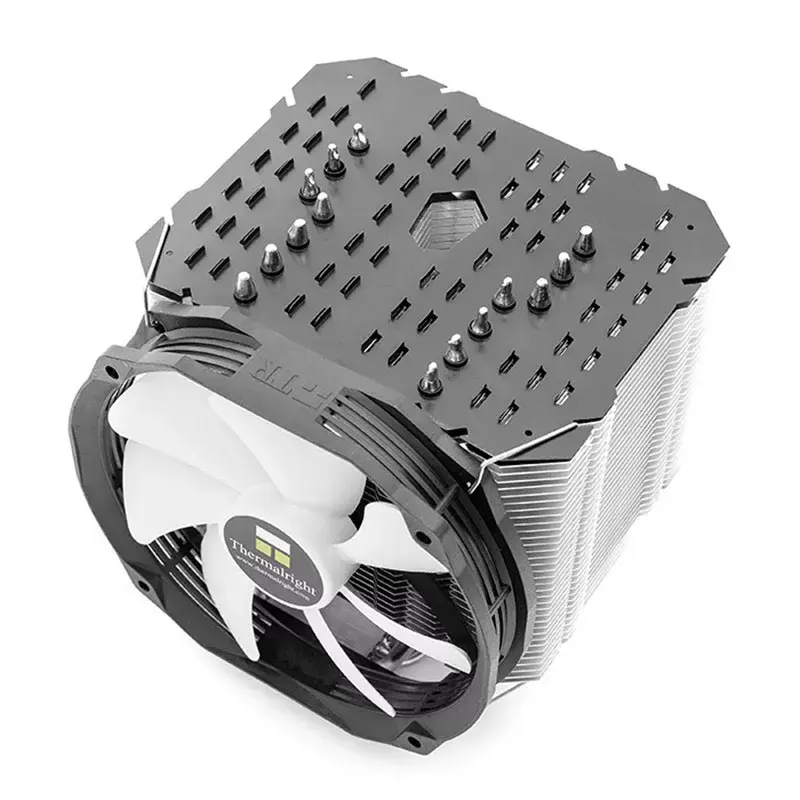

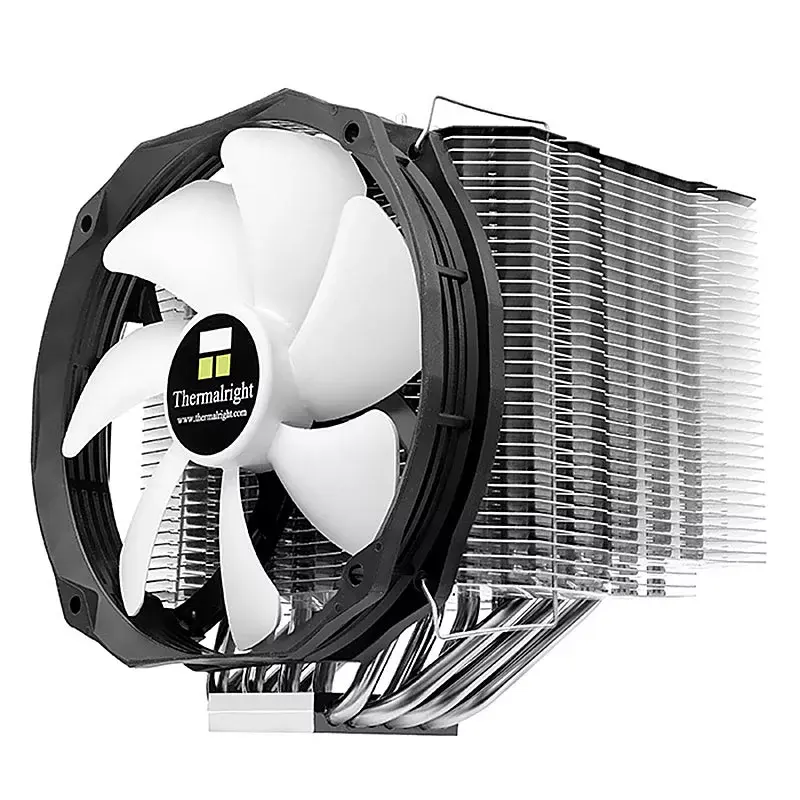

CPU-koeler Thermalright Le Grand Macho RT

The Thermalright Le Grand Macho RT is a high-performance CPU cooler combining a large 150 mm PWM fan with a substantial nickel-plated copper base and seven 6 mm heat pipes. Designed for efficient heat dissipation and quiet operation, the cooler supports modern Intel and AMD sockets and offers a polished convex contact surface for improved thermal transfer. The Le Grand Macho RT has a compact footprint (152 x 147 x 159 mm) and delivers active cooling performance up to 280–300 W TDP depending on configuration.

Advantages

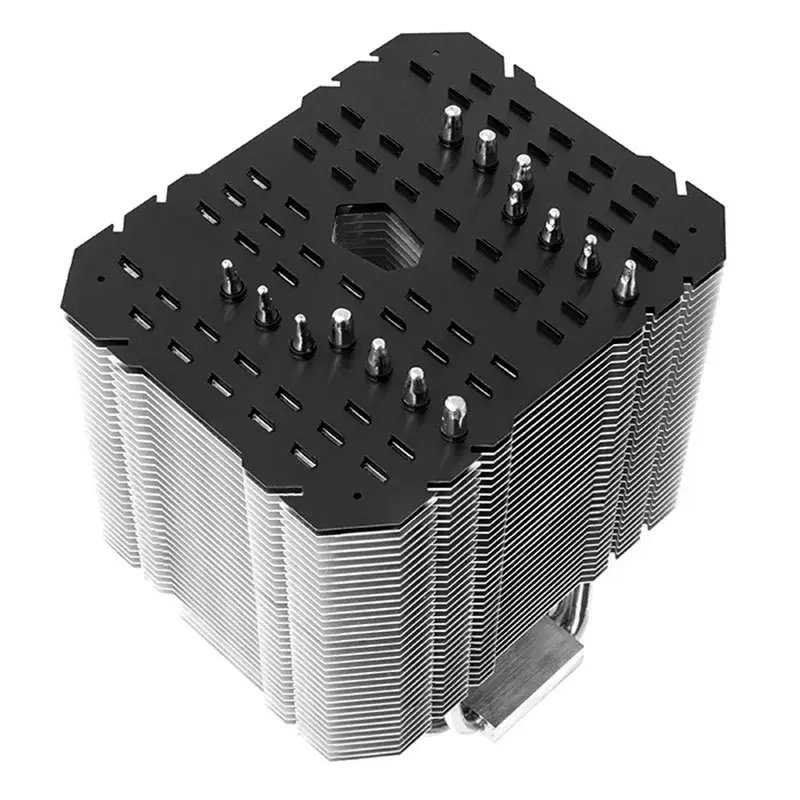

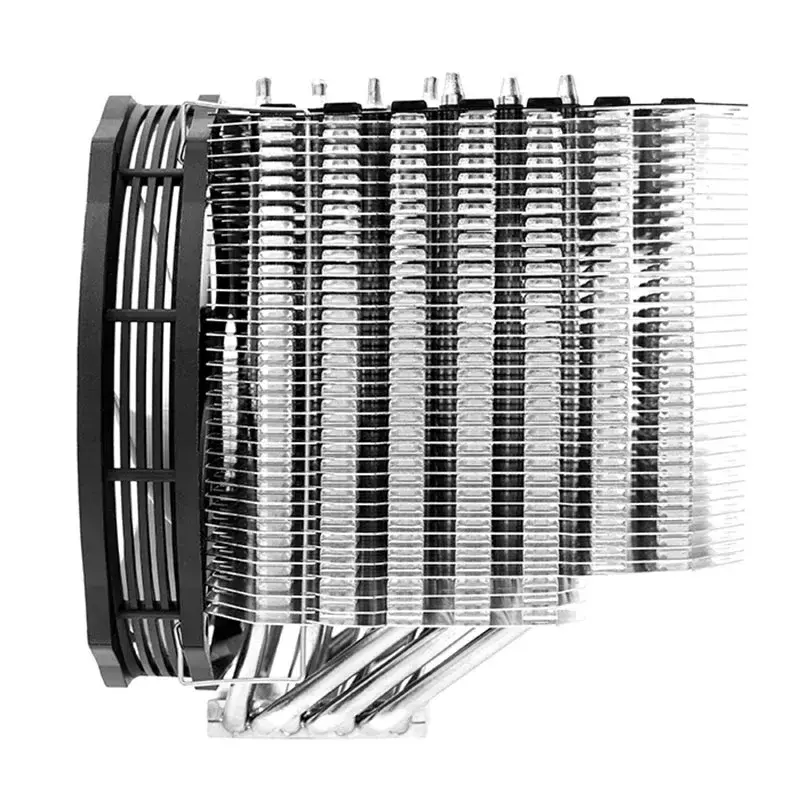

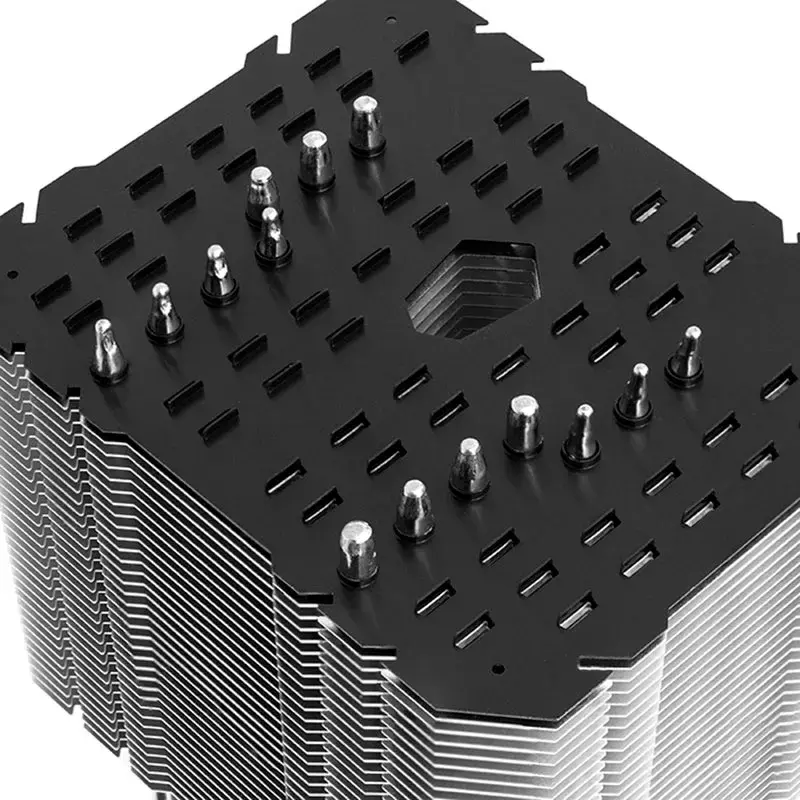

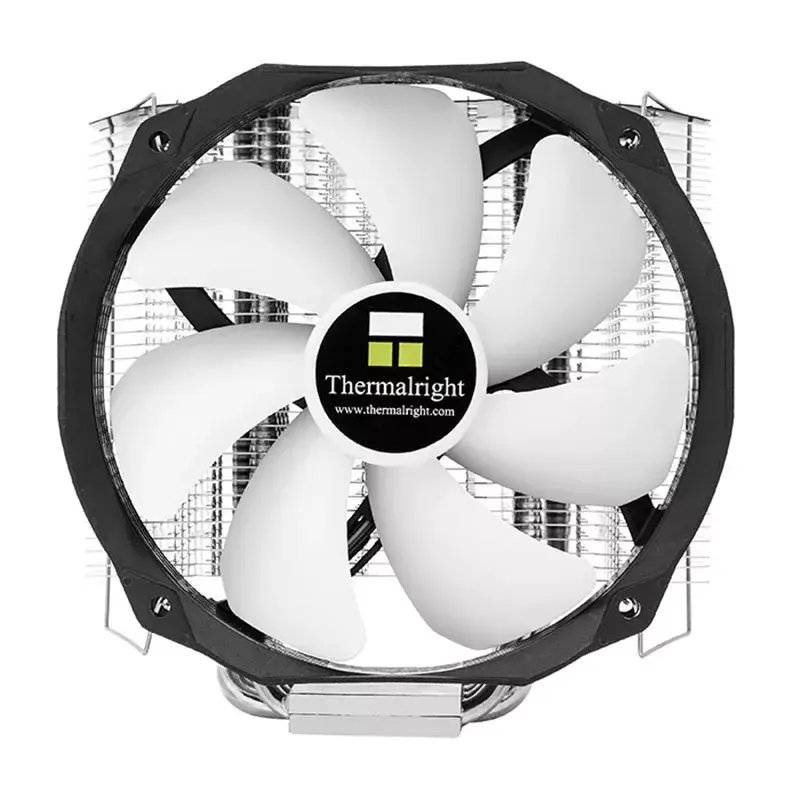

The included TY-147 B PWM fan uses a fluid dynamic bearing for low wear and operates between approximately 300 and 1,300 RPM, producing airflow up to about 125 m³/h while keeping noise levels very low (around 14–20 dB(A)). The fan’s revised design fits conventional 120 mm mounting points while retaining a larger inner diameter typical of 140–150 mm fans; anti-vibration pads and updated fan brackets reduce transmitted vibration. The heatsink’s perforated aluminum fins and central oval air duct lower air resistance and prevent air accumulation, improving overall cooling efficiency. A highly polished, nickel-plated C1100 copper base with a slightly convex contact surface enhances contact with the CPU heat-spreader. Seven integrated 6 mm heat pipes ensure efficient heat transfer from the base into the fin stack.

Suitable for

• Silent high-performance desktop systems
• Gaming PCs and workstations with multi-core Intel or AMD CPUs
• Systems requiring a large, low-noise 150 mm fan cooler

Key specifications

• Product: Cooler Thermalright Le Grand Macho RT
• Fan diameter: 150 mm (TY-147 B, PWM)
• Fan speed: ~300–1,300 RPM
• Airflow: up to ~125 m³/h
• Noise level: approx. 14–20 dB(A)
• Heat pipes: 7 × 6 mm
• Base: nickel-plated C1100 copper, high-gloss polished, slightly convex
• Dimensions (W × D × H): 152 × 147 × 159 mm
• Weight: 0.96 kg
• TDP: approx. 280–300 W
• Supported sockets: Intel LGA775/1366/1156/1155/2011/2011-3/1150/1151* and AMD AM2/AM2+/AM3/FM1/FM2/FM2+
• Colours: Black, White

How to use

Install the cooler using the supplied universal mounting kit and follow the included instructions for your specific CPU socket. Fit the TY-147 B PWM fan to the heatsink with the provided brackets and anti-vibration pads, connect the PWM cable to the motherboard fan header, and apply the supplied Thermalright Chill Factor 3 thermal paste to the CPU heat-spreader before mounting. Use the extra-long magnetic Thermalright screwdriver to secure mounting screws even with the motherboard installed in the case. After mounting, verify that the fan spins correctly and that the cooler does not obstruct memory modules or other components.

Recommendations

For Intel LGA1151 (“Skylake”) CPUs we strongly recommend using the specially designed 1151 Support Spacer; contact the manufacturer to receive it free of charge. Ensure sufficient case airflow to achieve the cooler’s rated performance and follow motherboard manufacturer guidelines for mounting pressure to avoid damage.
