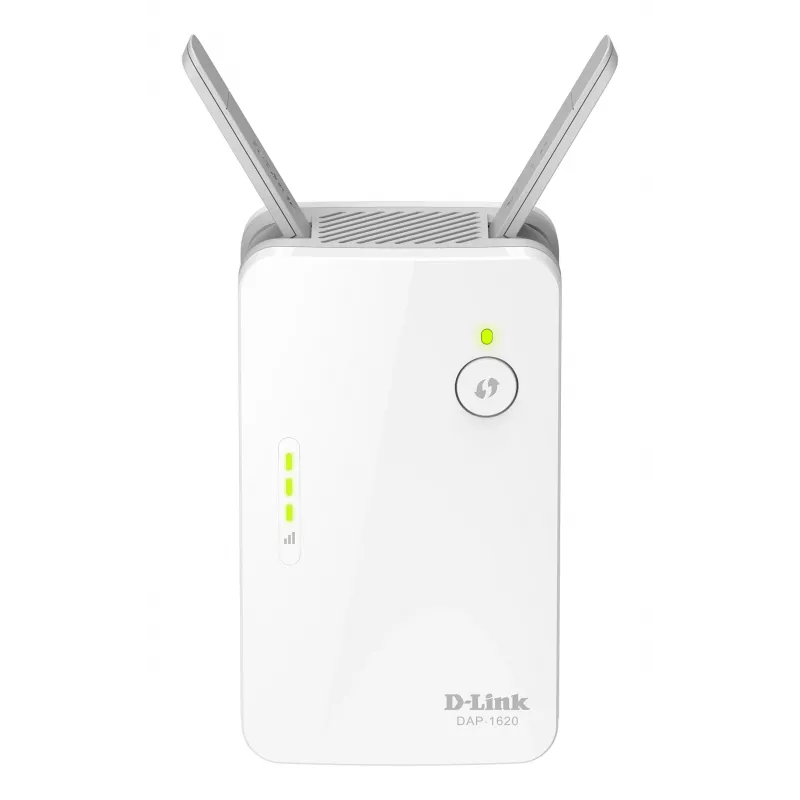

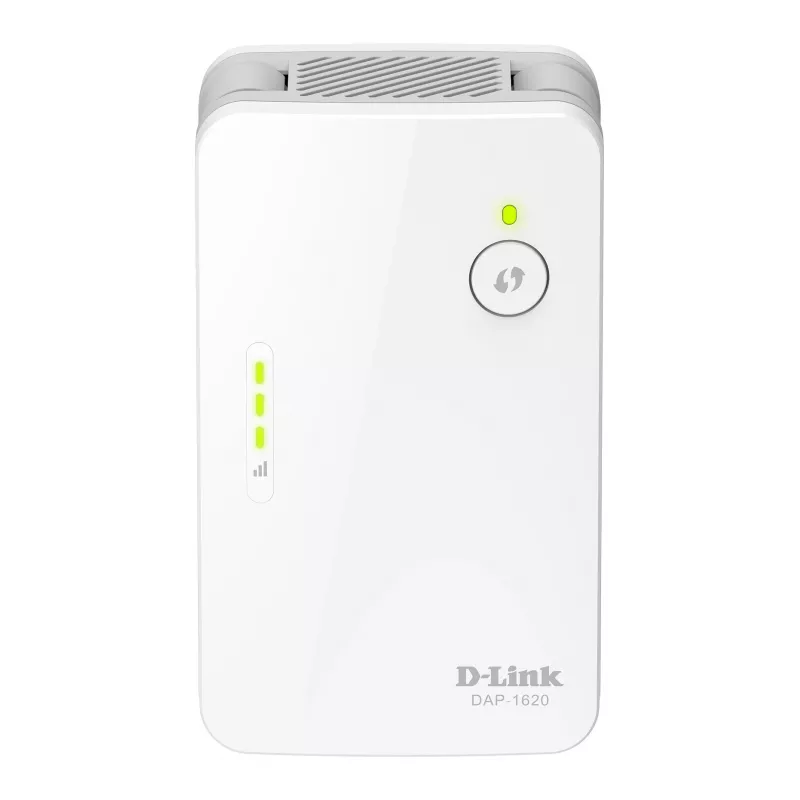

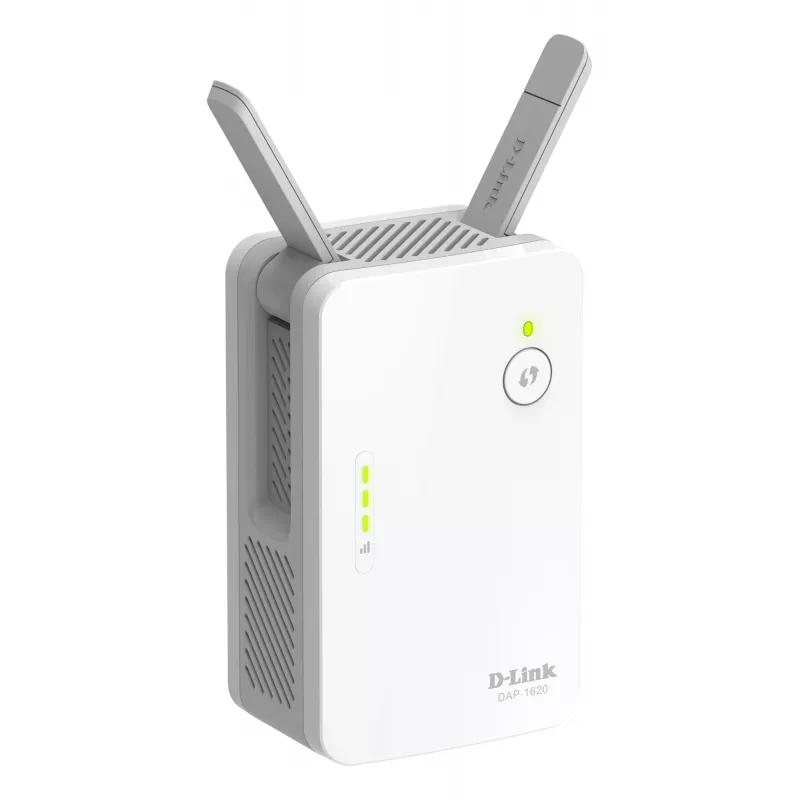

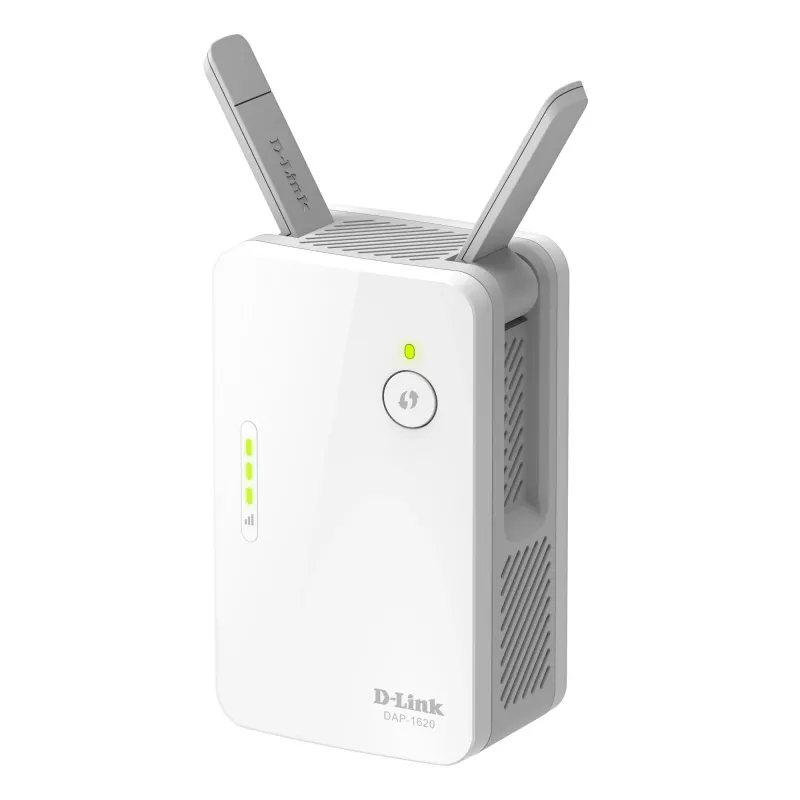

D-Link DAP-1620/E netwerk-repeater netwerkversterker wit

The D-Link DAP-1620/E AC1200 Wi‑Fi Range Extender is a compact plug‑in network repeater designed to increase the range of an existing wireless network. Supporting dual‑band Wireless AC with combined speeds up to 1200 Mbps and backward compatibility with 802.11a/b/g/n devices, the DAP-1620/E is suitable for home or small office use. Its wall‑plug form factor and built‑in Gigabit Ethernet port let you extend wireless coverage without additional cabling.

Advantages

The repeater provides dual‑band operation to reduce interference and maintain compatibility with older devices while delivering higher throughputs on the 5 GHz band. Setup can be completed without a PC using the QRS Mobile app or the built‑in setup wizard, and one‑touch WPS pairing offers quick automatic configuration. A bright signal indicator LED helps you find the optimal placement, and the compact, cord‑free design saves space and simplifies installation.

Suitable for

• Extending Wi‑Fi coverage in apartments and houses
• Improving wireless signal in small offices
• Connecting a single wired device via the Gigabit Ethernet LAN port

Key specifications

• Wireless standard: 802.11a/b/g/n/ac (AC1200)
• Maximum combined data rate: up to 1200 Mbps
• Ports: 1 × Gigabit Ethernet (RJ‑45)
• Power: plug‑in wall design, AC input 110–240 V
• Physical dimensions (approx.): 120 × 59 × 42 mm; weight: 0.139 kg
• Colour: White
• Certifications: CE, FCC, IC (manufacturer certified)

How to use

Plug the DAP-1620/E into a wall outlet within range of your existing router, then choose a setup method: run the QRS Mobile app on an iOS or Android device, use the web setup wizard from a PC or mobile browser, or press the WPS button on both the repeater and your router for automatic configuration. After setup, check the Signal Indicator LED and reposition the unit if necessary to achieve the best coverage. Optionally connect a wired device to the Gigabit Ethernet port to provide network access where Wi‑Fi is weak.

Recommendations

Place the repeater roughly halfway between your router and the area with weak signal, avoid locating it in enclosed metal cabinets or behind large appliances, and use the Signal Indicator LED to fine‑tune placement for optimal reception.
