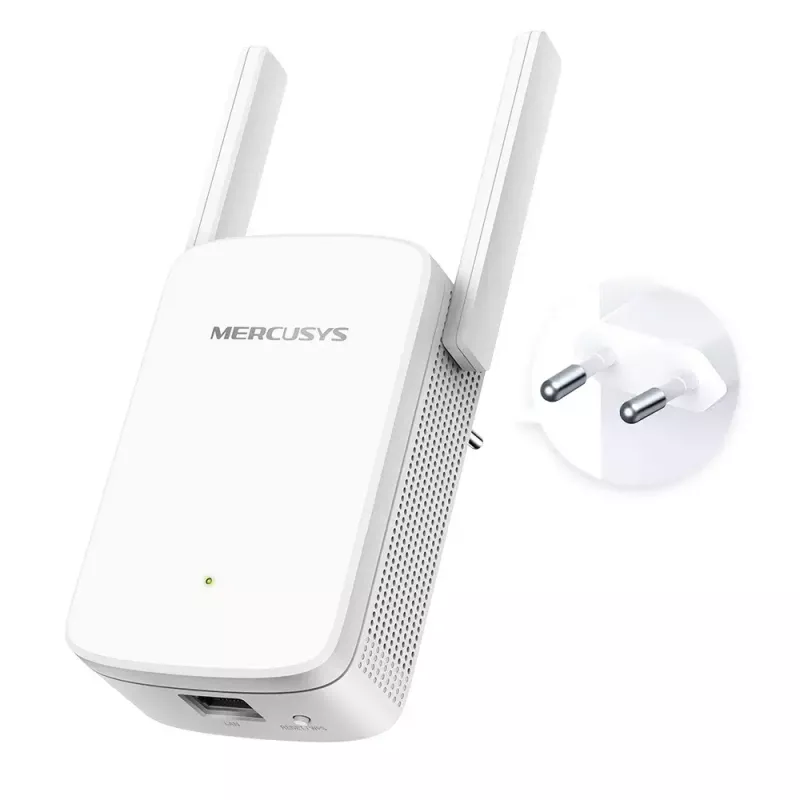

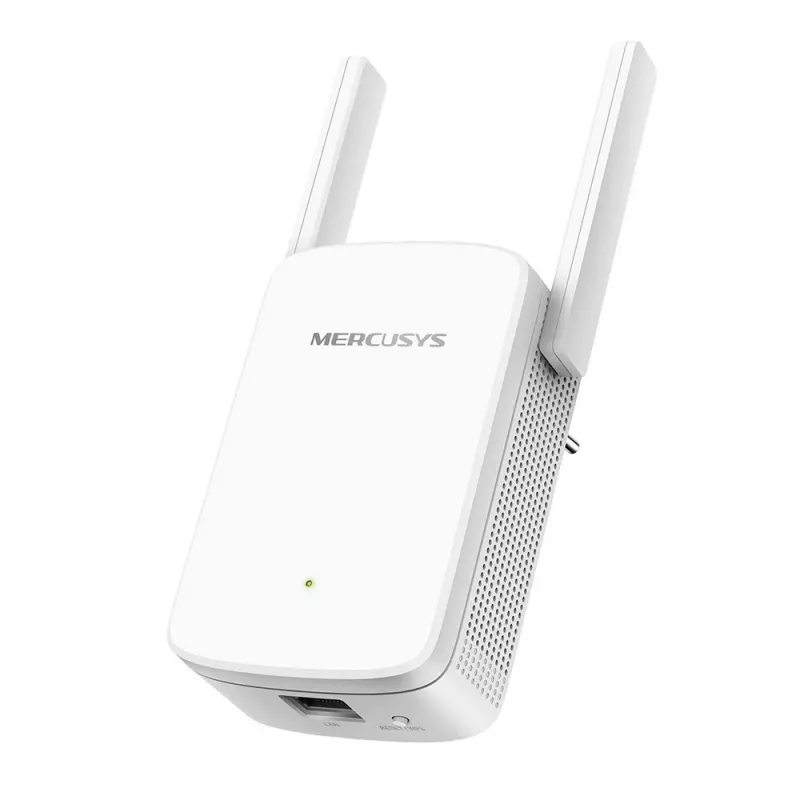

WLAN-bereikversterker MERCUSYS ME30 AC1200 — dualband 802.11b/g, 2 externe antennes, 1x RJ-45

The Mercusys AC1200 Wi-Fi Range Extender ME30 expands your existing wireless network to eliminate dead zones and deliver faster Wi‑Fi throughout your home. This wall-mounted, dual-band repeater supports up to 1200 Mbps combined throughput (867 Mbps on 5 GHz and 300 Mbps on 2.4 GHz) and includes external adjustable high‑gain antennas and a 10/100 Mbps Ethernet port to create a wired-to-Wi‑Fi access point when needed.

Advantages

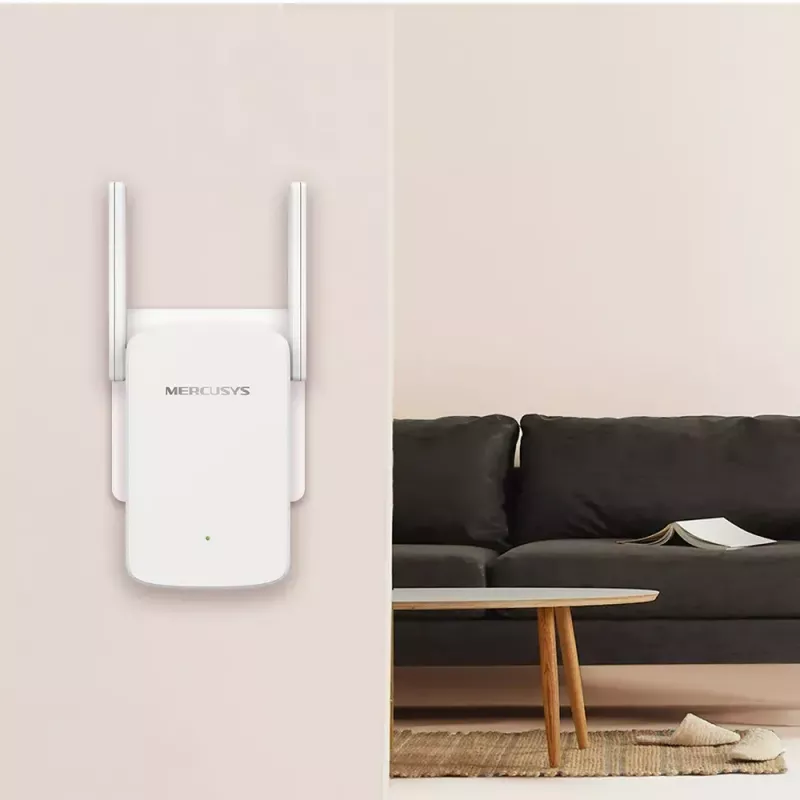

The ME30 provides dual‑band AC1200 speeds to support bandwidth‑demanding activities like 4K streaming and online gaming while adaptive path selection chooses the optimal band and route for your data. A multicolour LED signal indicator helps you position the unit for best coverage, and one‑touch WPS setup pairs the extender with your router in seconds. The device is wall‑mounted and compact, with modest power consumption and compatibility with common Wi‑Fi standards (802.11a/b/g/n/ac).

Suitable for

• Expanding home Wi‑Fi to bedrooms, living rooms and corners with weak signal
• Streaming 4K video and online gaming on dual‑band connections
• Providing wireless access from a wired internet line using the built‑in access point mode

Key specifications

• Model: Mercusys ME30 (AC1200)
• Wireless speeds: up to 867 Mbps (5 GHz) + 300 Mbps (2.4 GHz)
• Standards: 802.11a/b/g/n/ac
• Ethernet: 1 × 10/100 Mbps LAN (RJ‑45)
• Antennas: external adjustable high‑gain antennas
• Power consumption: typical 9.2 W
• Colour: White
• Certifications: CE, RoHS

How to use

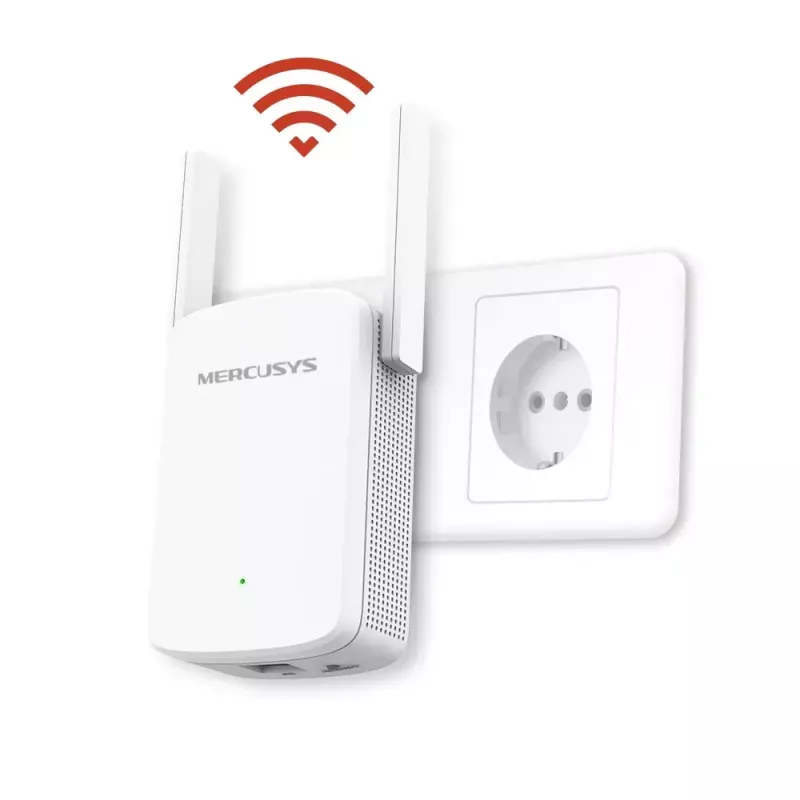

Plug the ME30 into a wall socket within the range of your router and press the WPS button on your router followed by the WPS button on the extender to complete automatic pairing. After successful connection, move the ME30 to a central location guided by the multicolour signal LED to achieve optimal coverage. To use as an access point, connect your modem or a wired network cable to the ME30’s Ethernet port and configure Wi‑Fi settings via the web interface or mobile setup page.

Recommendations

Place the extender roughly halfway between your router and the area with weak signal, avoid placing it near large metal objects or sources of interference, and ensure firmware is up to date for best performance.
