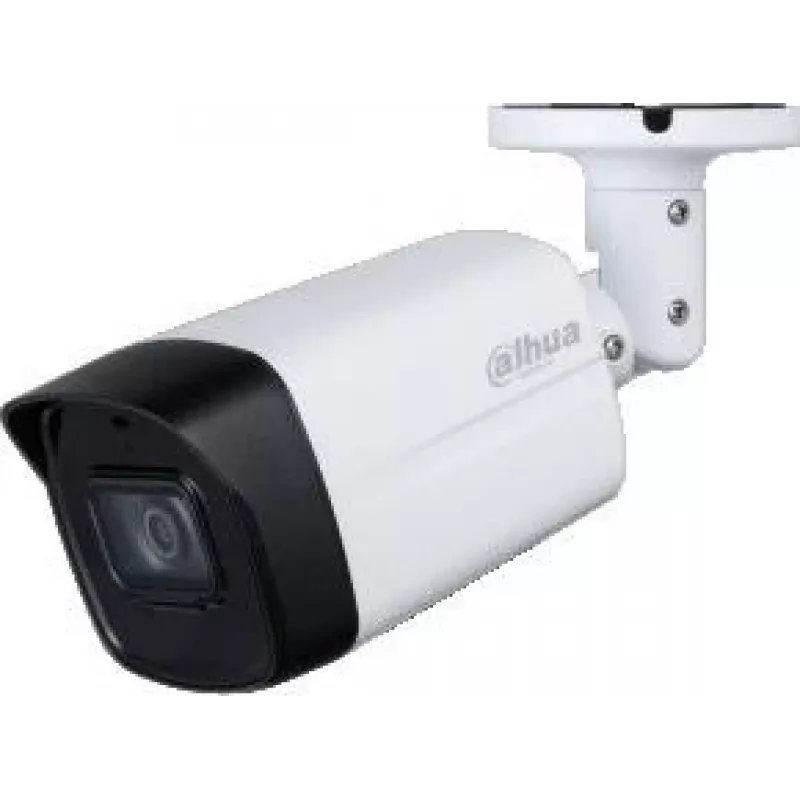

DAHUA HAC-HFW1500TLM-0280B-S3-DIP 5MP HDCVI bulletcamera, 2,8mm, IR 30m, IP67

The DAHUA HAC-HFW1500TLM-0280B-S3-DIP is a high-performance 5MP HDCVI bullet camera designed for outdoor surveillance. Featuring a 1/2.7" CMOS sensor and 2.8mm fixed lens, it delivers crisp 2880x1620 resolution at 20fps. With Smart IR up to 30m, IP67 weatherproof housing, and switchable video output (CVI/TVI/AHD/CVBS), this camera is ideal for demanding security applications.

Advantages

Exceptional 5MP resolution provides detailed images, while the 2.8mm wide-angle lens (111° horizontal FOV) covers large areas. The camera's DWDR and 2D NR enhance image quality in challenging lighting. Smart IR ensures clear night vision without overexposure. Rugged metal front cover and IP67 rating guarantee reliable operation in harsh environments.

Suitable for

• Outdoor perimeter surveillance
• Parking lots and entrances
• Warehouses and industrial sites
• Retail stores and offices

Key specifications

• Resolution: 5MP (2880x1620)
• Sensor: 1/2.7" CMOS
• Lens: 2.8mm fixed, F1.6
• Angle of View: 111° (H)
• IR Distance: Up to 30m (98ft)
• Video Output: CVI/TVI/AHD/CVBS switchable
• Minimum Illumination: 0.005 Lux (color), 0 Lux (IR)
• Day/Night: Auto (ICR) / Manual
• WDR: DWDR
• Noise Reduction: 2D NR
• Power: 12V DC ±30%, max 3.7W
• Ingress Protection: IP67
• Operating Temperature: -40°C to +60°C
• Housing: Metal front cover, plastic body

Recommendations

For optimal performance, use a regulated 12V DC power supply and ensure proper cable connections. This camera is compatible with DAHUA XVR series recorders. For extended IR range, consider models with higher IR power.
