Datalogic verbindingsmodule multi-interface RS-232 USB

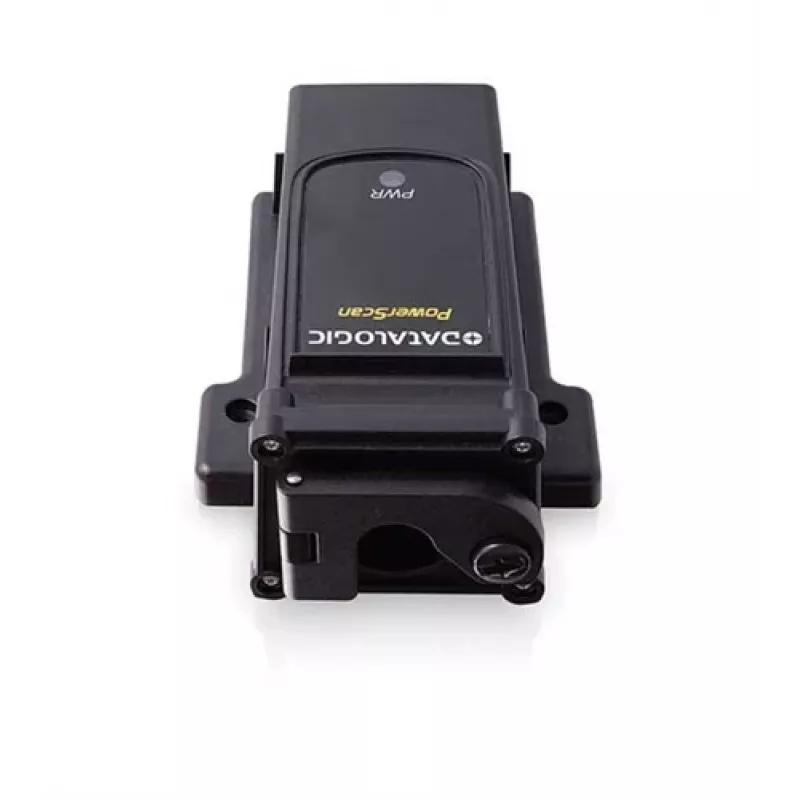

Connecting Datalogic scanners to a host system often requires juggling multiple cables and adapters, especially when switching between RS-232 and USB interfaces. The Datalogic CM9630 Connection Module solves this by providing a single, reliable bridge that supports both RS-232 and USB connectivity, ensuring seamless integration with your existing infrastructure.

Who is it for

This module is ideal for retail, warehouse, and logistics environments where Datalogic barcode scanners or data collectors are used with different host systems. It suits IT administrators and system integrators who need a flexible, plug-and-play solution for connecting scanners to PCs, POS terminals, or legacy equipment.

Main features

• Multi-interface support: RS-232 and USB connectivity for versatile host integration.
• Proprietary Datalogic connector for direct attachment to compatible scanners.
• USB 2.0 Full Speed (12 Mbps) for fast data transfer.
• RS-232 data rates up to 115.2 kbps for legacy systems.
• LED indicators for power and data transfer status.
• Durable ABS plastic housing in black/dark grey.
• Plug-and-play operation for USB; driver support for Windows, Linux, and macOS.
• Optional wall mounting for flexible installation.

Specifications

• Host interfaces: 1x USB Type B, 1x RS-232 (DB9 male)
• Device interface: Datalogic proprietary multi-pin connector
• Power: Host powered via USB; optional external power for RS-232 mode
• Operating temperature: 0°C to 50°C
• Storage temperature: -20°C to 70°C
• Humidity: 5% to 95% non-condensing
• Certifications: CE, FCC Class B, RoHS
• Housing material: ABS plastic
• Colour: Black/Dark Grey

Tips

For RS-232 operation, ensure an external power supply is connected if the host cannot provide sufficient power. Use high-quality USB or serial cables to maintain signal integrity. The module is compatible with a wide range of Datalogic scanners, including Gryphon, QuickScan, and Magellan series, making it a versatile addition to your scanning setup.
