DeLOCK 64339 Interne M.2-adapter Mini PCI Express stekker

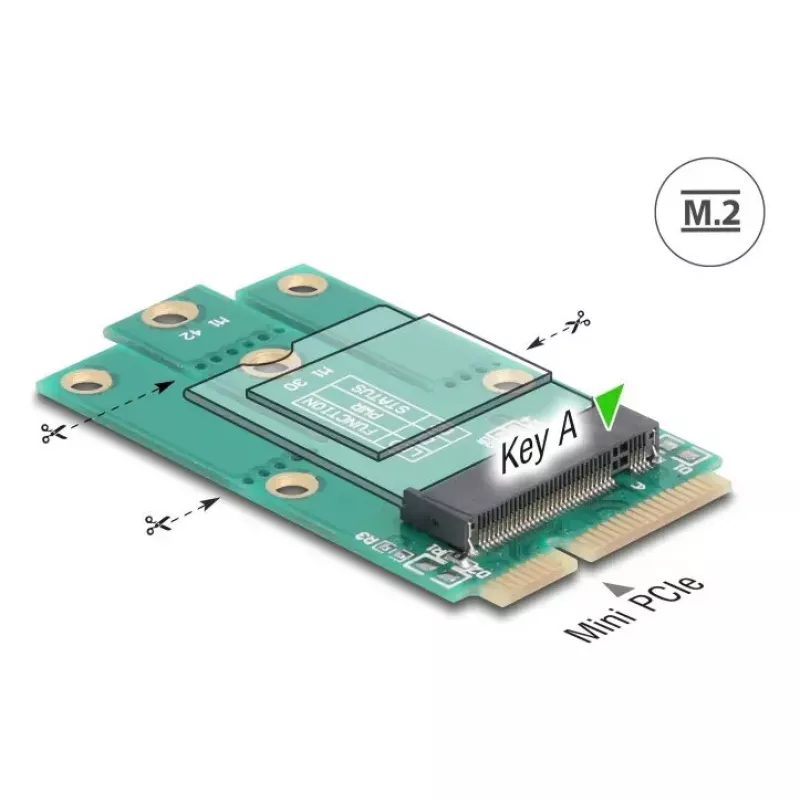

The DeLOCK 64339 Internal M.2 Adapter connects an M.2 module in 2242, 2230, 3042 or 3030 form factor to a system via a Mini PCI Express slot. It has a male Mini PCIe host interface and compact dimensions (30 mm × 54 mm × 4 mm), allowing installation inside compatible devices to expand storage or add M.2 functionality.

Advantages

The adapter supports multiple M.2 lengths through a predetermined breaking point that allows shortening from full size to half size. Its Mini PCIe male interface enables direct installation into Mini PCIe slots without additional cabling. Its slim profile and small footprint make it suitable for space-constrained systems.

Suitable for

• Adding an M.2 SSD or module to systems with a Mini PCIe slot
• Upgrading storage in compact desktops, embedded systems or industrial PCs
• Prototyping and testing M.2 modules on Mini PCIe-equipped motherboards

Key specifications

• Manufacturer: DELOCK
• Model / MPN: 64339
• EAN: 4043619643394
• Interface: Mini PCI Express (male)
• Supported M.2 sizes: 2242, 2230, 3042, 3030
• Dimensions: 30 mm (W) × 54 mm (D) × 4 mm (H)

How to use

Install the adapter into an available Mini PCIe slot on the host board using the male connector. Insert the compatible M.2 module into the M.2 slot on the adapter and secure it at the correct standoff position corresponding to the module length. If required, shorten the adapter at the predetermined breaking point to match a half-size mounting position before securing the module.

Recommendations

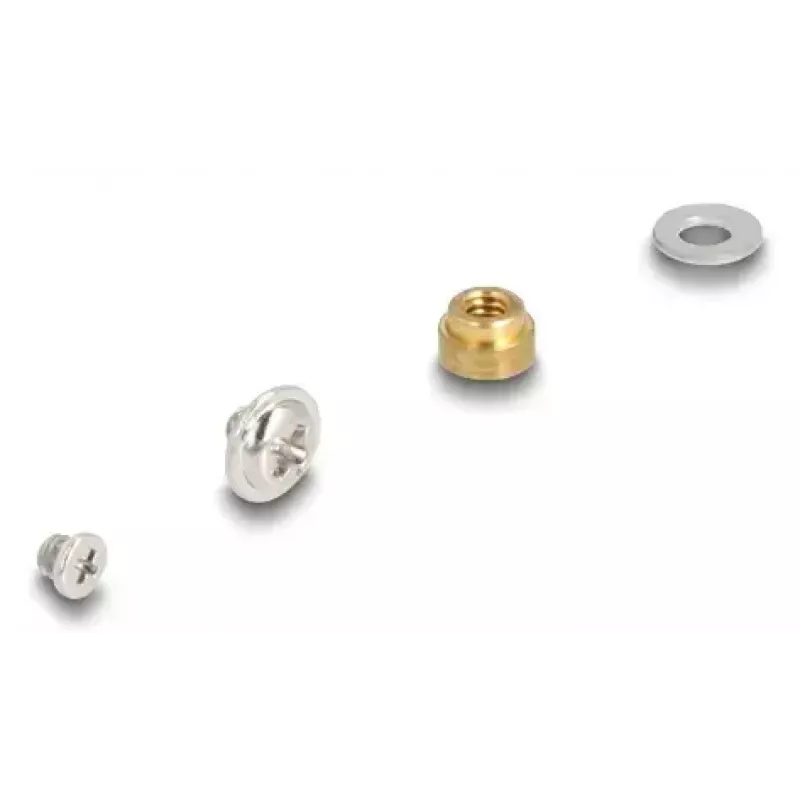

Ensure the host system supports the specific M.2 module type (e.g., SATA or NVMe, if applicable) and that BIOS/firmware settings permit use of M.2 devices via Mini PCIe. Handle the adapter and M.2 module with proper ESD precautions and verify mounting standoffs and screw sizes match the chosen M.2 length.
