Interfacekaart DeLOCK 62510 intern IDE/ATA

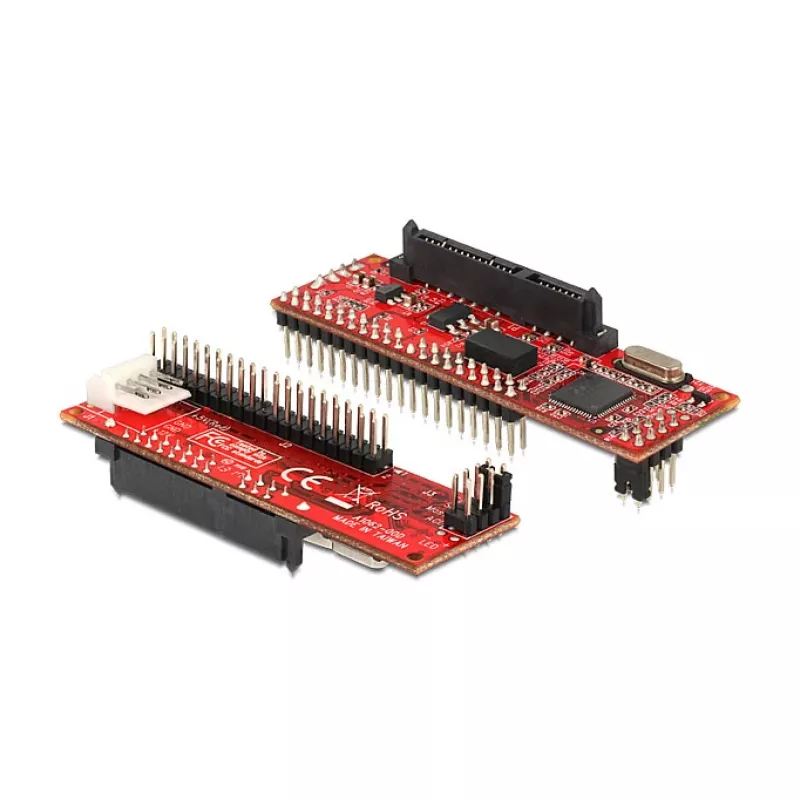

The DeLOCK 62510 Internal IDE/ATA interface card allows connection of an IDE/ATA device to a SATA host interface. Designed for internal installation, the compact card measures 75 mm × 23 mm × 21 mm and is available in black and red. It provides a simple solution for integrating legacy IDE devices into systems that offer SATA ports.

Advantages

The card converts a SATA host interface to an IDE/ATA output, enabling use of older drives and devices without modifying the host system. Its compact dimensions suit small form-factor builds and internal installations. Two colour options (black and red) permit aesthetic matching with different system setups.

Suitable for

• Connecting IDE/ATA hard drives or optical drives to a SATA-equipped motherboard or controller
• Upgrading systems that require legacy device support
• Small form-factor PC builds where internal space is limited

Key specifications

• Host interface: SATA
• Output interface: IDE/ATA
• Installation: Internal
• Dimensions: 75 mm (W) × 23 mm (D) × 21 mm (H)
• Product colours: Black, Red

How to use

Install the DeLOCK 62510 inside the computer chassis and connect its SATA connector to an available SATA port on the motherboard or SATA controller. Attach the IDE/ATA device to the card’s IDE connector using the appropriate ribbon cable and ensure all power connections to the IDE device are made. Power on the system and verify device recognition in the BIOS/UEFI or operating system storage management tools.

Recommendations

Use compatible IDE/ATA ribbon cables and ensure the IDE device receives proper power (Molex or other applicable connector). Check BIOS/UEFI settings for legacy or IDE support if the device is not immediately detected. Avoid forcing connectors; align pins carefully during installation.
