Interne SATA-adapter DeLOCK 90348

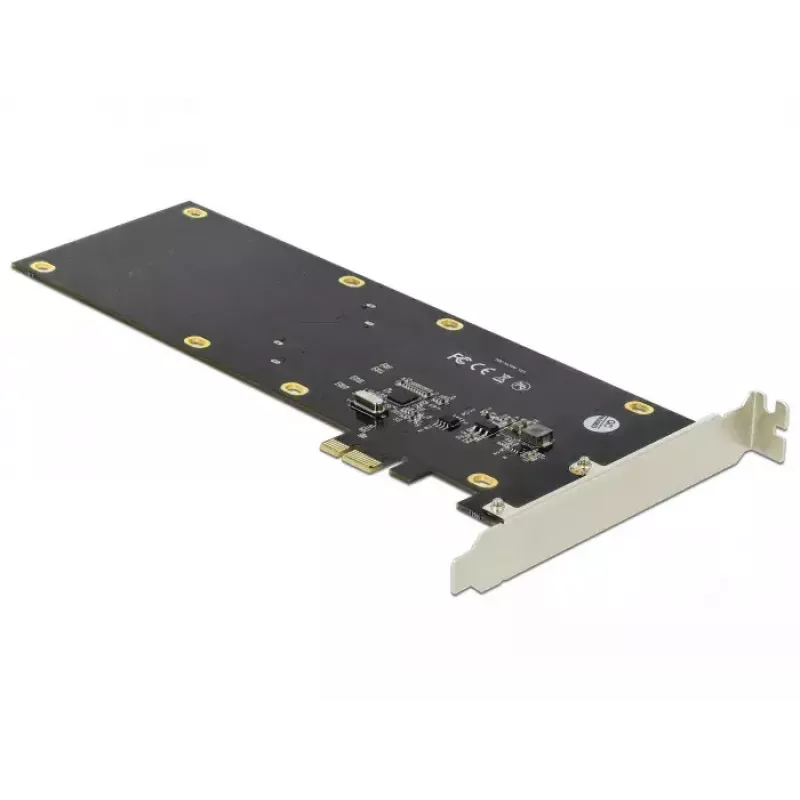

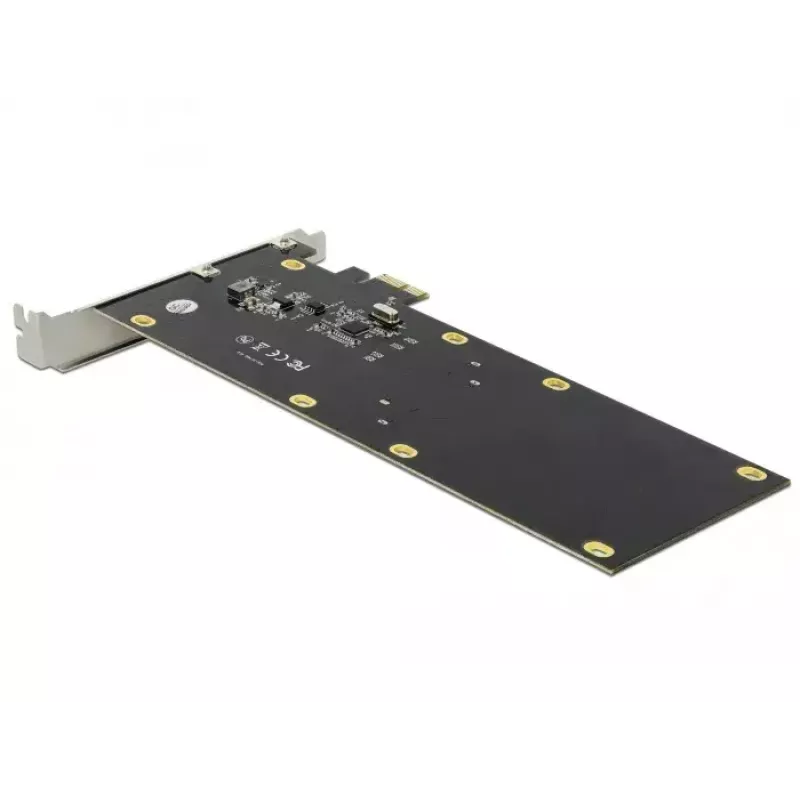

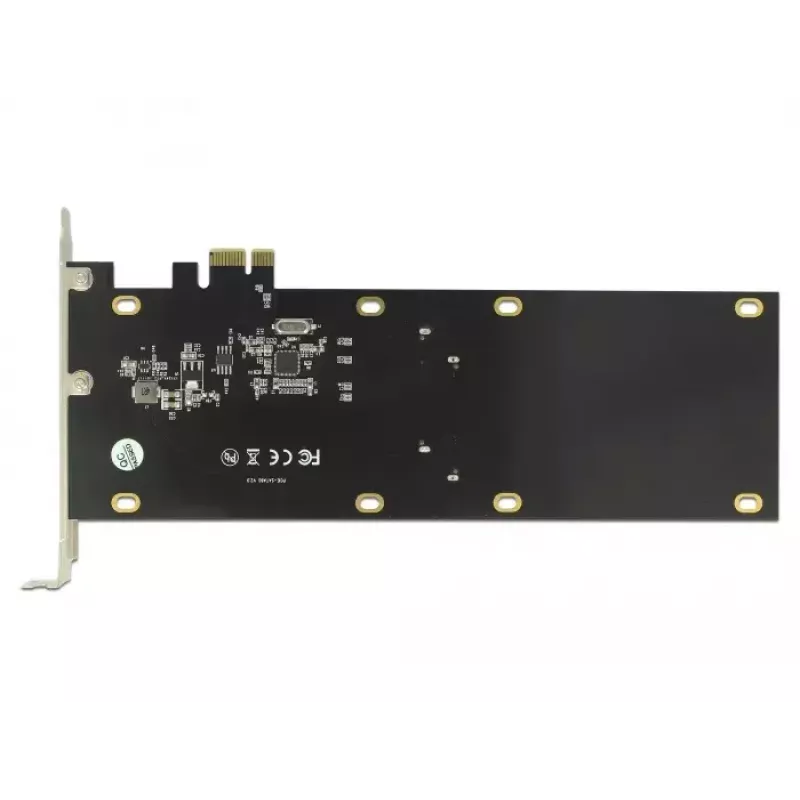

The DeLOCK 90348 is an internal SATA adapter that adds two 22‑pin SATA ports via a PCIe x1 card, enabling connection of up to two 2.5" SSDs or HDDs. The card uses a PCIe 2.0 host interface with a maximum data transfer rate of 6 Gbit/s and is compatible with Windows 7, 8, 8.1 and 10. Its compact dimensions make it suitable for installation in standard desktop systems where additional internal SATA connections are required.

Advantages

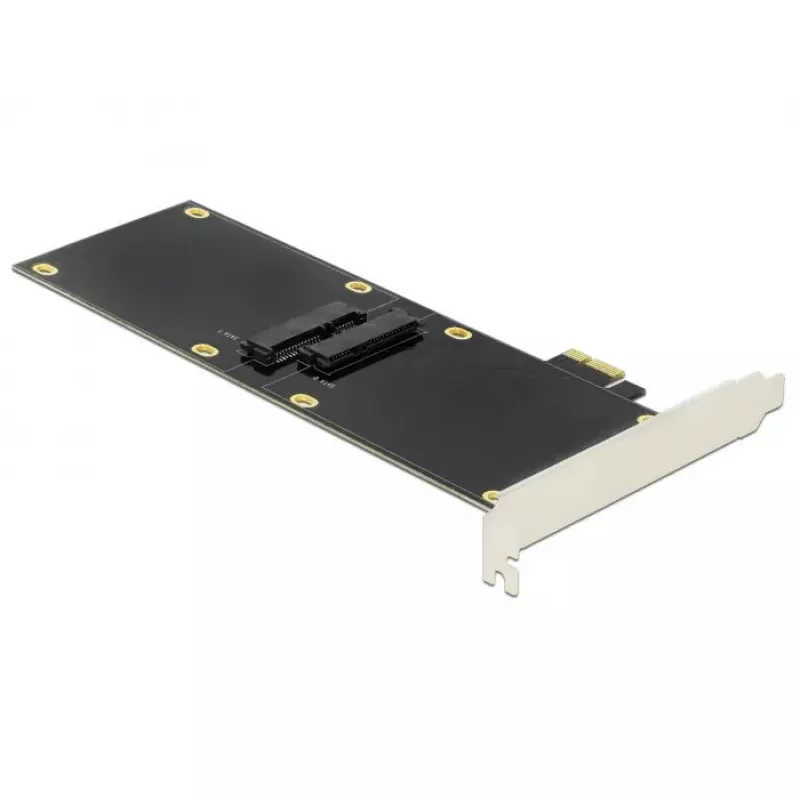

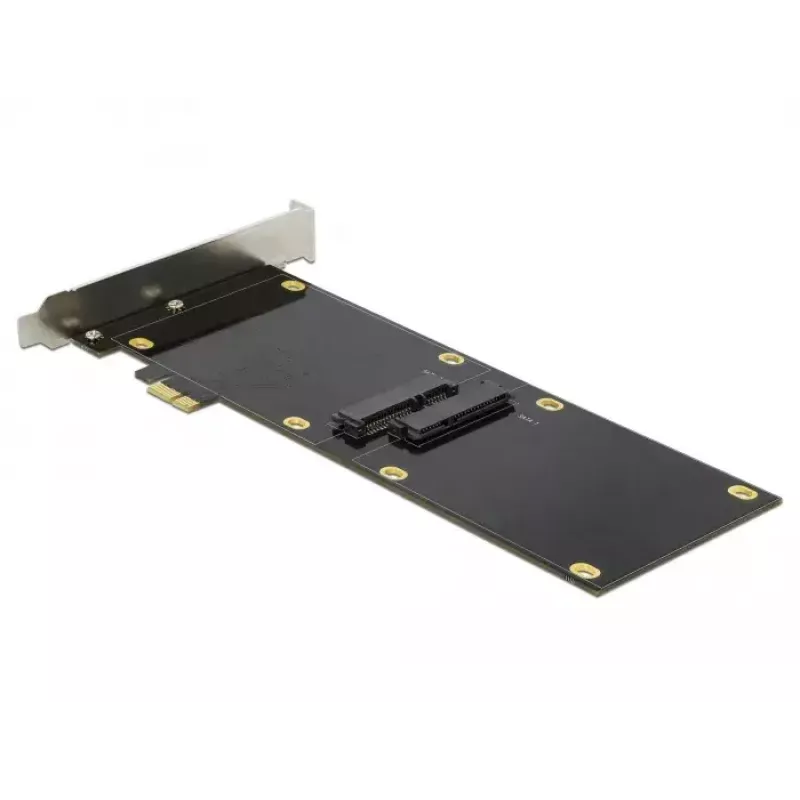

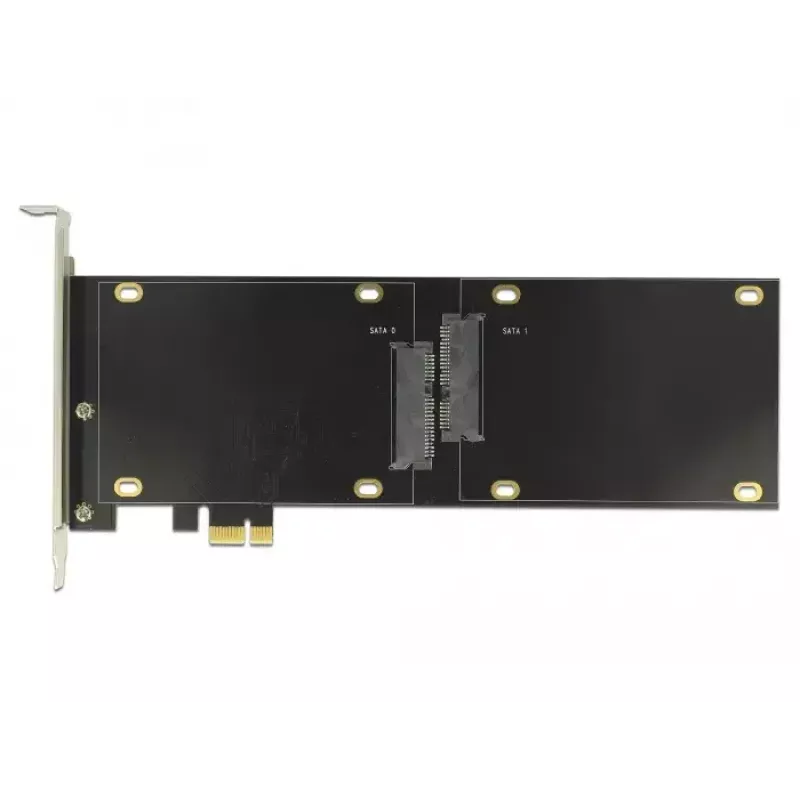

This PCI Express adapter provides two internal SATA 22‑pin ports on one expansion card, allowing single‑sided mounting of two 2.5" drives one after the other. The card supports PCIe 2.0 and achieves up to 6 Gbit/s transfer speed, is plug‑in compatible with common Windows versions and has a low‑profile form factor suitable for most PC cases.

Suitable for

Key specifications

How to use

Power off the PC and unplug it from the mains. Insert the DeLOCK 90348 card into an available PCIe x1 (or larger) slot on the motherboard and secure it with the slot screw. Connect up to two 2.5" SSDs or HDDs to the card's SATA 22‑pin ports using appropriate SATA data/power connections inside the case. Reconnect power, boot the system and configure drives in the operating system or BIOS/UEFI as required.

Recommendations

Install the card in a free PCIe x1 slot (a larger PCIe slot is also compatible) and ensure proper airflow around mounted drives. Use the supported Windows versions for driver compatibility and verify the motherboard BIOS/UEFI recognizes additional SATA devices after installation.
