DIGITUS USB-printserver, 1-poort 1x RJ45, 1x USB A, USB 2.0 voor alle gangbare besturingssystemen

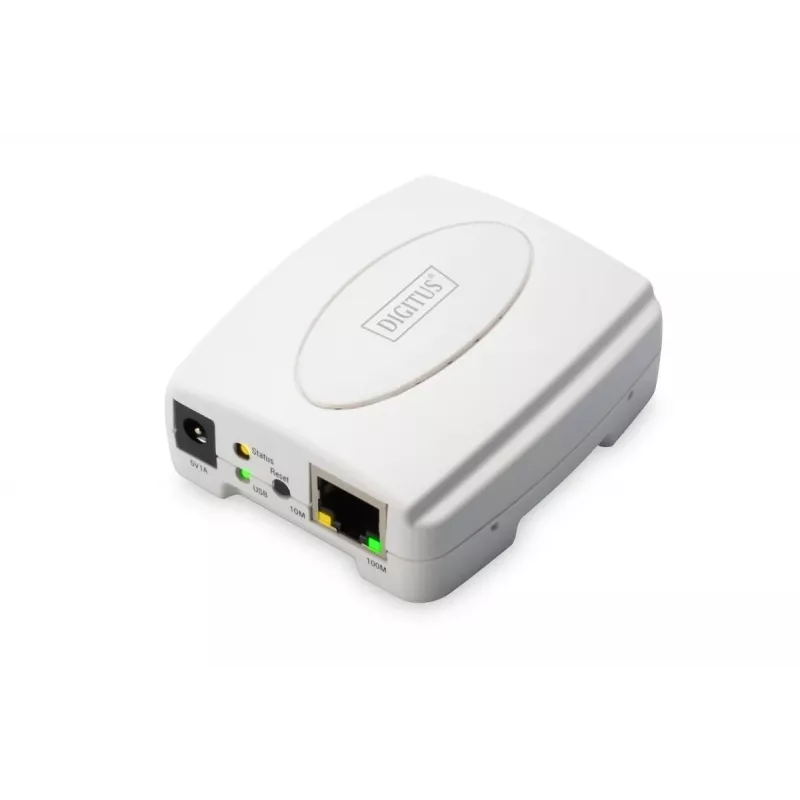

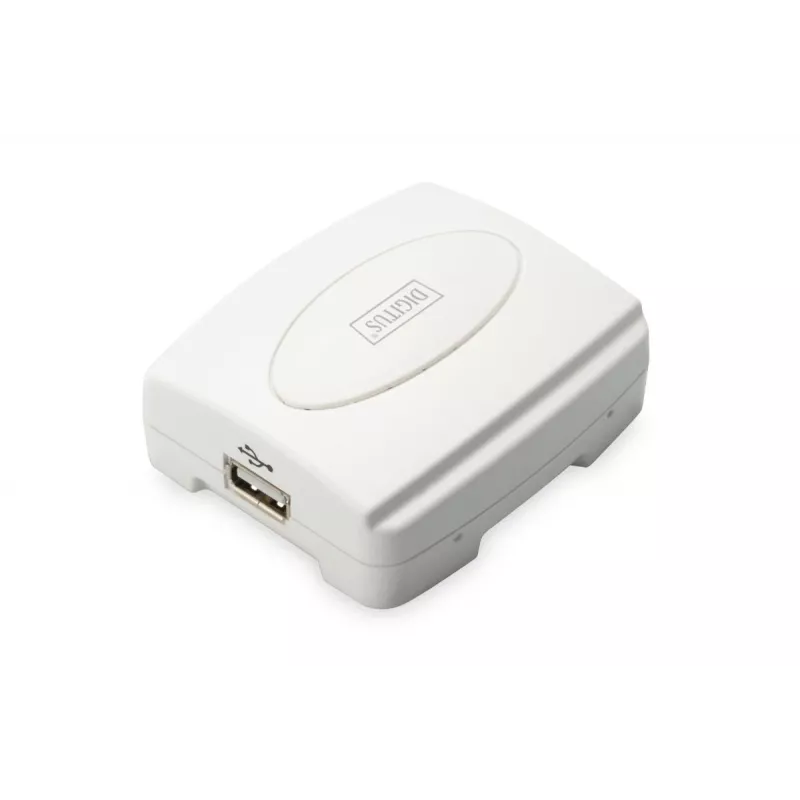

The Digitus DN-13003-2 Fast Ethernet Print Server converts a USB printer into a shared network printer, allowing multiple users on the same Ethernet LAN to access one device. It supports 10/100 Mbit/s Ethernet speeds and common network protocols including TCP/IP and AppleTalk, and is compatible with Windows, macOS and Linux. The compact white unit provides web-based management, a Windows configuration utility and SNMP support for administration.

Advantages

Provides a simple method to share a USB 2.0 printer over an Ethernet LAN without a dedicated print server PC. Supports both peer-to-peer and server-based printing, standard networking protocols (TCP/IP, IPX/SPX, NetBEUI, AppleTalk) and IEEE 802.3 / 802.3u. Offers fast Ethernet throughput (10/100 Mbit/s), a single USB port for printer connection and web and utility-based configuration for straightforward setup and diagnostics.

Suitable for

• Small offices that need to share one USB printer among multiple PCs
• Home users who want network access to a local USB printer
• Environments requiring compatibility with Windows, macOS or Linux

Key specifications

• Model: Digitus DN-13003-2
• Network connection type: Ethernet LAN (RJ-45), 10/100 Mbit/s
• USB: 1 × USB 2.0 port for printer
• Supported network protocols: TCP/IP, IPX/SPX, NetBEUI, AppleTalk
• Management: Web-based management, Windows configuration utility, SNMP
• Networking standards: IEEE 802.3, IEEE 802.3u
• Colour: White

How to use

Connect the print server to the network via the RJ-45 Ethernet port and attach the USB printer to the USB 2.0 port. Power the device and install the provided Windows configuration utility or use the web-based interface to assign network settings and add the shared printer on client computers. Follow on-screen instructions to install printer drivers on each workstation when prompted.

Recommendations

For reliable operation, place the print server on a stable surface near the printer and a network outlet. Keep firmware and configuration utilities up to date and ensure client PCs use compatible printer drivers. Use a CAT5e or better Ethernet cable for 100 Mbit/s connections.
